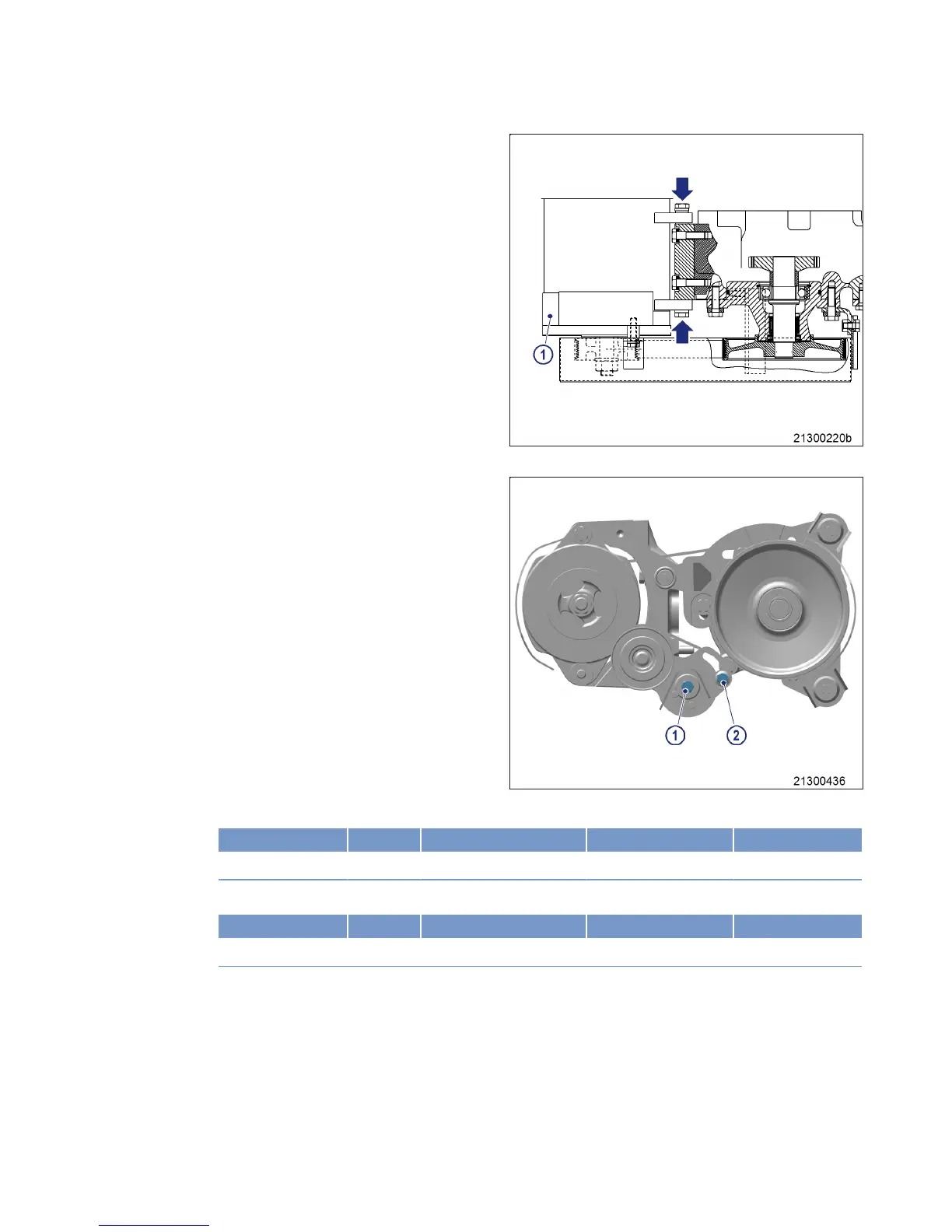

8. Unscrew bolts (arrowed).
9. Remove alternator (1).
10. Clean alternator (1) thoroughly
(→ Page 142).
11. Refit alternator (1) in reverse order of re-
moval.
Tensioning drive belt
1. Fit drive belt.
2. Slacken bolt (2) by half a turn.
Result: Belt tensioner moves against the drive belt
and tensions it.
3. Tighten bolt (2) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Screw M10 Tightening torque 60 Nm +5 Nm
4. Tighten bolt (1) to specified tightening torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Screw M10 Tightening torque 60 Nm +5 Nm
5. Refit protective cover.
6. Readjust belt tension after 30 minutes and again after engine has been running for 8 hours
(→ Page 143).
