3. Turn crankshaft to bring cylinder A1 to TDC
position.
4. Check the threads on both sides of the fly-
wheel (1) for ease of movement.

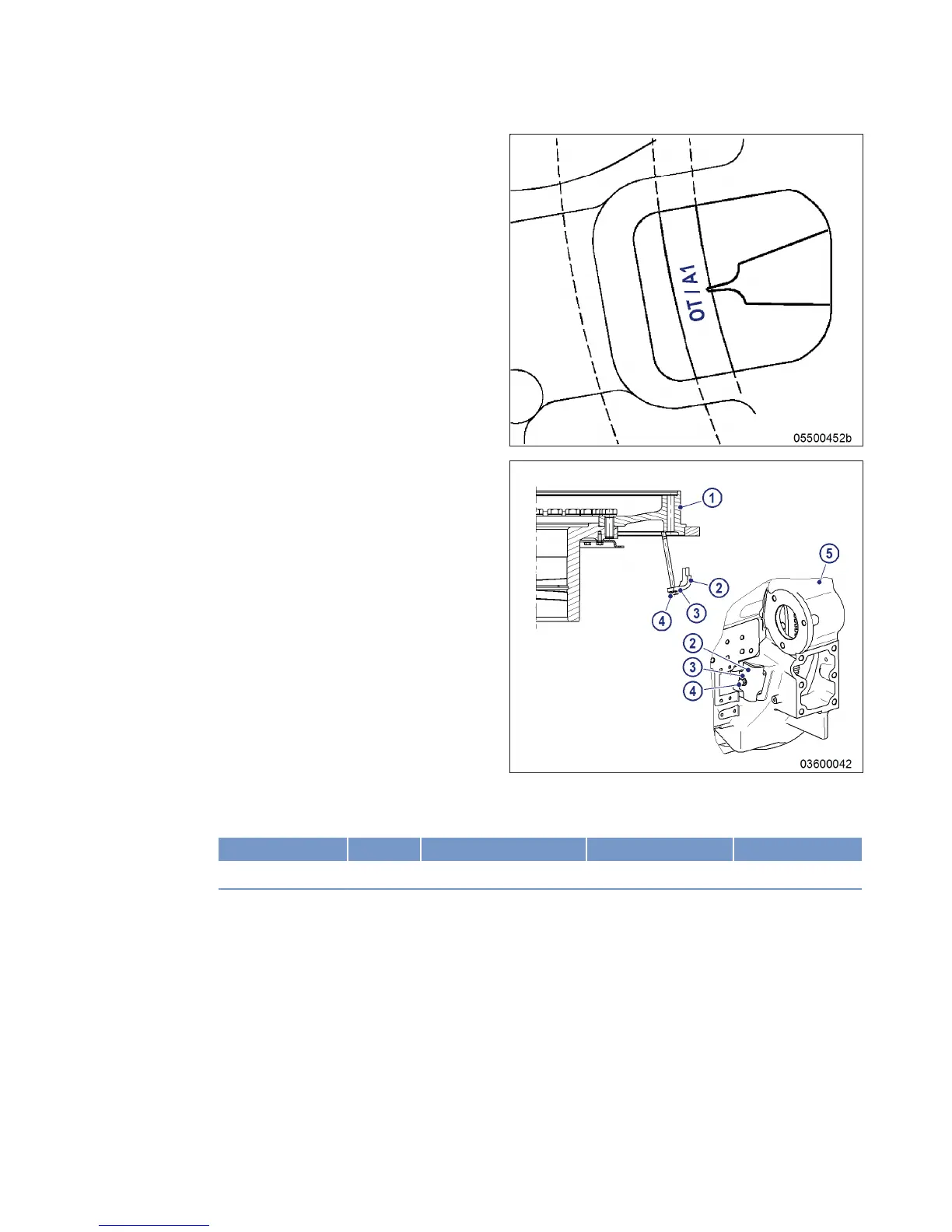

5. Fit retainer (2) together with screw (4) and
washer (3) through the opening in the fly-
wheel housing (5).
Note: Tighten screw (4) in three steps.
6. Tighten screw (4) on each side alternately to specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M10 Tightening torque (Engine oil) 50 Nm +5 Nm
