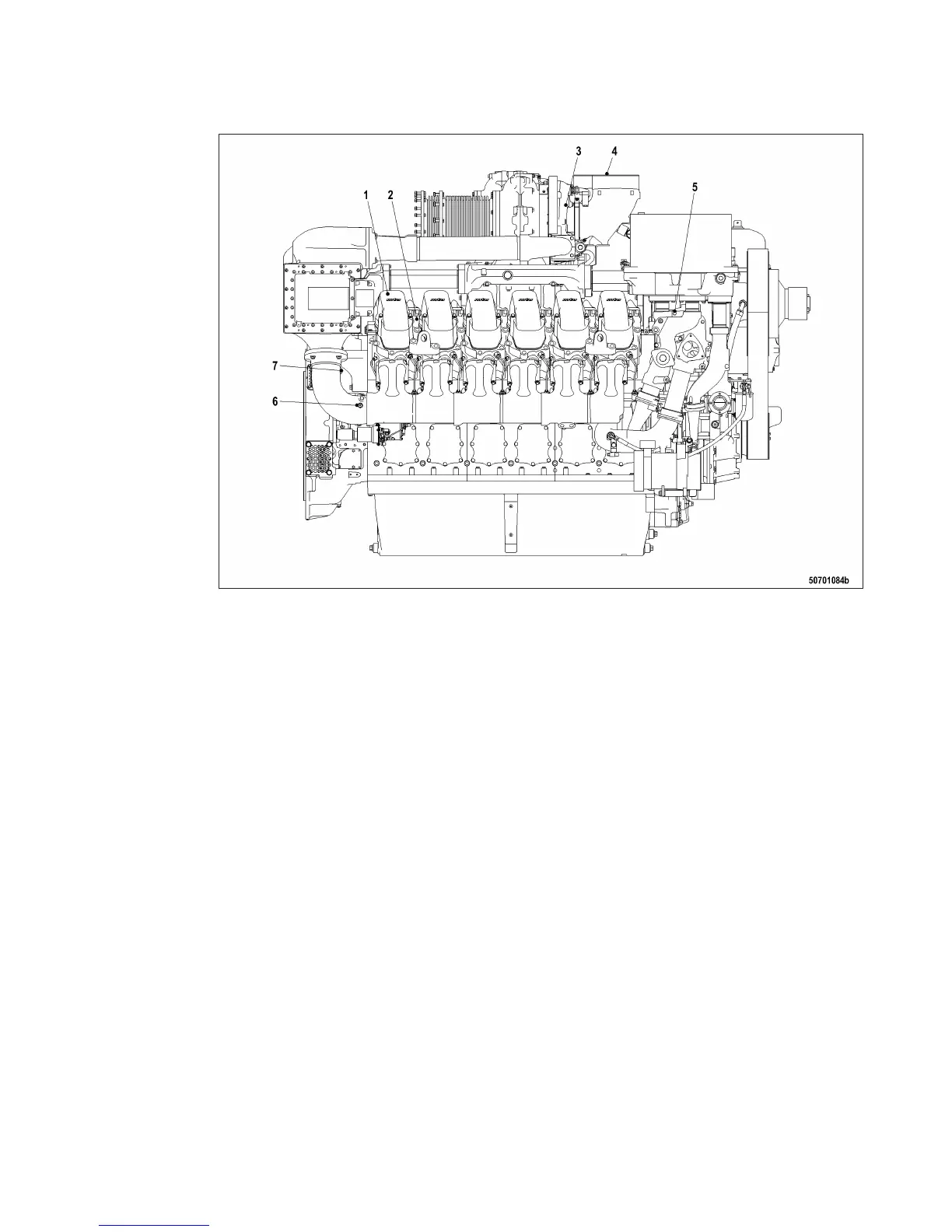

1 Injectors Y39.11 to
Y39.16 (B-bank)
2 Sensors for cylinder ex-
haust temperature B4.11
through B4.18 (B-bank)
(optional only for 16 V)
3 B44 (turbocharger speed)
4 B03 (intake air tempera-
ture)
5 B16 (coolant pressure)
6 B10 (charge-air pressure)
7 B09 (charge-air tempera-
ture)
The injectors are underneath the cylinder head covers of the cylinder. Injector replacement and neces-
sary activities (→ Page 97).
