User Manual
(Wave
zoom
Main
Extension
Measure in the main window.
Measure in the extension window.
Line
b
ab
Turn the M rotary control to move line a.
Turn the M rotary control to move line b.
Two cursors are linked. Turn the M rotary control
to move the pair of cursors.
Source
Display the channel to which the cursor
measurement will be applied.
Perform the following operation steps for the time and voltage cursor measurement of
the channel CH1:
1. Push Cursor to display the cursor menu.
2. In the right menu, select Source as CH1.
3. Press the first menu item in the right menu, select Time&Voltage for Type, two
blue dotted lines displayed along the horizontal direction of the screen, two blue
dotted lines displayed along the vertical direction of the screen. Cursor measure
window at the left bottom of the screen shows the cursor readout.
4. In the right menu, select Line Type as Time to make the vertical cursors active.
If the Line in the right menu is select as a, turn the M rotary control to move line
a to the right or left. If b is selected, turn the M rotary control to move line b.
5. In the right menu, select Line Type as Voltage to make the horizontal cursors
active. Select Line in the right menu as a or b, turn the M rotary control to move
it.
6. Push the horizontal HOR button to enter wave zoom mode. Push Cursor to show
the right menu, select Window as Main or Extension to make the cursors shown
in the main window or zoom window.

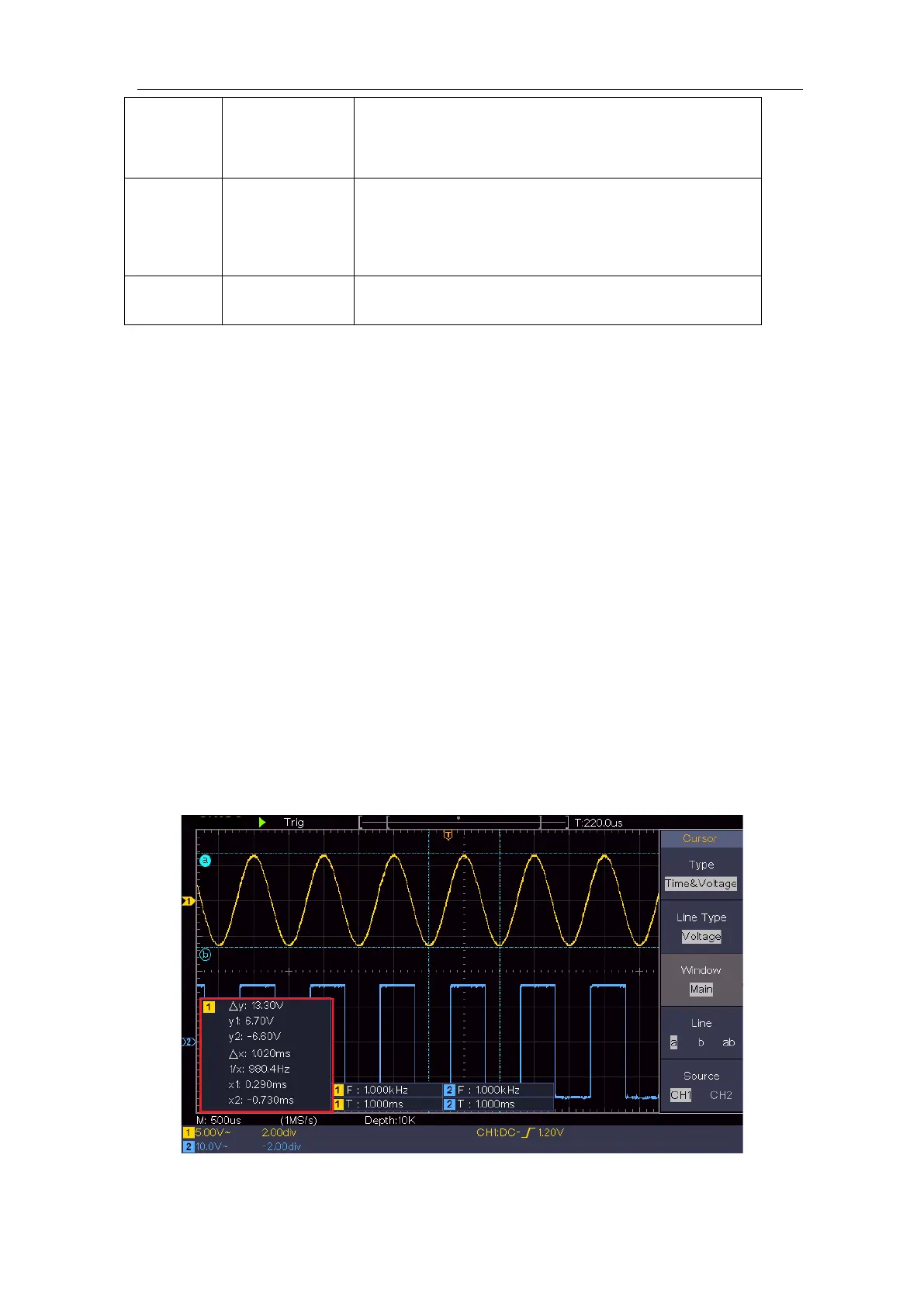

Figure 4-15 Time&Voltage Cursor Measurement
