User Manual
43

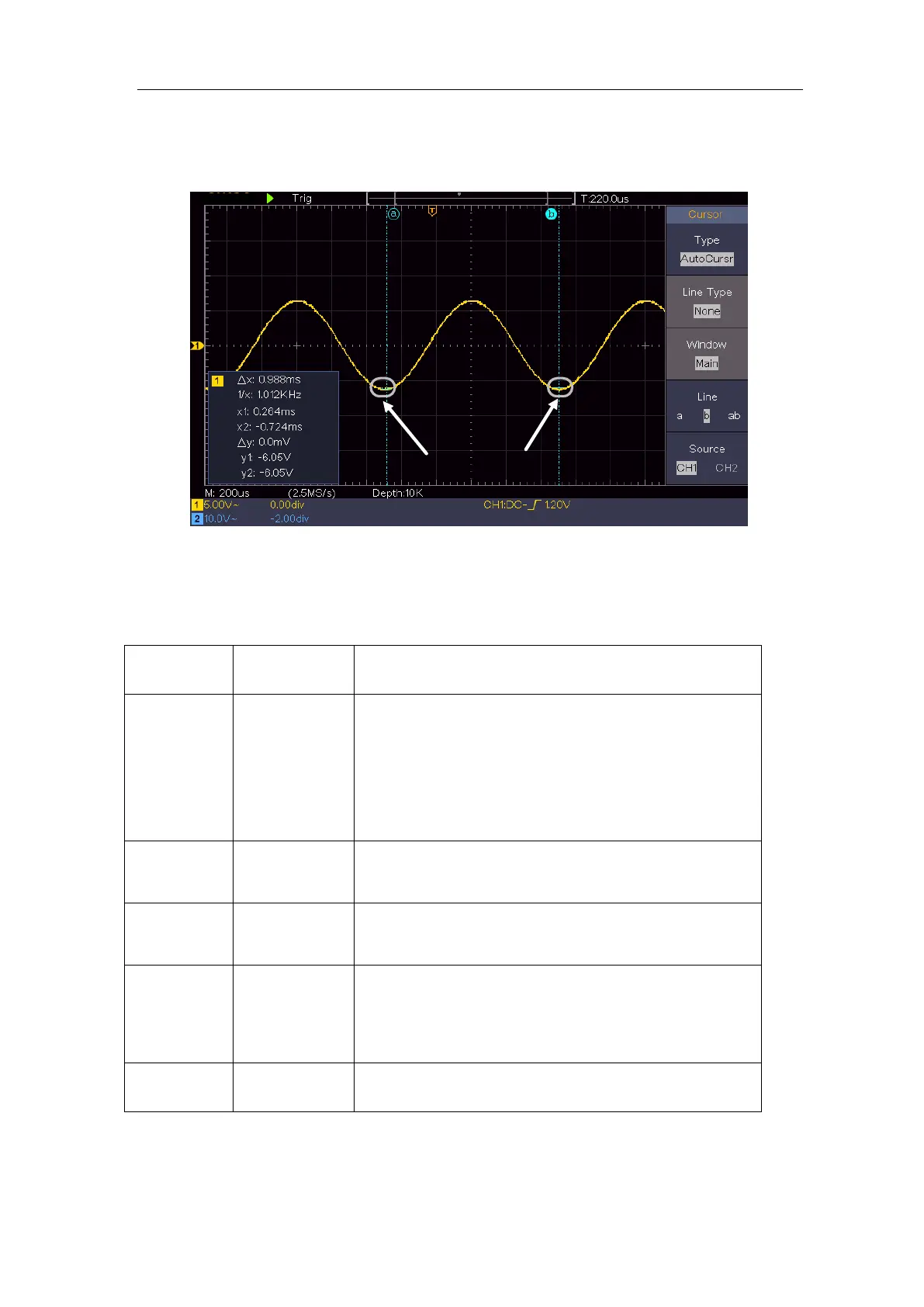

Auto Cursor
For the AutoCursr type, the horizontal cursors are set as the intersections of the vertical
cursors and the waveform.
Auto Cursor
The Cursor Measurement for FFT mode
In FFT mode, push the Cursor button to turn cursors on and display the cursor menu.
The description of the cursor menu in FFT mode is shown as the following table:
Function
Menu
Setting Description
Type
Vamp
Freq
Freq&Vamp
AutoCursr
Display the Vamp measurement cursor and menu.
Display the Freq measurement cursor and menu.
Display the Freq and Vamp
measurement cursor
and menu.
The horizontal cursors are set as the intersections of
the vertical cursors and the waveform
Line Type
(Freq&Vamp
type)
Freq
Vamp
Makes the vertical cursors active.
Makes the horizontal cursors active.
Window
(Wave zoom
mode)
Main
Extension
Measure in the main window.
Measure in the FFT extension window.
Line
a
b
ab
Turn the M rotary control to move line a.
Turn the M rotary control to move line b.
Two cursors are linked. Turn the M rotary control
to move the pair of cursors.
Source Math FFT
Display the channel to which the cursor
measurement will be applied.
Perform the following operation steps for the amplitude and frequency cursor
measurement of math FFT:
