6.Use the Multimeter (MP720106)
Hold ON OFF Freeze the display during measurement.
Configure
Relative
When making relative measurements, reading is the
difference between a stored reference value and the
input signal.
Show Info
ON OFF
Show/Hide the information window
Auto Range Select auto range mode
Switch Range Select manual range mode, press to switch range
Current
mA 10A
(Only for current
measurement)
Select the current range.
DMM Information Window
The Multimeter Information Window is displayed on the top right of the screen.

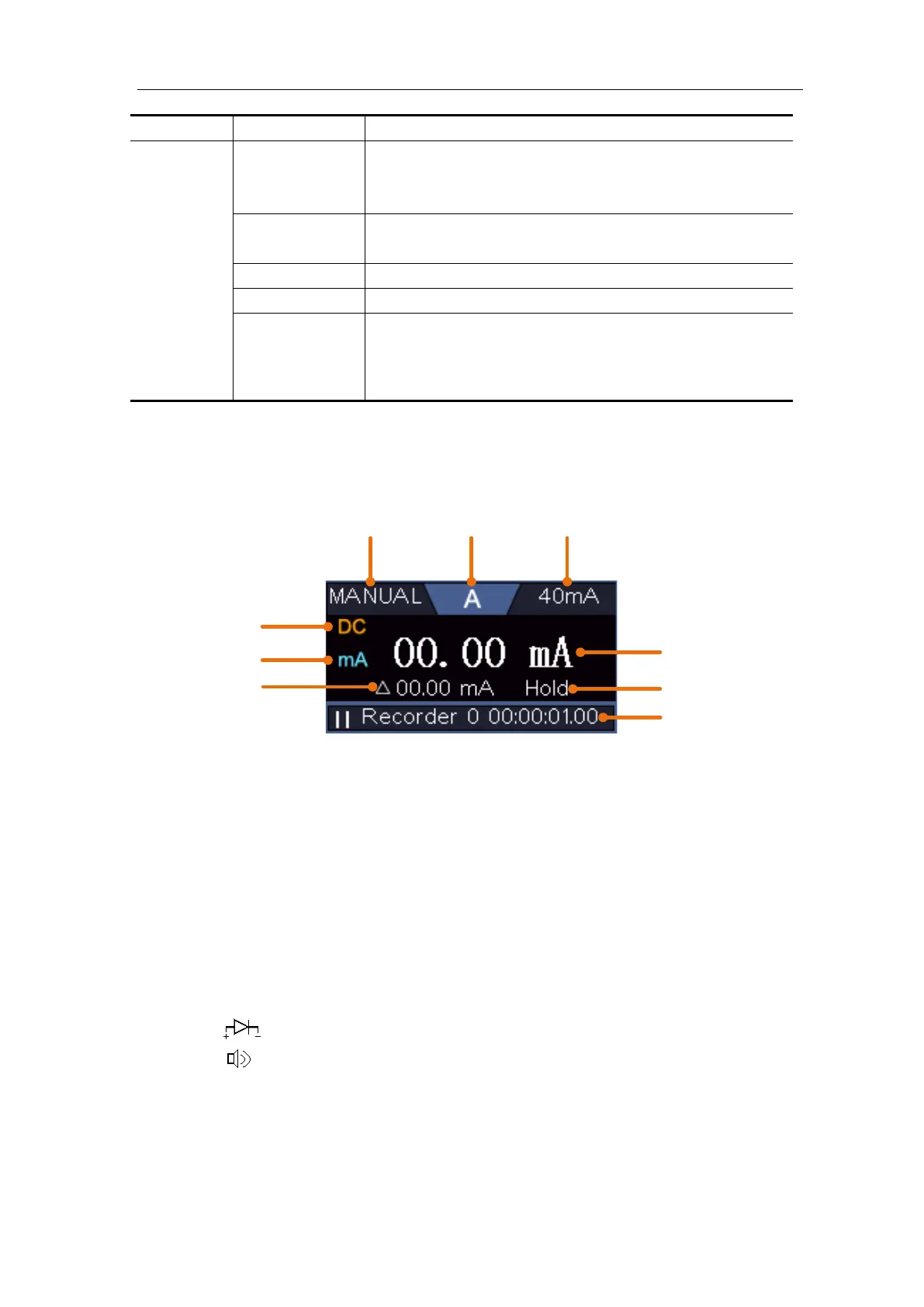

Figure 6-3 Multimeter Information Window
Description
1. Manual/Auto range indicators, MANUAL refers to the measuring range in manual
operation mode and AUTO refers to the measuring range in automatic operation
mode.
2. Measurement mode indicators:
A ------ Current measurement
V ------ Voltage measurement
R ------
Resistance measurement
------
Diode measurement
------
Continuity test
C ------
Capacitance measurement
3. Range.
4. Measurement display ("OL" is short for overload, indicates the reading exceeds the
display range)
108
