3.Junior User Guidebook
Click to increase
the voltage division of CH1
Click to decrease
the voltage division of CH1
Click to decrease
the time base of
Zoom Window
Click to increase
the time base of
Zoom Window
Click to increase
the voltage division of CH2
Click to decrease
the voltage division of CH2
(Single Zoom)
Other Operations Using Touchscreen

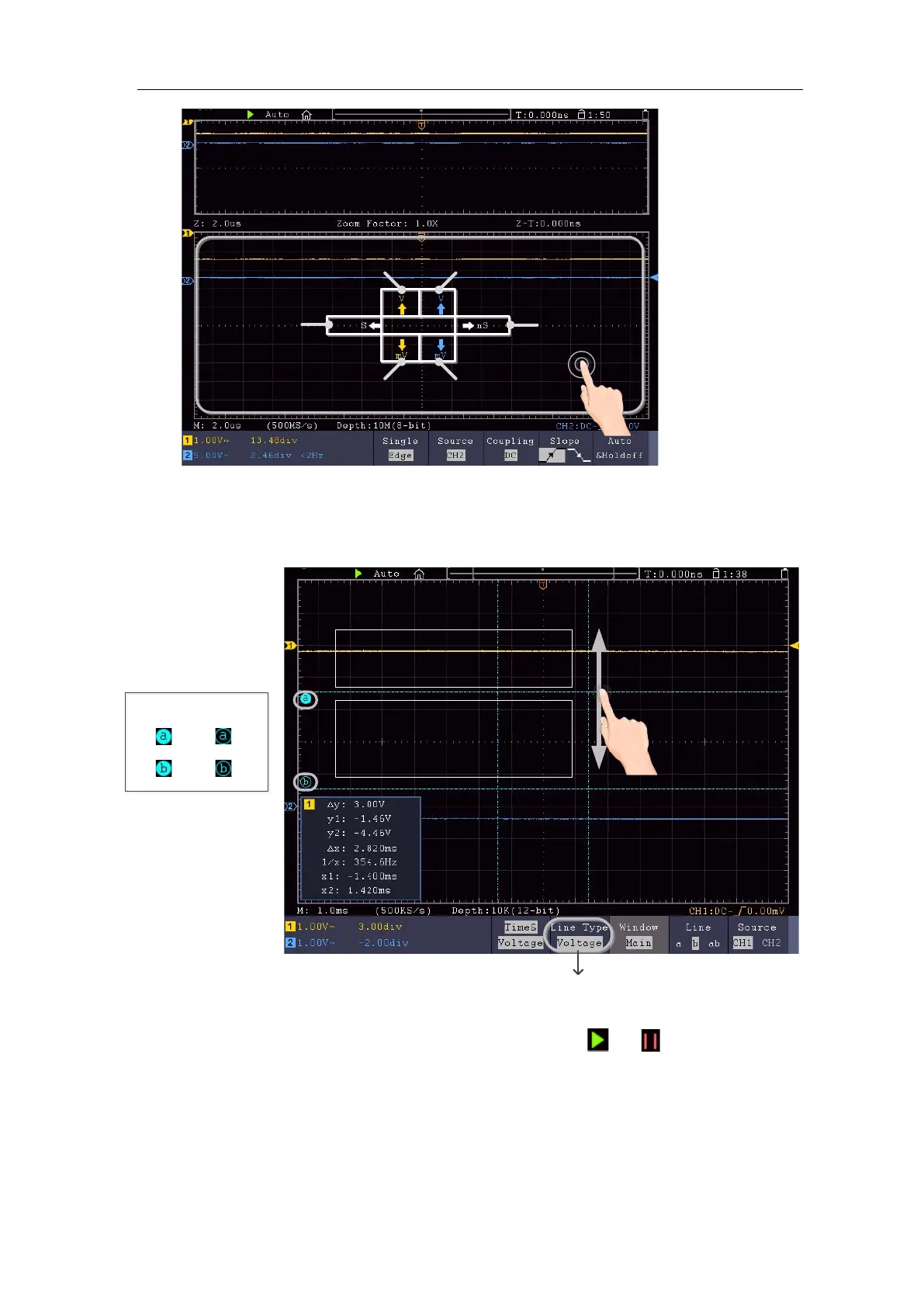

Measure with Cursors:
Press nearby any cursor
line until both lines are
selected, drag them up
and down simultaneously.
Switch horizontal or vertical lines
If vertical lines are selected, drag left and right.
Press nearby a cursor line
to make it selected, drag
it up and down.
Selected
Unselected
Run/Stop: Double tap on the display area, or click the or on the left top of
the display area to run or stop the waveform sampling.
Touch keyboard: Click to input.
Adjust value in the menu item: .
