4.Advanced User Guidebook
Holdoff
Holdoff
Reset
100 ns - 10 s, turn the M knob or click to set
time interval before another trigger occur
, press
panel button or click
to move
cursor to choose which digit to be set.
Set Holdoff time as default value (100 ns).

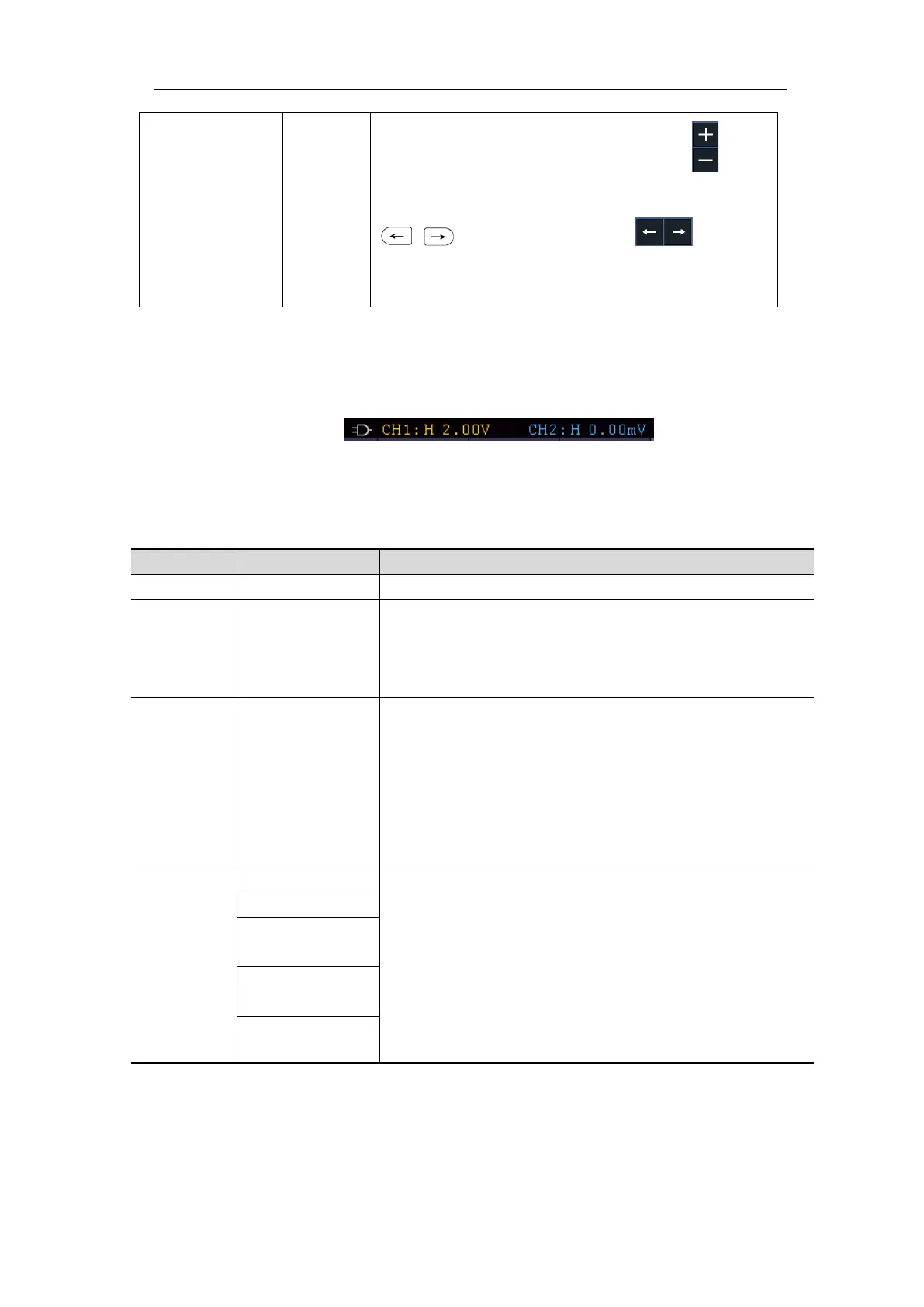

Logic Trigger
Trigger according to logic relation.
I
n Logic Trigger mode, the trigger setting information is displayed on bottom right of
the screen, for example, ， indicates that
trigger type is Logic, logic mode is AND, CH1 high level and trigger level is 0.00mV,
CH2 high level and trigger level is 0.00mV.
Logic Trigger menu list:
MENU
SETTING
INSTRUCTION
Mode
Logic
Set vertical channel trigger type as Logic trigger.
Logic
Mode
AND
OR
XNOR
XOR
Set logic mode as AND.
Set logic mode as OR.
Set logic mode as XNOR.
Set logic mode as XOR.
Input Mode
CH1
CH2
Set CH1 as High Level, Low level, high or low level,
Rise and Fall.
Set CH2 as High Level, Low level, high or low level,
Rise and Fall.
Note
：
When input mode of one channel is set as Rise or
Fall, the other channel could not be set as Rise and Fall
at the same time.
Out Mod
Goes True
Trigger when condition turns True from False.
Trigger when condition turns False from True.
Trigger when the time of true condition is more than
the set time
Trigger when the time of true condition is lower than
the set time
Trigger when the time of true condition is equal to the
set time
Goes False
Is True >
Is True <
Is True =
