8.Communication with Android Device via Wi-Fi (MP720106)

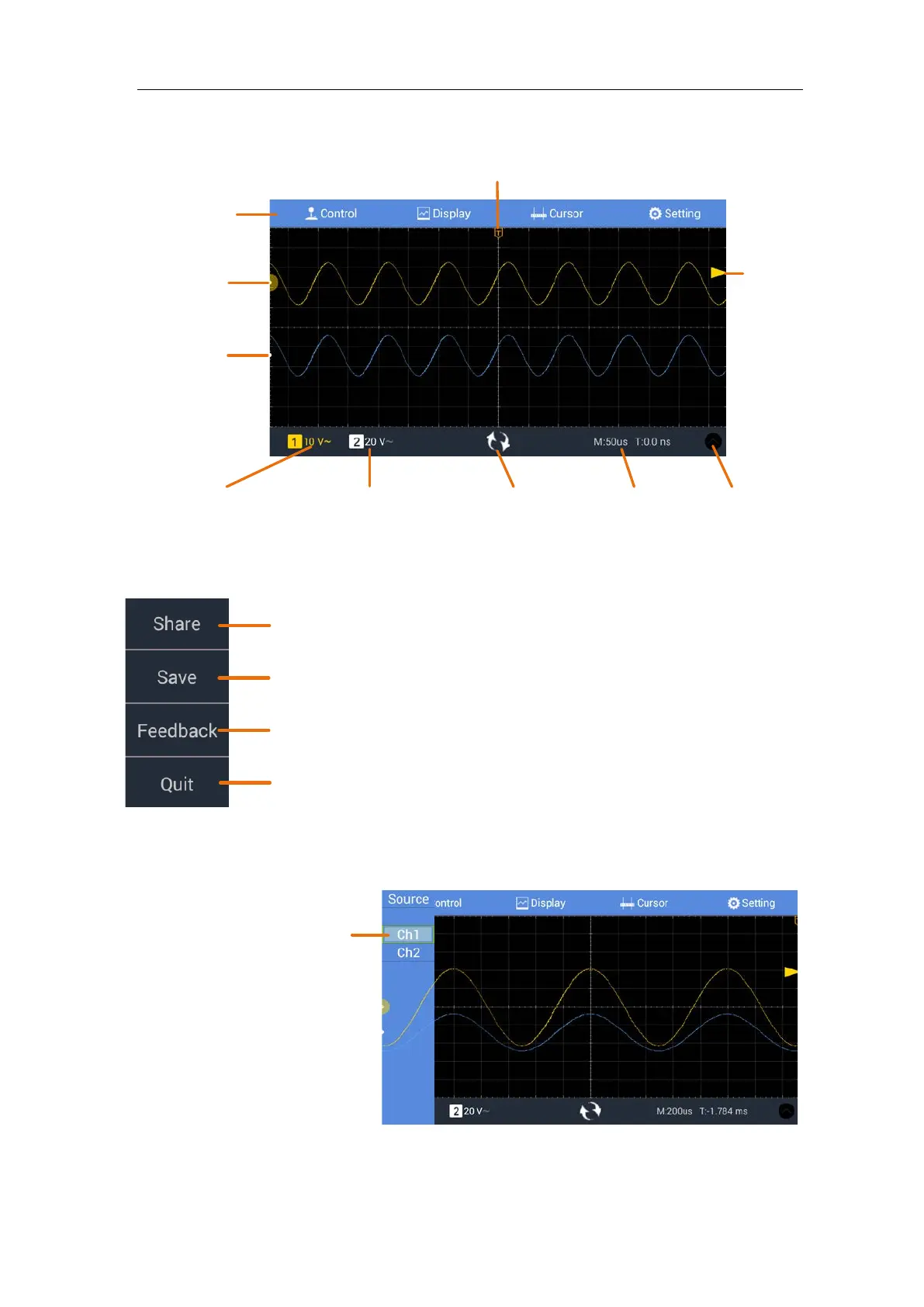

User Interface
Touch to enter
CH1
（Selected）
Voltage division of
CH1
(Colored indicates CH1
is selected.)
Voltage division of CH2
(Touch to select CH2,
touch again to turn CH2
on/off.)
Touch to
stop/continue to
synchronize with
the oscilloscope.
Time Base &
Horizontal
Position
Horizontal Position
Pointer
CH2
Show/hide
menu
(see below)
Trigger
Level
Share the image/wave file via
the installed sharing apps
Save into wave file
(bmp, png, bin, csv)
Exit APP
Submit feedback
Swipe from the left edge
of the screen to show the
trigger source menu
Trigger Source Menu
Trigger Source Menu
126
