7.Communication with PC
set the IP address to 192.168.1.71, Subnet mask is 255.255.255.0, Default gateway is
192.168.1.1.

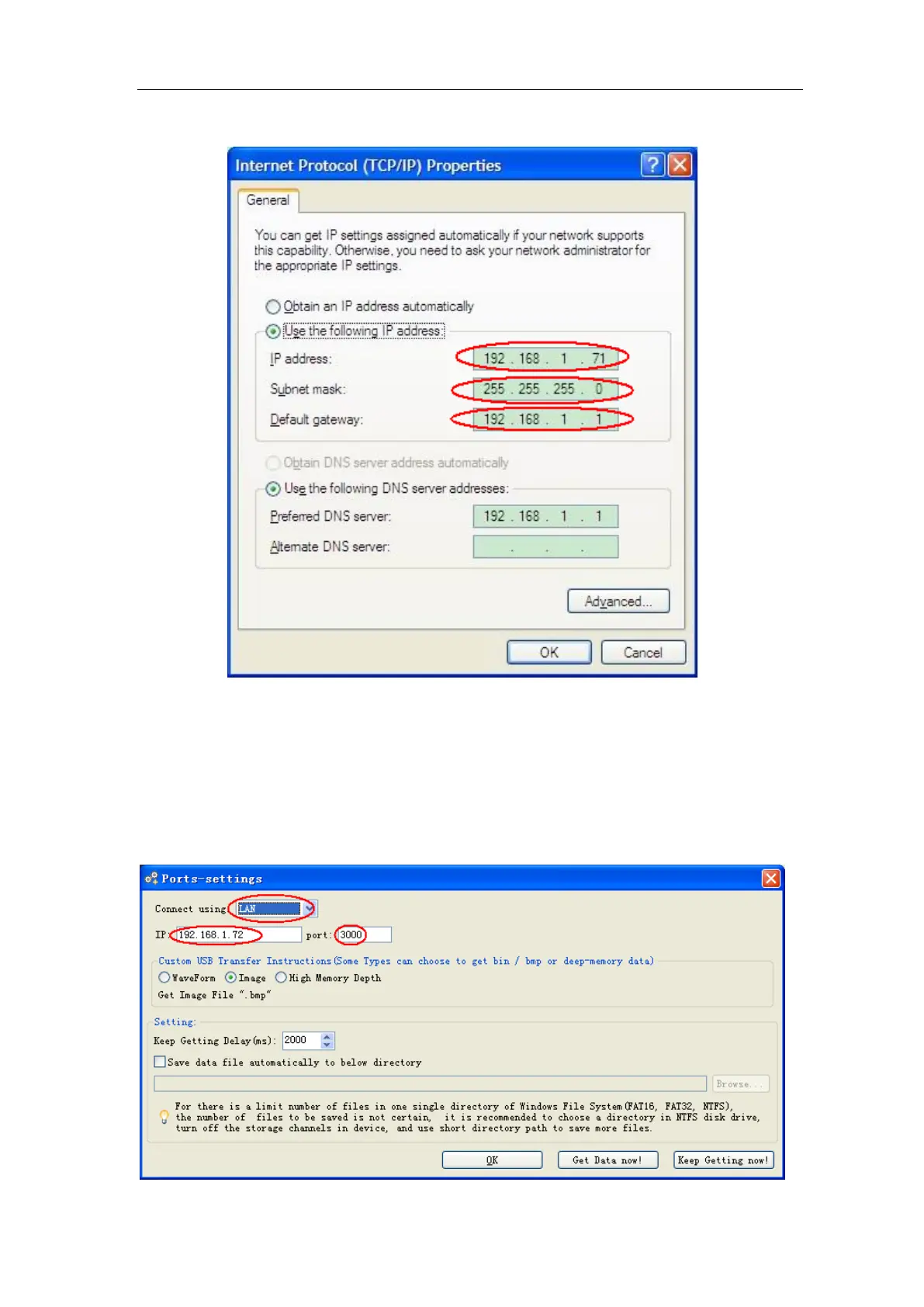

Figure 7-5 Set the network parameters of the computer
(3) Set the network parameters of the Oscilloscope Software. Run the software on the
computer; choose the "Ports-settings" of the "Communications" menu item. Set "Connect
using" to LAN. About the IP, the first three bytes is same as the IP in the step (2), the
last byte should be different. Here, we set it to 192.168.1.72. The range of the port value
is 0 - 4000, but the port which under 2000 is always used, so it is suggested to set it to
the value above 2000. Here, we set it to 3000.
Figure 7-6 Set the network parameters of the Oscilloscope Software
117
