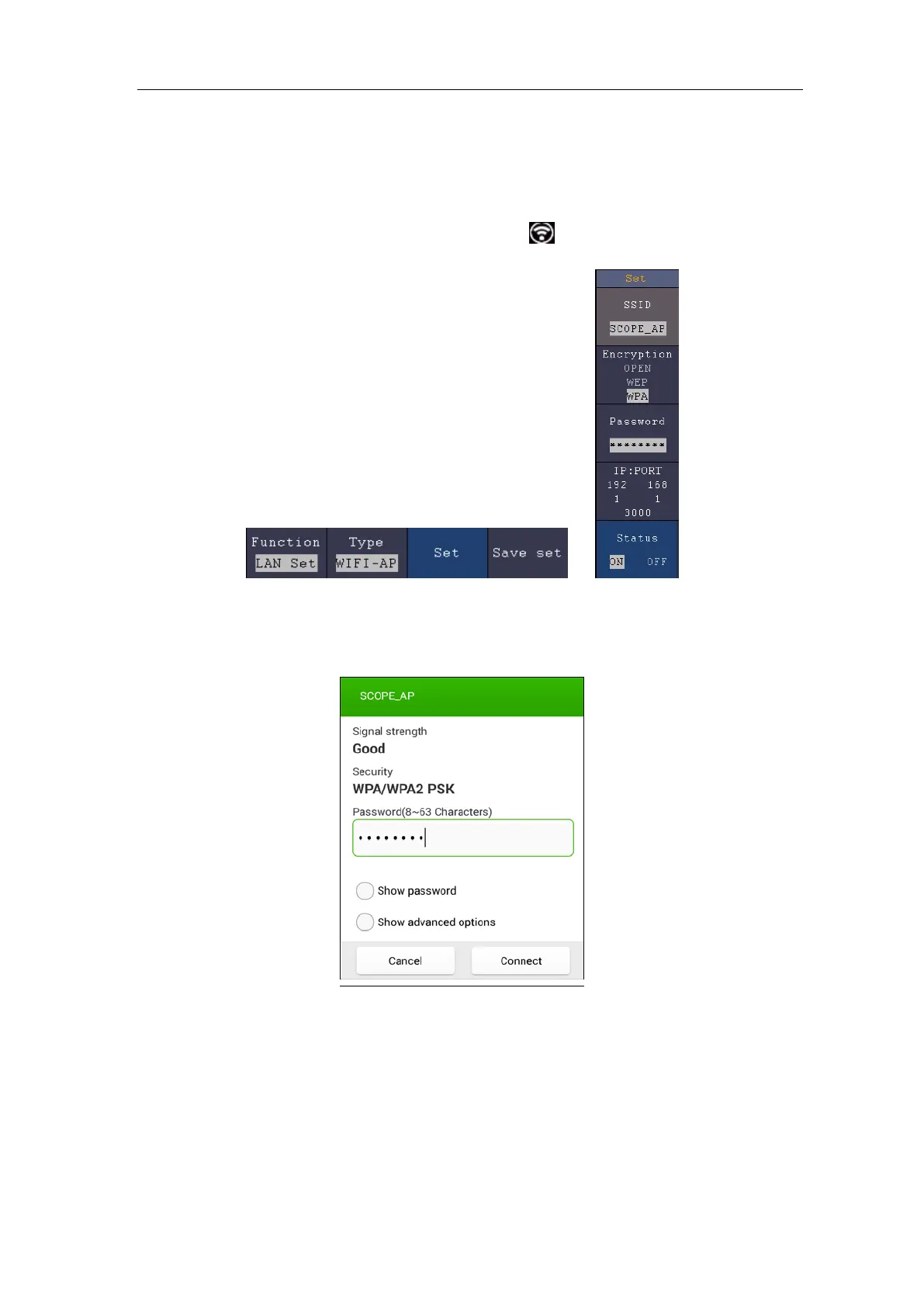

8.Communication with Android Device via Wi-Fi (MP720106)
Open type does not require a password. WEP or WPA type need to set the
password. You can select WPA. In the right menu, select Password, use the
keyboard to set the Wi-Fi password (8 to 32 characters).
(4)
(5)
In the right menu, select IP:PORT, IP is fixed by the oscilloscope, and can not be
edited. Turn the M knob to set the PORT.
After setting, select ON in the Status menu. The icon appears on the top right of
the screen.
(6) Select Save set in the bottom menu to save current settings.
(7) In Android device, enter the Wi-Fi settings, select the oscilloscope access point to
connect, enter the set password.
(8) In Android device, launch the application.
(9) Click connect on the left.
123
