3.Junior User Guidebook
Horizontal
1
5
10
Horizontal magnification factor. The size of
the magnifier window is fixed. Therefore,
the greater this value, the shorter the
horizontal length of the wave selection.
Vertical
1
2
4
8
16
32
Vertical magnification factor. The size of
the magnifier window is fixed.
Th
erefore, the greater this value, the
shorter the vertical height of the wave
selection.
Transparent
ON
OFF
Make the magnifier window transparent or
not.

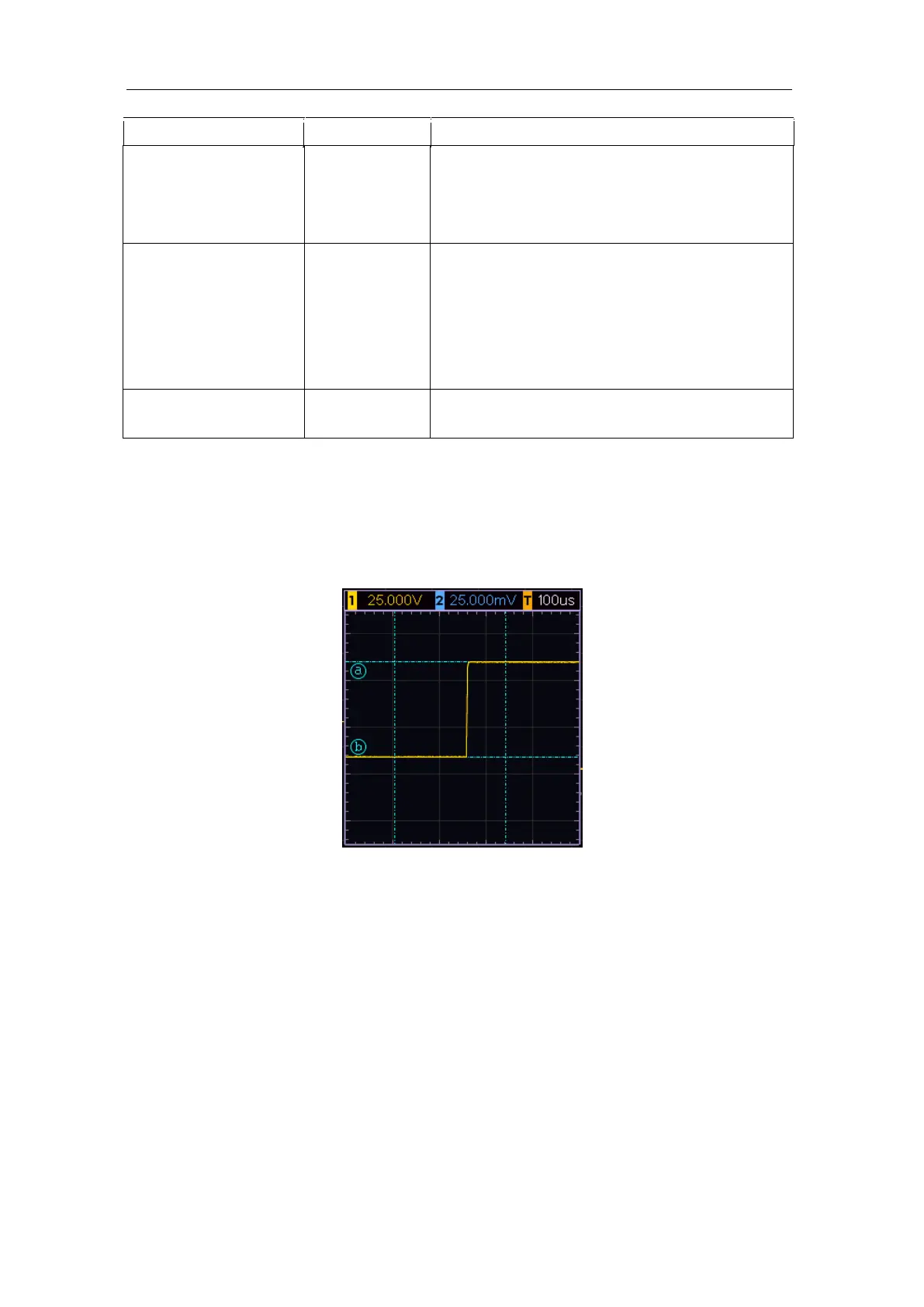

The Cursor Measurement in Magnifier Window
When the magnifier function is enabled, push Cursor panel key to display the cursor
menu. In the bottom menu, select Window as Main or Extension to make the cursors
shown in the main window or the magnifier window.
Note: The magnifier function is disabled in wave zoom mode, waveform math, FFT, XY
mode, slow-scan mode, stop state, average acquire mode, and persist mode.
