Installation
Ultima Hooklift 01/2020
20

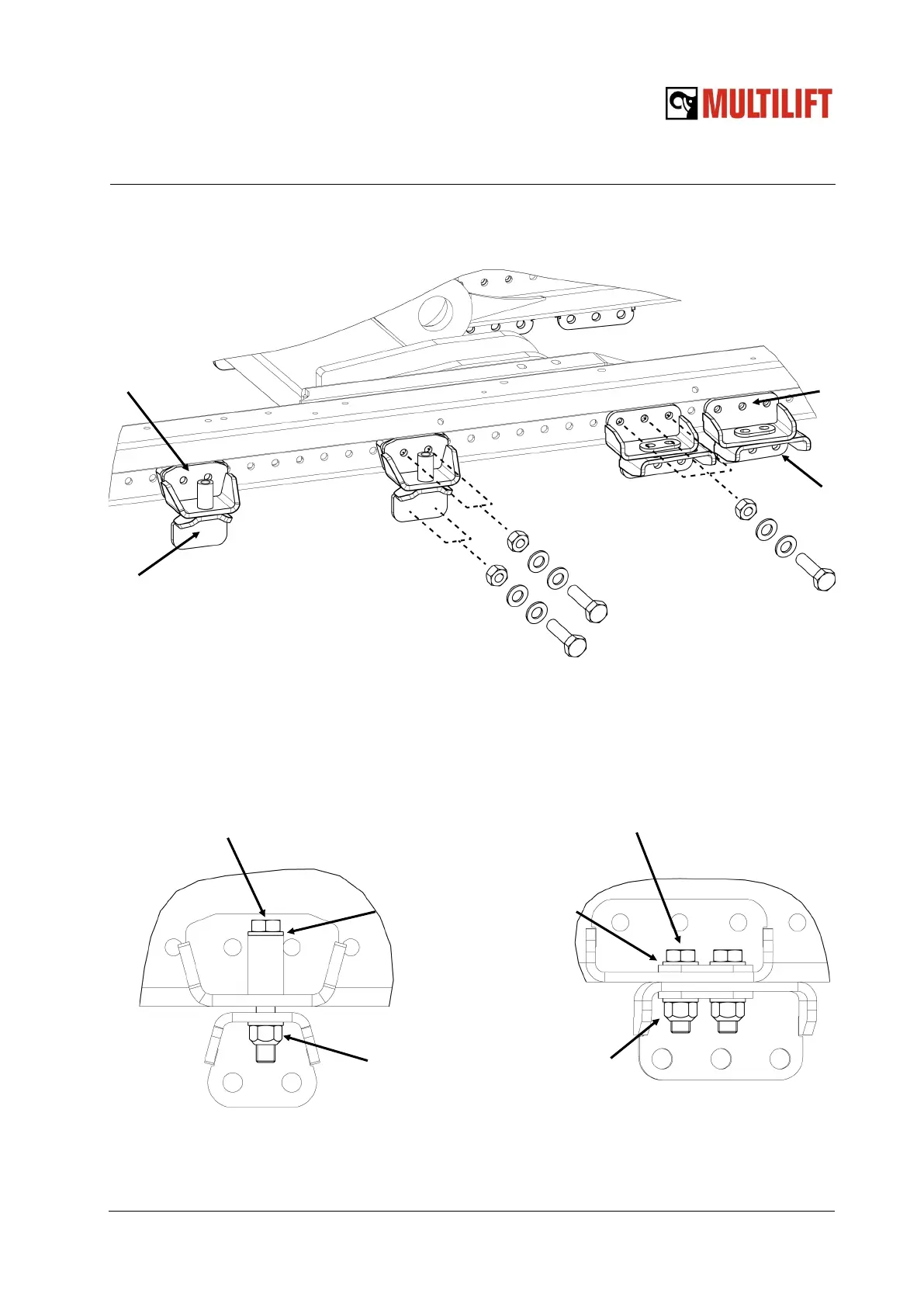

Examples of flexible brackets
Hexagonal screw M14
DIN931 10.9
All metal lock nut M14
DIN 980 cl.10
Washer M14 DIN 125A HB200
M16 chassis fasteners requested
by some truck manufacturers!
Some chassis plate types
need drilling of holes!
Tightening torque for M14 bolt is 125 ft-lb
Tightening torque for M16 bolt is 203 ft-lb
Washer M16 DIN 125A HB200
Hexagonal screw M16 x 110 DIN931 8.8
Tightening torque 22 ft-lb - 1/4 rev.
Hexagonal screw M16 x 60 DIN931 10.9
Tightening torque 203 ft-lb
All metal lock nut M16 DIN 980 cl.10
2x
2x 3x
3x
