Installation
Ultima Hooklift 01/2020
21

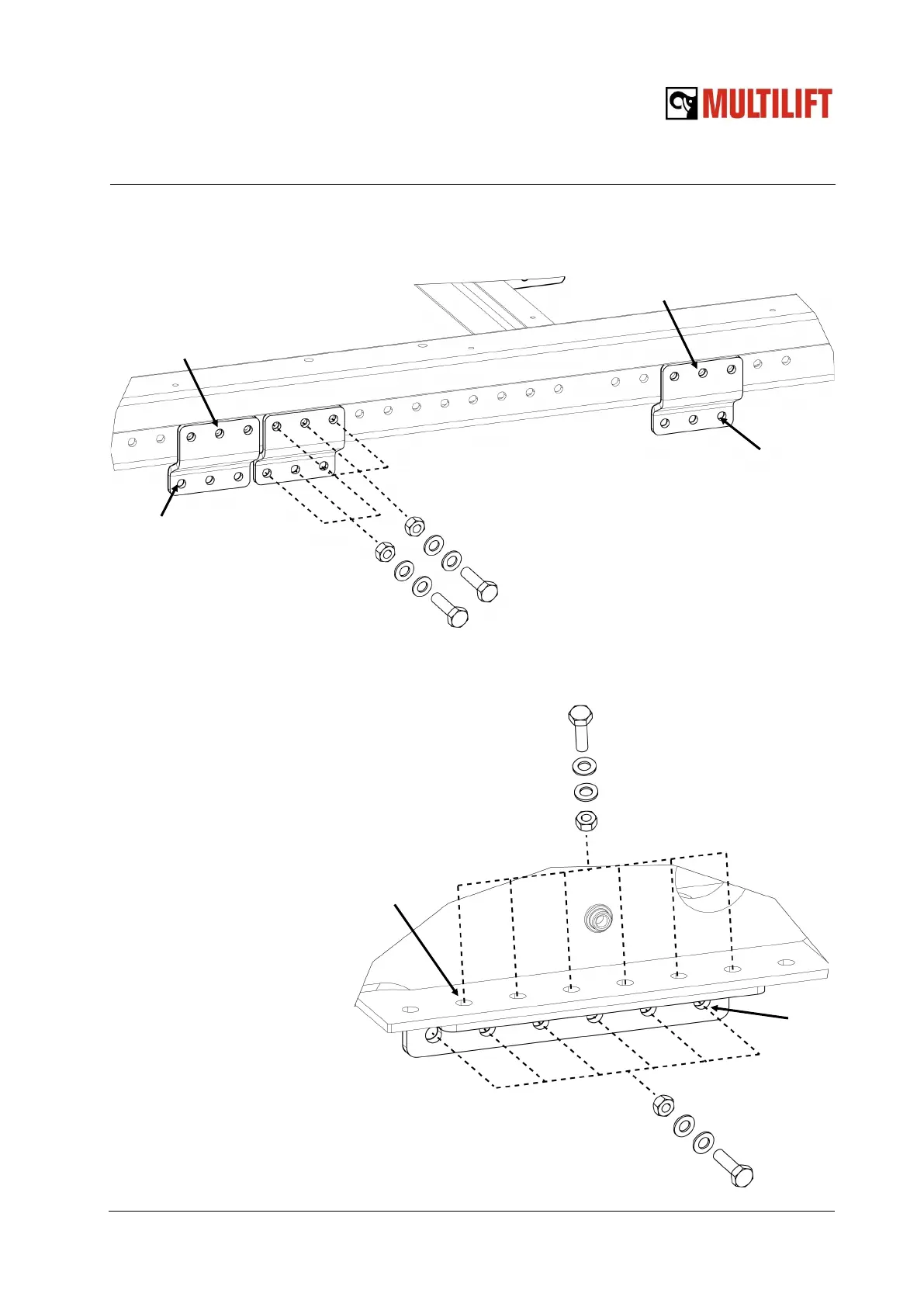

Examples of fixed plates
Hexagonal screw M14 DIN931 10.9
All metal lock nut M14 DIN 980 cl.10
Washer M14 DIN 125A HB200
M16 chassis fasteners requested
by some truck manufacturers!
Tightening torque for M14 bolt is 125 ft-lb
Tightening torque for M16 bolt is 203 ft-lb
3x
3x
3x
3x
All metal lock nut M14 DIN 980 cl.10
Hexagonal screw M14 DIN931 10.9
All metal lock nut M14 DIN 980 cl.10
Washer M14 DIN 125A HB200
M16 chassis fasteners requested
by some truck manufacturers!
Example of rear plates
Hexagonal screw M14 DIN931 10.9
Washer M14 DIN 125A HB200
6x
6x
