Note: idle trim
The trim button adjacent to the THROTTLE / SPOILER
stick is always used for throttle idle trim, even if the
right-hand slider is used to control the throttle function,
as in modes 5 to 8.
14.3.3. Transmitter controls for the GLIDER type

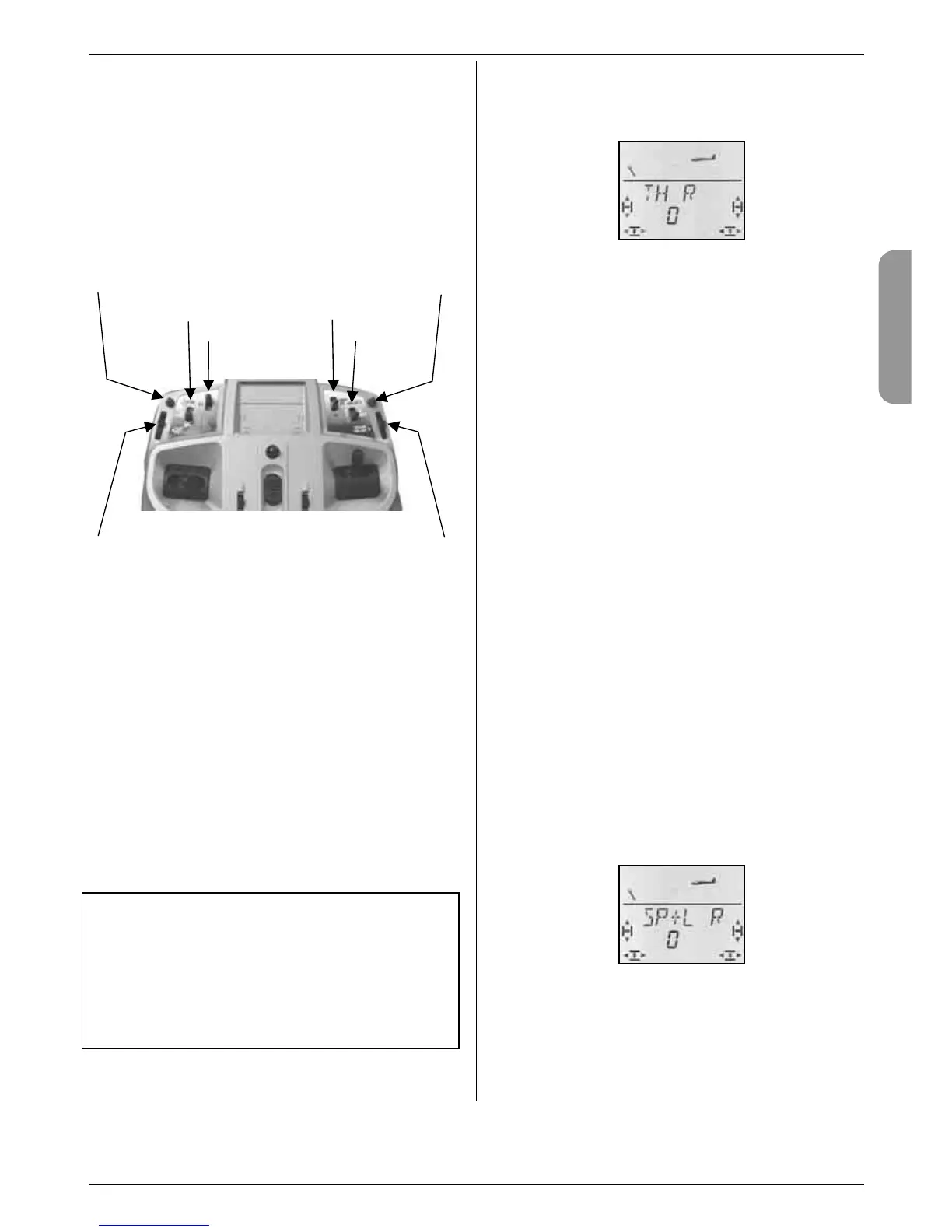

The picture below shows which functions are controlled
by the individual transmitter controls in the GLIDER
model type.
Switch functions
Teacher button (Trainer) Emergency throttle OFF
and FIX (fixed value) (Throttle Cut)
Combi-Switch Snap-Flap
Dual Rate Flight phases
1, 2, 3
(Î 14.10.)
Slider functions
Flap (camber-changing flap) Spoiler (modes 1 to 4)
or Throttle (modes 5 to 8)
14.3.4. Selecting the THROTTLE idle position
forward / back
Menu: (
SETUP, MODEL) TH R
THR R = Throttle Reverse
The idle position of the transmitter control for throttle
(stick or slider) can be forward (towards the aerial) or
back (towards you). When you set up a new model, the
default setting is:
TH R = 0
This means: the throttle idle position is back.
Important: your selected idle position relates to the
function, and not to the transmitter control. If you have
selected one of the stick modes 1 to 4, TH R acts
upon the stick; in modes 5 to 8 it affects the right-hand
slider.
Note: throttle servo / speed controller works in the
wrong “sense”
If you have decided on the idle position, but the power
system in your model runs to full-throttle at this setting,
you must reverse the throttle servo (Î 13.4.1.). The
idle position must be left as it is, to ensure that THR-
CUT (= throttle cut = emergency motor OFF), throttle
check (Î 13.3.5.) and the throttle / elevator mixer work
correctly.
Selecting the throttle idle setting:
4 to MENU, r (SETUP appears),
r (MODEL appears), r (MODE appears),
3 to TH
R, r (0 or 1 flashes)
“0” or “1” flashes in the bottom line.
THR R = “0”: idle back (default)
THR R = “1”: idle forward
Use the 3-D digi-adjustor to select 0 (back) or 1 (for-
ward). A brief press r concludes the process, and the
flashing ceases. The setting is stored.
If you now turn the 3-D digi-adjustor one click further to
the right 3, you can immediately select the idle position
for the Spoiler control.
14.3.5. Selecting the SPOILER idle setting
forward / back
Menu: (
SETUP, MODEL) SP+L R
SP+L R = Spoiler and Limiter Reverse
(L = Throttle Limiter for Heli)
The idle position of the transmitter control for Spoiler
(stick or slider) can be forward (towards the aerial) or
back (towards you). When you set up a new model, the
default setting is:
SP+L R = 0
This means: the spoiler idle position is forward.
Important: your selected idle position relates to the
function, and not to the transmitter control. If you have
selected one of the stick modes 1 to 4, SP R acts
upon the right-hand slider; in modes 5 to 8 it affects the
stick.
Selecting the Spoiler idle position from one of the
INFO displays:
4 to MENU, r (SETUP appears),
r (MODEL appears), r (MODE appears),
3 to SP+L R, r (0 or 1 flashes)
“0” or “1” flashes in the bottom line.
SP+L R = “0”: idle position forward (default)
SP+L R = “1”: idle position back
Use the 3-D digi-adjustor to select 0 (forward) or 1
(back). A brief press r concludes the process. The
flashing ceases, and the setting is stored.
To Next Page
