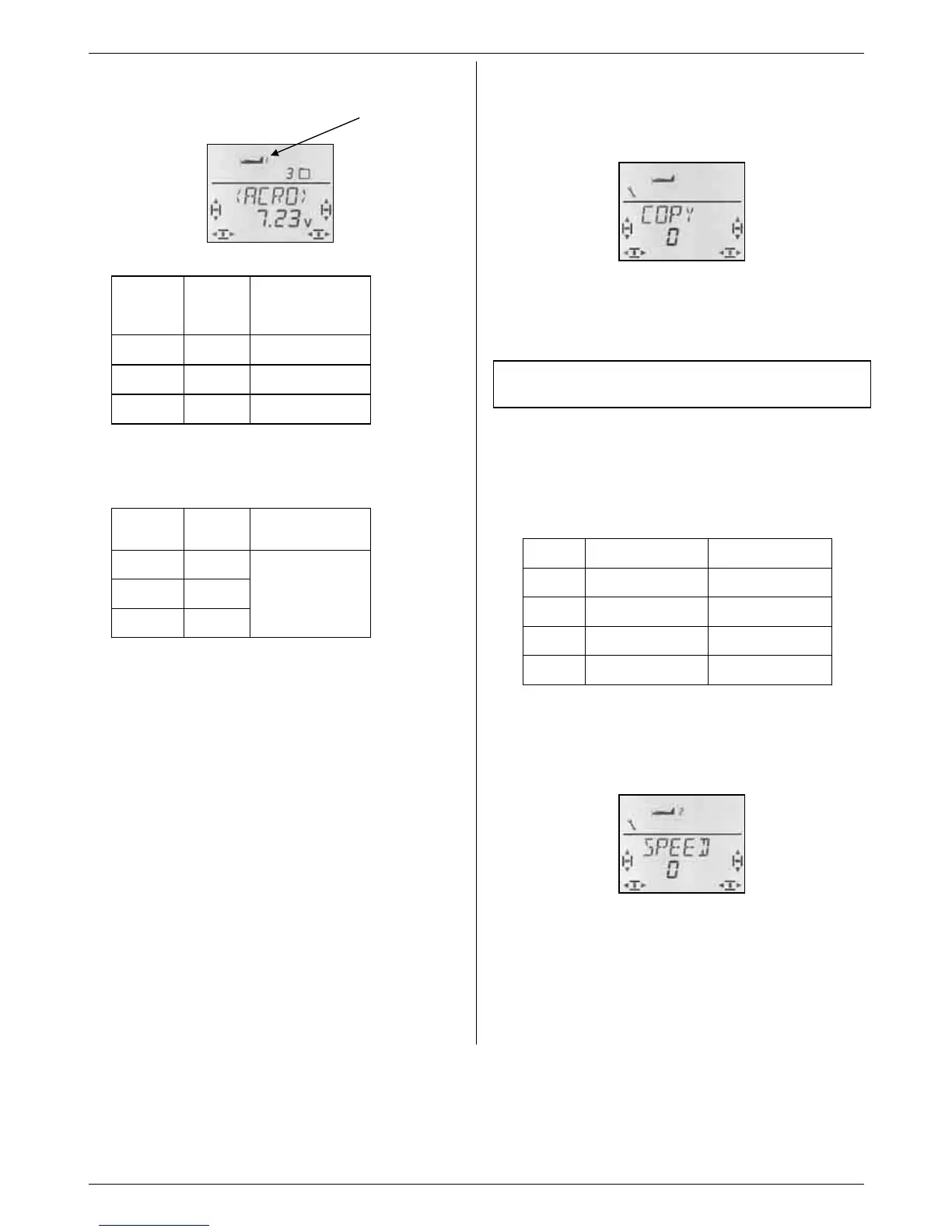

15.9.3. On-screen display of the active flight
phase
The top section of the screen displays the flight phases
in the form of three figures.
When you are flying (INFO display visible) this applies:
PH
switch
position
Display Active phase:
1
1
Flight phase 1
2
2
Flight phase 2
3
3
Flight phase 3
When you make changes in the menus of the COCKPIT
SX, the three figures indicate whether the selected
value is specific to one flight phase, and, if so, to which
flight phase the currently displayed value applies.
PH
switch
Display
1
123
2
123
3
123
The code number of
the active phase is
constantly displayed;
the other two flash.
Important: non flight phase-specific values
If only one constantly visible figure is displayed, the
selected value applies equally to all flight phases.
15.9.4. Copying flight phases
Menu: (
PHASENS) COPY
What is copied?
• The current trim settings for AILERON, ELEVATOR
and RUDDER
• Mixer input Q ->Q aileron input to ailerons
(differential)
• Mixer inputs for the free mixers Î 17.
• Transmitter control settings
Dual Rate for AILERON, ELEVATOR,
RUDDER Î 14.9.1.
Fixed values for AILERON, ELEVATOR, RUDDER,
which are called up with the FIX button Î 15.10.2.
The source is always the current flight phase, which
you have selected with the PH switch.
The destination for the copy is selected in the menu.
Moving to the COPY menu:
4 to MENU, r (SETUP appears),
r (MODEL appears), r (MODE appears),
3 to PHASES, r,
3 to COPY, r
The number 0 flashes in the bottom line. Select phase
1 to 3 as destination using the 3-D digi-adjustor.
A further brief press r on the 3-D digi-adjustor triggers
the copy process, and the flashing ceases.
Note: interrupting without making a copy
If you leave 0 as the destination, no copy will be made.
15.9.5. Setting the transition speed for switching
flight phases
Menu: (
PHASES) SPEED
The SPEED parameter can be adjusted to determine
the speed of transition from one flight phase to another.
Four settings are possible:
SPEED
Transition
0
immediate
1
fast approx. 1 sec
2
moderate approx. 2 sec
3
slow approx. 3 sec
Moving to the SPEED menu:
4 to MENU, r (SETUP appears),
r (MODEL appears), r (MODE appears),
3 to PHASES, r,
3 to SPEED, r
The current setting flashes. Select the desired value
using the 3-D digi-adjustor.
A brief press r on the 3-D digi-adjustor concludes the
process. The value is stored.
