MultiWave Sensors Smart Aligner - Tool Description; User Interface and Controls

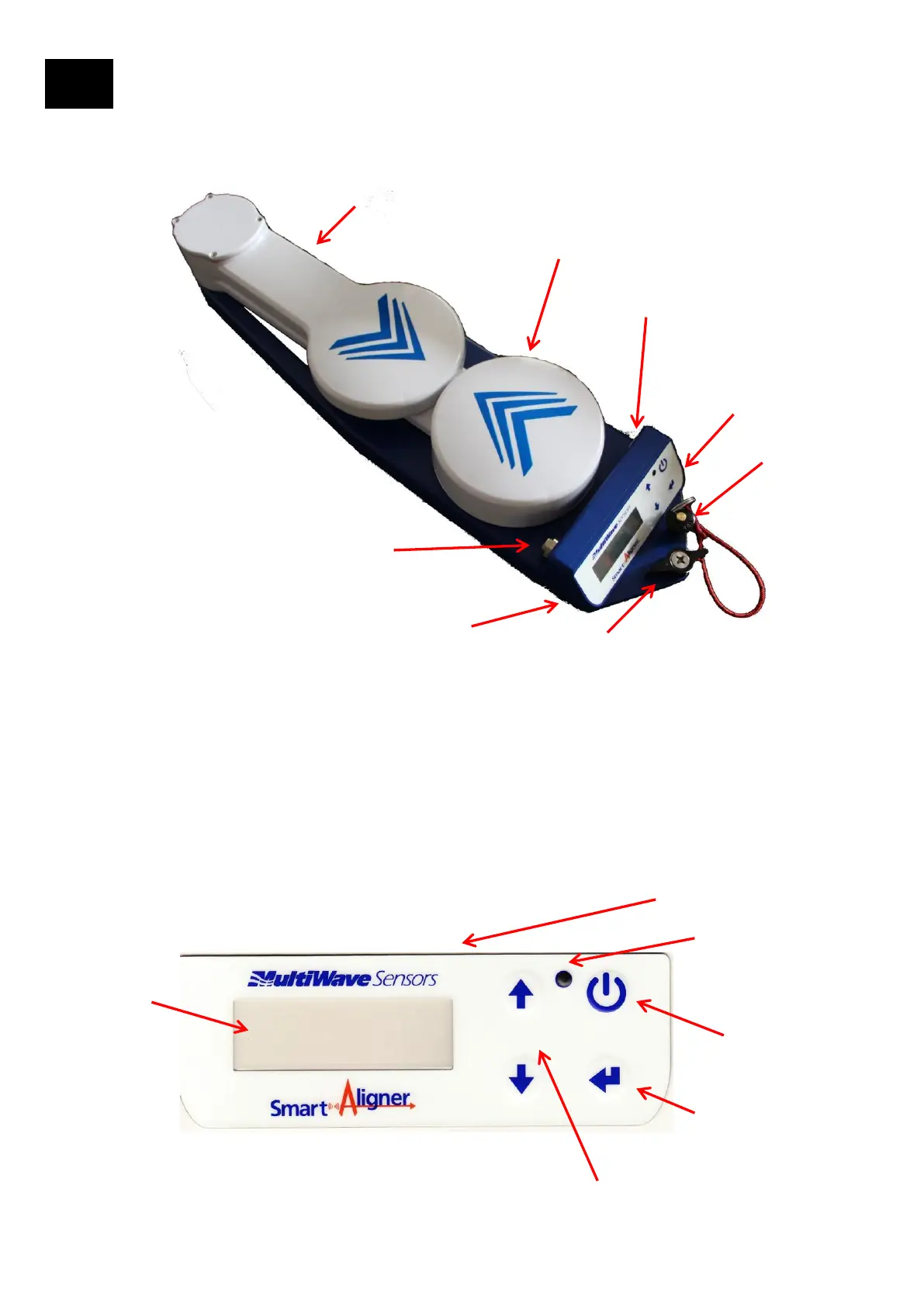

Tool Description
5
Long Arm
Tether Line/Pin
Mounting Screw Knob
User Interface
Mounting Dowel Pins
(underside)
Short Arm
Charging Port
Data/Laser Port
Short Arm: Contains first GPS antenna. From stored position: Rotates to +90° and 180° OR -90° and 180°
Long Arm: Contains Second GPS antenna. From stored position: Stored position to +90° OR Stored Position to -90°
Charging Port: Port for Wall or Car Charger
User Interface : LCD Screen, Menu Buttons and Power Button
Tether Line/Pin: Attaches to Bracket
Mounting Screw Knob: Attaches to Mounting Screw Knob receptacle on Bracket
Mounting Dowel Pins: Attaches to Dowel Pin Receptacles on Bracket
Data/Laser Port: Used with Laser Rangefinder option for AGL measurement
Power Button
Power LED indicator
Menu Enter Button
Up/Down Buttons
LCD Display
User Interface
