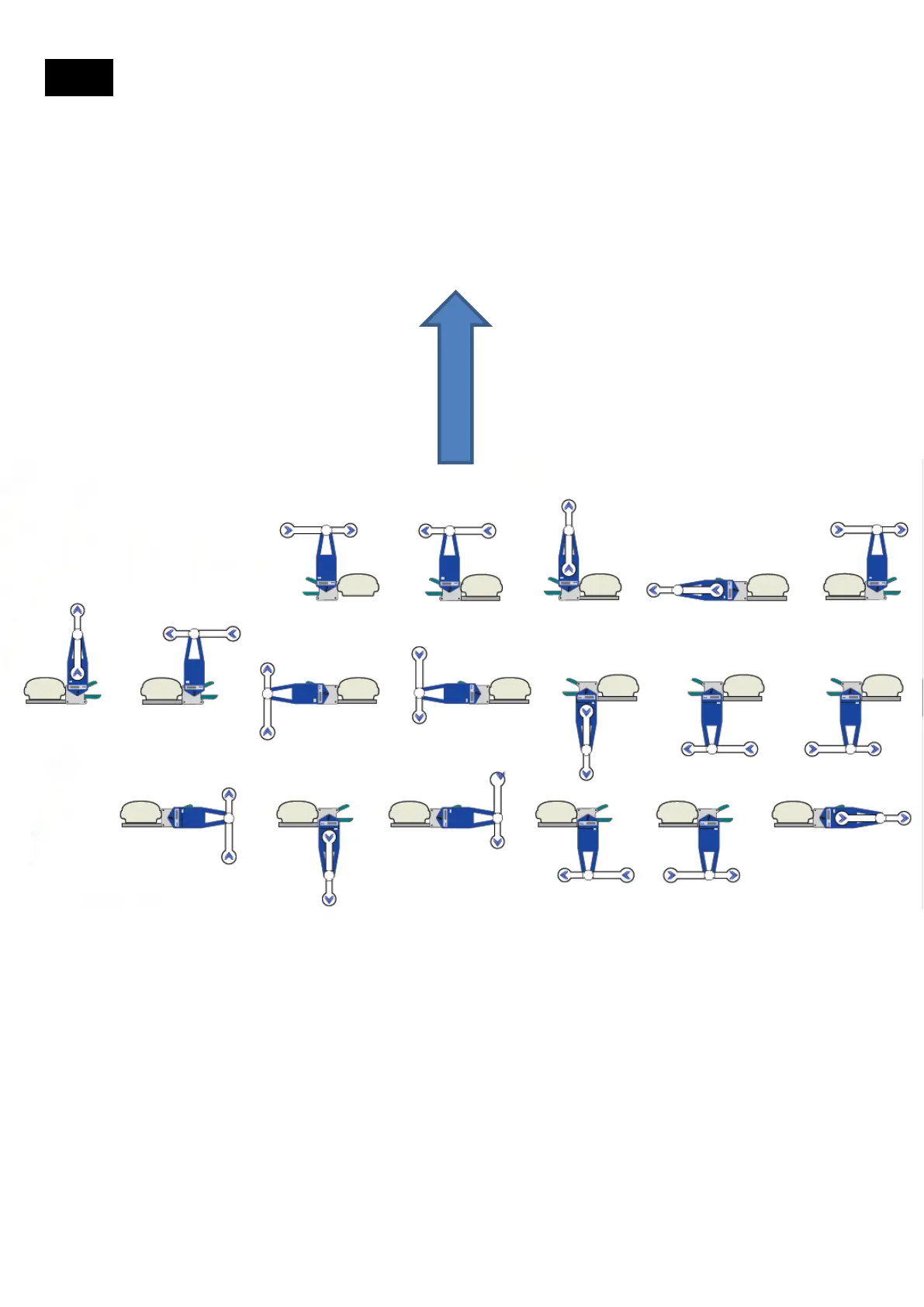

The 18 Configurations
9.1
Antenna Azimuth
No matter which configuration the Tool and Bracket are mounted to the antenna the Antenna Azimuth will be
compensated. The user does not need to set any offsets. Sensors in the Bracket and Tool detect the configuration and
automatically compensate the Azimuth, Tilt and Roll of the antenna. The different configurations are useful when there
are mechanical constraints or excessive RF radiation from a live antenna. The T positions allow for extension of the two
GPS antenna elements away from the antenna to mitigate any GPS multi-path effects which will degrade accuracy.
9
