MultiWave Sensors Smart Aligner - Bracket Attached to the Antenna; Tool Attached to the Bracket; 18 Configurations Overview

Tool Attached to the Bracket
9
Right side of antenna: Tool facing Front, Arms Left T
Right side of antenna: Tool facing Right, Arms Right T

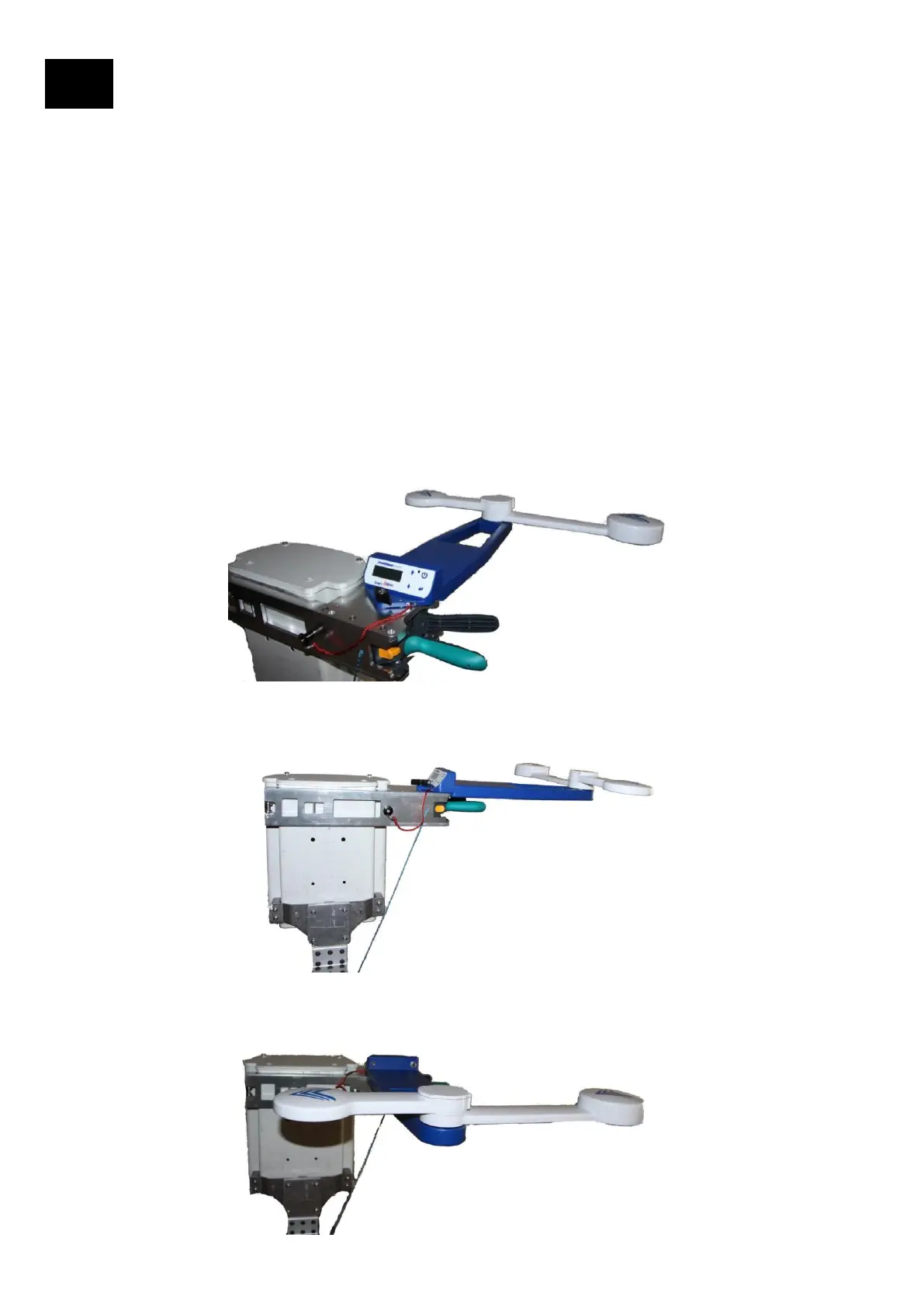

The Tool and Bracket can be attached to the antenna in 18 different configurations.
The 18 configurations are:
1-2 Right or Left side of antenna: Tool facing Front on Bracket, Arms Forward
3-4 Right or Left side of antenna: Tool facing Front on Bracket, Arms Left T (shown below)
5-6 Right or Left side of antenna: Tool facing Front on Bracket, Arms Right T
7-8 Right or Left side of antenna: Tool facing Right on Bracket, Arms Forward
9-10 Right or Left side of antenna: Tool facing Right on Bracket, Arms Left T
11-12 Right or Left Side of antenna: Tool facing Right on Bracket, Arms Right T (shown below)
13-14 Right or Left side of antenna: Tool facing Back on Bracket, Arms Forward
15-16 Right or Left side of antenna: Tool facing Back on Bracket, Arms Left T
17-18 Right or Left Side of antenna: Tool facing Back on Bracket, Arms Right T (shown below)
Right side of antenna: Tool facing Back, Arms Right T
