Configuration/settings
User manual 55530_hdb_en_16 57 / 156
Module configuration In the TIA portal device view, the module will be presented as
 PROFINET user with a pre-configured digital IO port for universal IO chan-
nels
 virtual parameter/diagnostic module
 IO-Link master with 4 IO-Link ports
The ports created can optionally be occupied by defined virtual submodules.
Virtual modules serve to map the different items of diagnostic and status infor-
mation to the process image on the IO-Link master.
Allocation of submodules to the ports is pre-defined by GSDML file.
Device  Parameterization of the module
 Read and write access to the digital IOs.
 Access to the system status
Tab. 8-3: Standard submodules for device

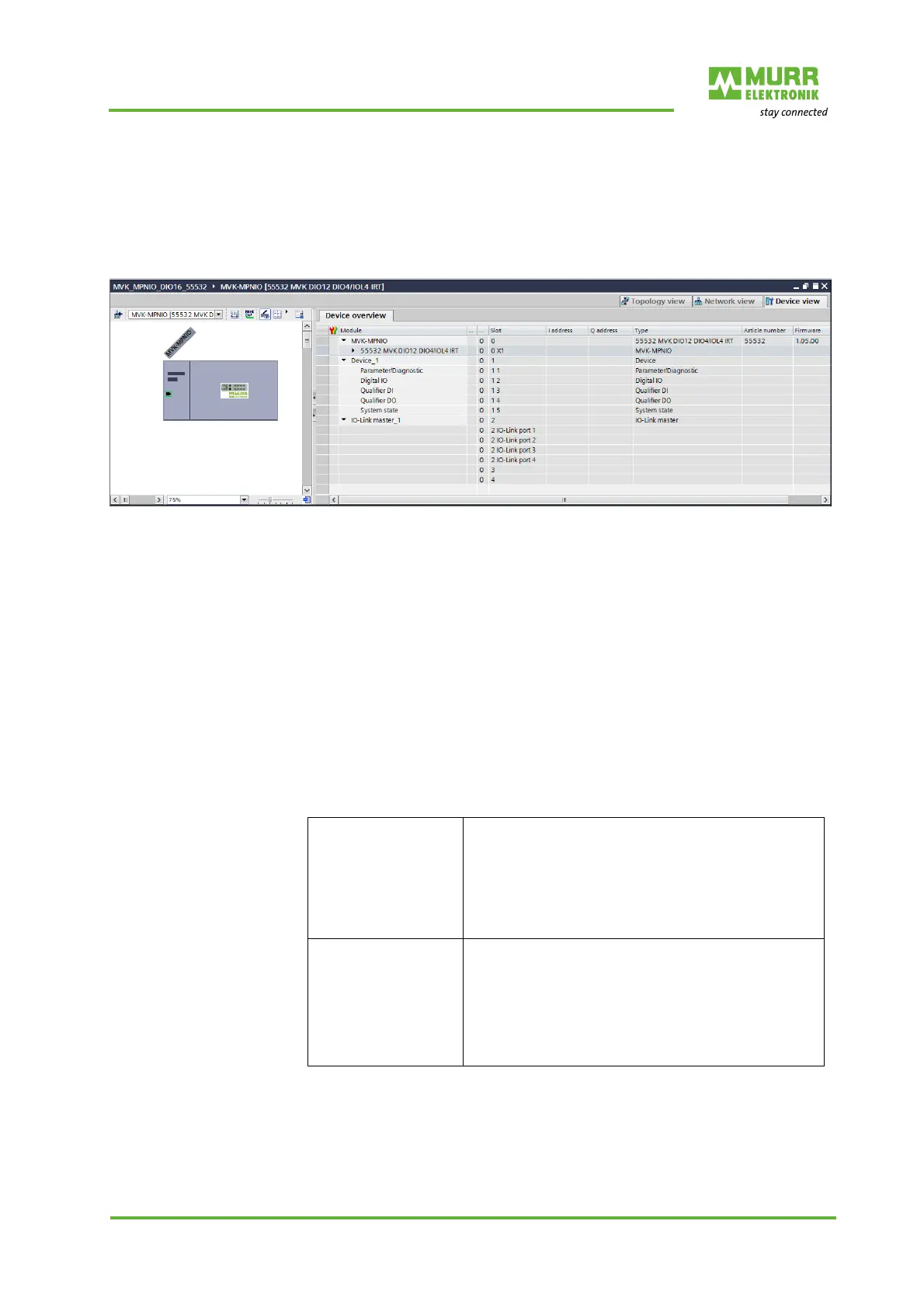

Fig. 8-1: Module configuration
Standard submodules
Parameter/Diagnostic Parameterization of the module
 Diagnostic behavior
 Threshold values for undervoltage
 LED behavior
 Availability of the Murrelektronik IO-Link Tool
 Data layout
 Input delay
Digital IO 2 bytes In
 Value of the inputs as individual bits.
 Layout according to parameter settings (port/pin-
based).
2 bytes Out
 Value for setting the outputs as individual bits.
 Layout according to parameter settings
