Mounting

User manual 55530_hdb_en_16 45 / 156

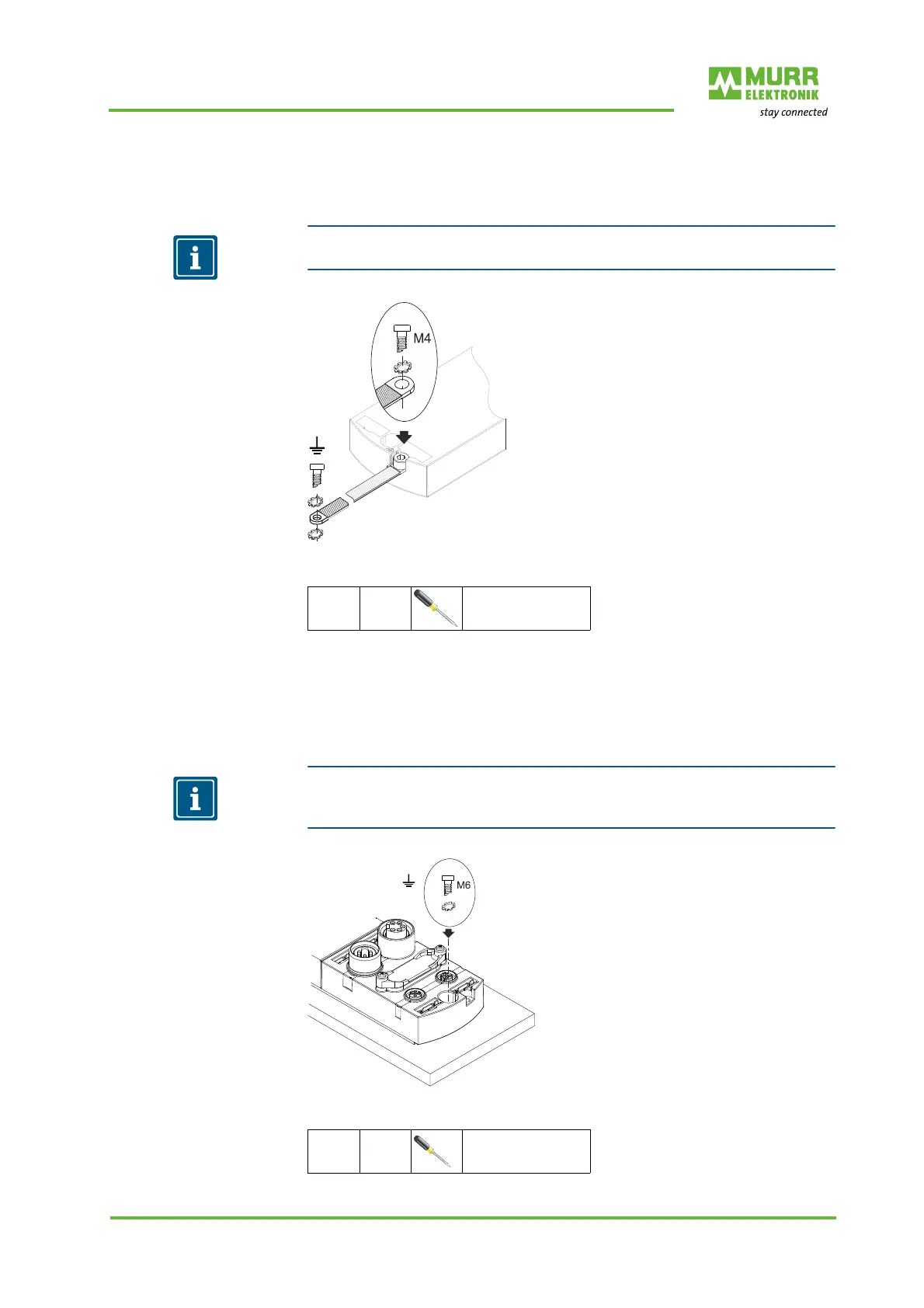

5.4.1 Functional ground

With grounding strap

NOTE

Use a conductive screw to attach the ground strap.

Fig. 5-4: Grounding strap fastening

Without grounding

strap

NOTE

Remove the grounding strap and secure the module to the metal substrate

with a conducting screw.

Fig. 5-5: Grounding directly to metal substrate MVK 7/8"

M4 1,2 Nm

Art.-No.

7000-98001-0000000

M6 3 Nm

Art.-No.

7000-98001-0000000
