User manual 55530_hdb_en_16 24 / 156

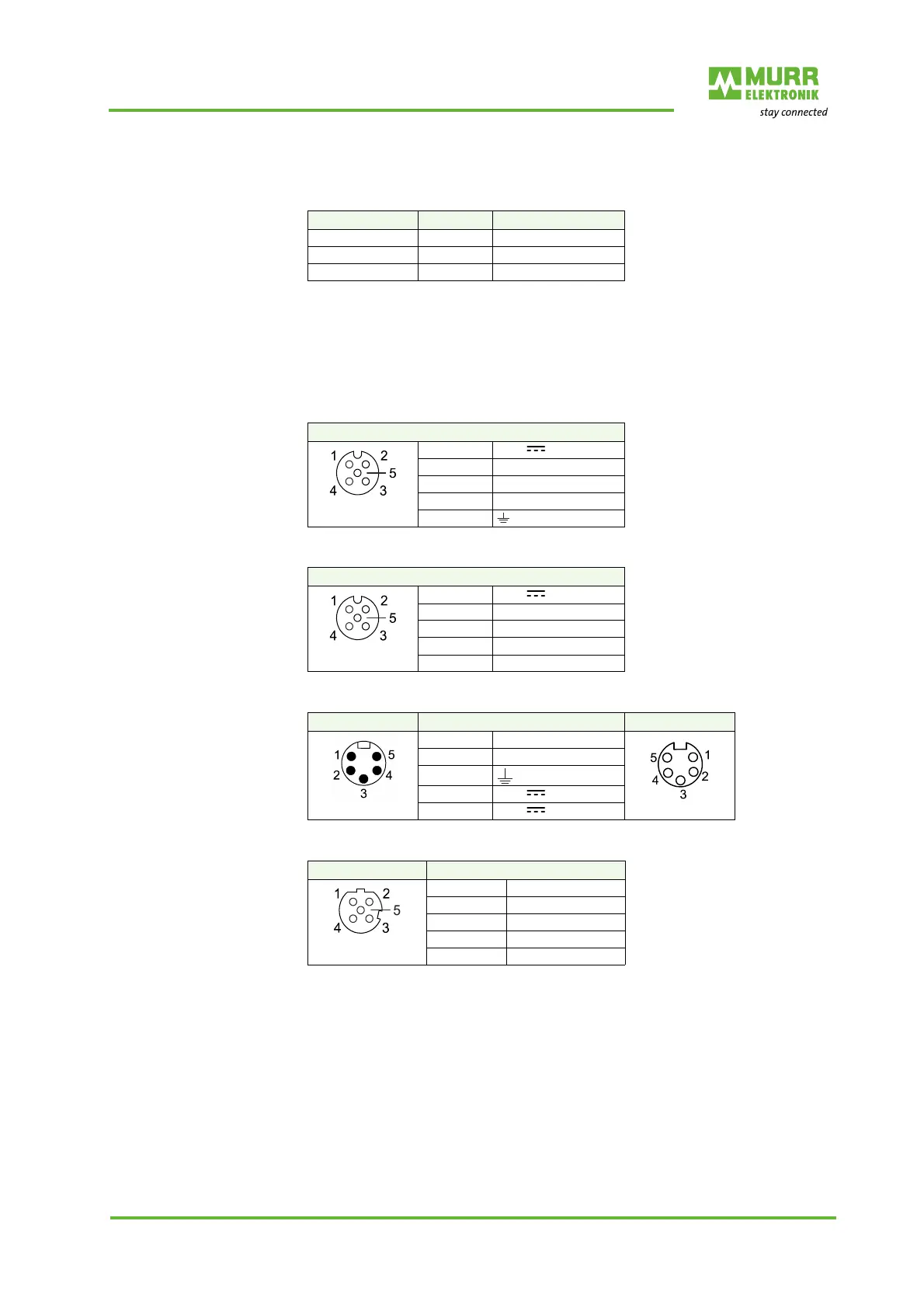

3.4.2 Connections
Overview
3.4.2.1 Pin assignment
DIO
Digital inputs and out-
puts
M12 ports A-coded
IO-Link Class B
M12 ports A-coded
POWER
7/8" male connector
7/8" female connector
M12 female
D-coded
Port 1 / Port 2
Art.-No. DIO IO-Link Class B
55530 X0 ... X7 -
55531 X0 ... X5 X6, X7
55532 X0 ... X3 X4 ... X7
Pin 1 24 V
Pin 2 DI/DO
Pin 3 0 V
Pin 4 DI/DO
Pin 5
Pin 1 24 V
Pin 2 DI/DO
Pin 3 0 V
Pin 4 DI/DO/IO-Link
Pin 5 0 V
XD1 XD2
Pin 1 0 V
Pin 2 0 V
Pin 3
Pin 4 24 V US/9 A
Pin 5 24 V UA/9 A
XF1 / XF2
Pin 1 TD +
Pin 2 RD +
Pin 3 TD -
Pin 4 RD -
Pin 5 n.c.
