Installation
User manual 55530_hdb_en_16 51 / 156
6.1.2 Connecting the Ethernet bus
Connecting the
M12 port

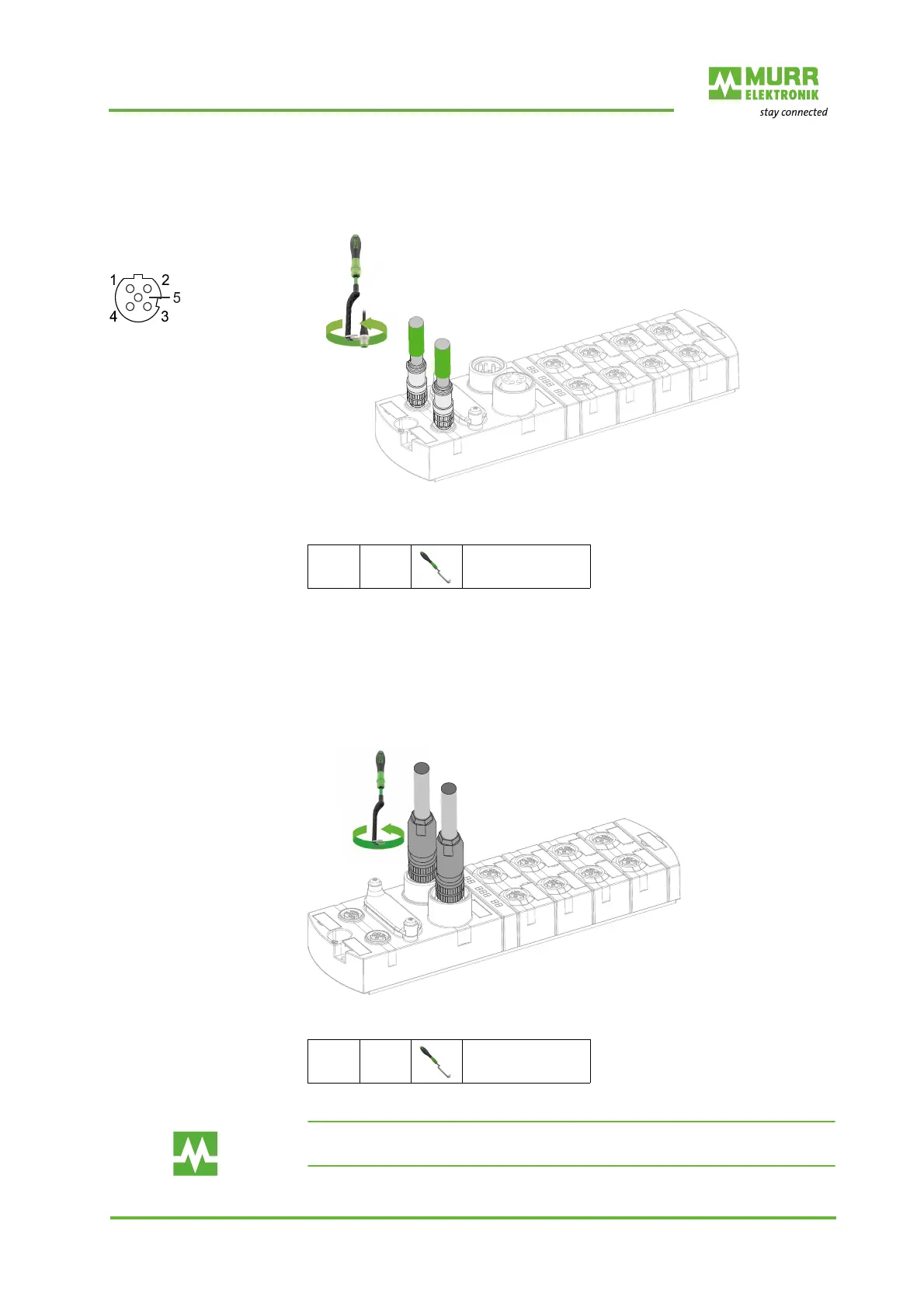

Fig. 6-2: Example of M12 connection (Ethernet bus)
6.1.3 Power supply connection
Connecting
7/8" male connector
POWER IN
Connecting
7/8" female connector
POWER OUT
Fig. 6-3: Example of 7/8" connection (POWER)
You will find a wide range of connecting wires in the catalog or in the online
shop of Murrelektronik GmbH at: http://shop.murrelektronik.com
M12 0,6 Nm
Art.-No.
7000-99102-0000000
7/8’’ 1,5 Nm
Art.-No.
7000-99104-0000000
