User manual 55530_hdb_en_16 25 / 156
3.4.3 Display elements
NOTE
For further information on the behavior of the LEDs, please refer to chap. 9.1
"LED indications".

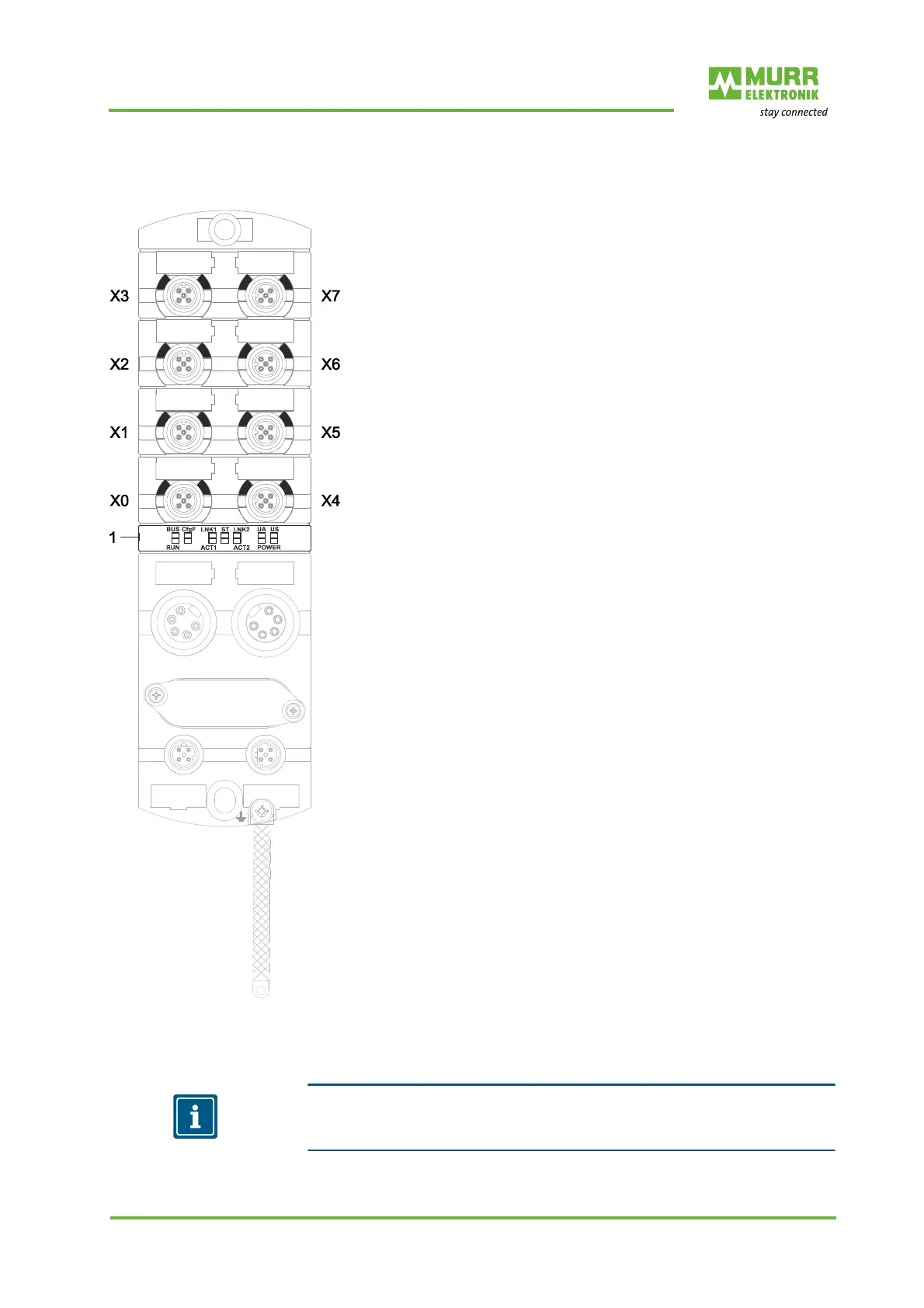

Fig. 3-9: Module structure
Art.-No. 55530
X0 ... X7 LED digital inputs and digital outputs
Art.-No. 55531
X0 ... X5 LED digital inputs and digital outputs
X6, X7 LED digital inputs and digital outputs
or IO-Link
Art.-No. 55532
X0 ... X3 LED digital inputs and digital outputs
X4 ... X7 LED digital inputs and digital outputs
or IO-Link
1 LED BUS RUN
LED CfgF
LED LNK1/ACT1
LED status (ST)
LED LNK2/ACT2
LED POWER UA
LED POWER US/PROFIenergy
