Notifications from the
device

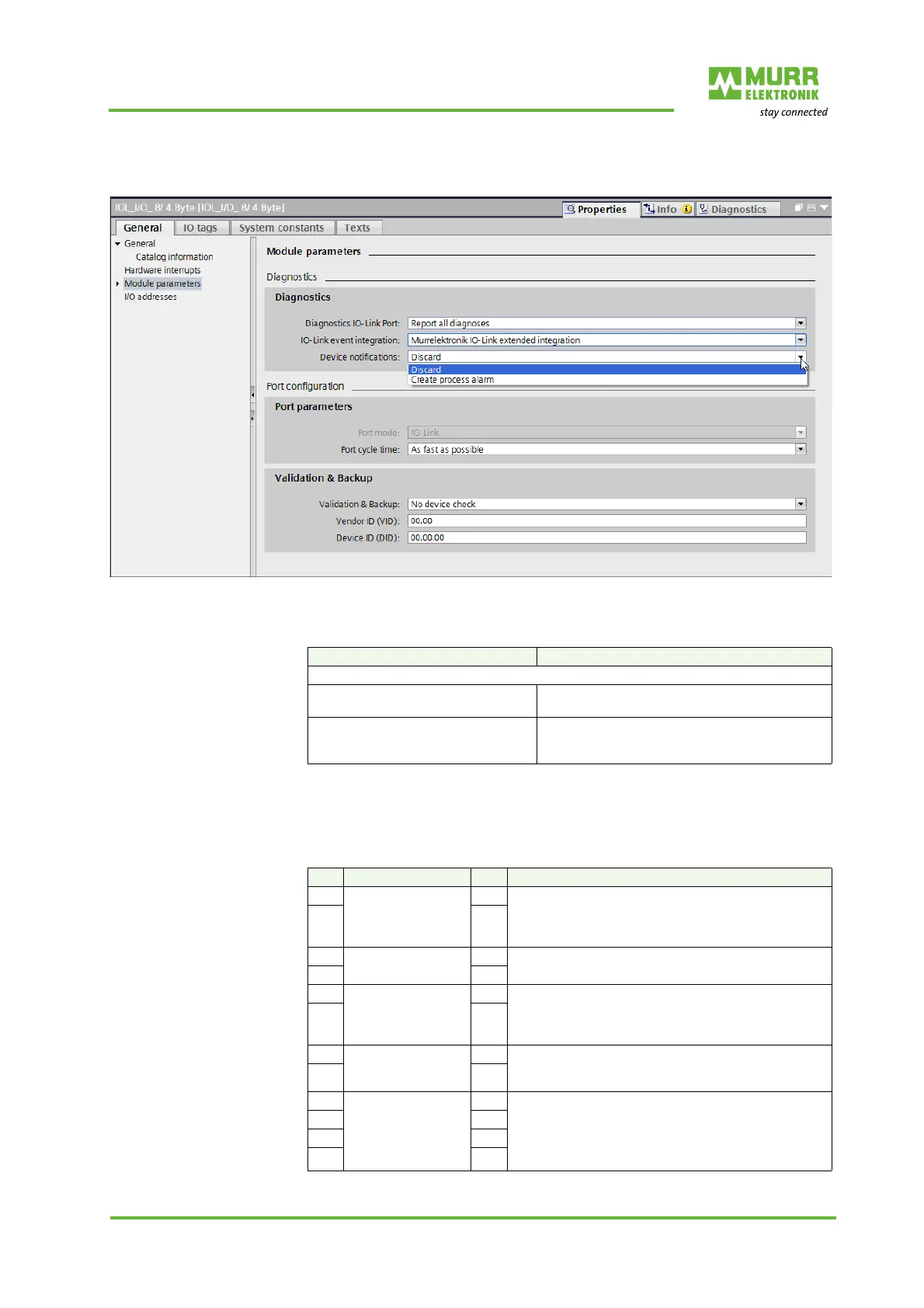

Fig. 8-25: Processing of the "Notification" events
Processing the "Notification" IO-Link events
Tab. 8-22: Processing of the "Notification" events
Property of the generated PROFINET process alarm:
User Structure Identifier (Format): 0x8320
Process alarm data
Tab. 8-23: Process alarm data
Selection Meaning
D = Default
Discard D IO-Link events of the "Notification" type are dis-
carded and are not forwarded.
Greate process alarm For every "Notification" IO-Link event that is
sent by the IO-Link device, a PROFINET pro-
cess alarm is generated.
Byte Meaning Value
0 Channel number MSB == 0x8000: No channel information available
!= 0x8000: Channel number (only for parameteriza-
tion of the extended integration of the Murrelektronik
IO-Link)
1LSB
2 Channel properties MSB 0x0000
3LSB
4 Reason for alarm MSB 0x9500: IO-Link event code 0x0000 (0) - 0x7FFF
(32767)
0x9501: IO-Link event code 0x8000 (32768) -
0xFFFF (65535)
5LSB
6 Reason for alarm
extended
MSB With reason for alarm 0x9500: IO-Link event code
With reason for alarm 0x9501: IO-Link event code
minus 0x8000 (32768)
7LSB
8 Reason for alarm
Additional value
MSB 0x00000000
9
10
11 LSB
