Cube67 System Manual
10 V 2.5
3 The Cube67 System

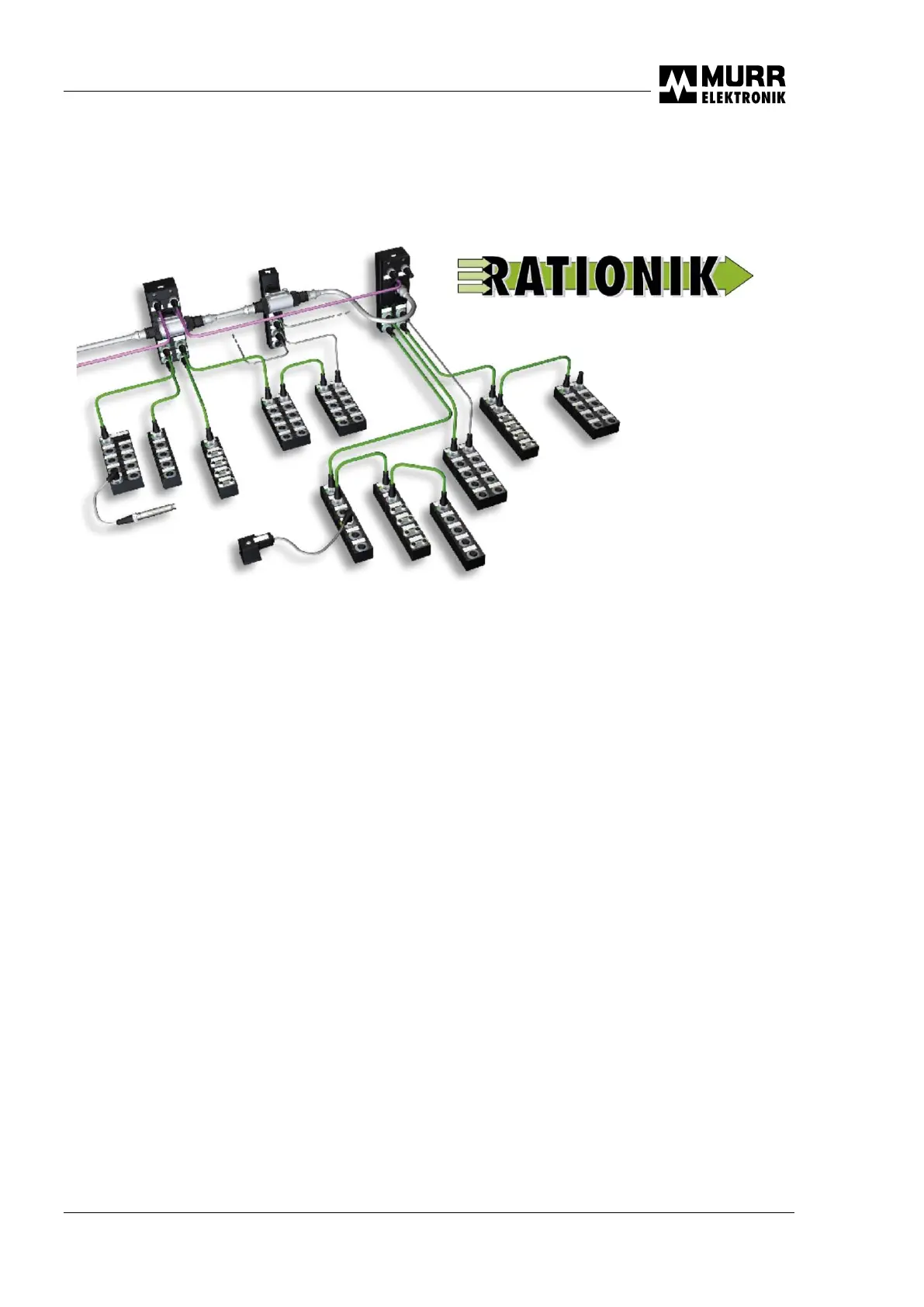

Fig. 3-1 : The Cube67 System
The Cube67 System is a tailor-made solution designed for decentralized applications in automation
systems. This innovative system offers new possibilities:
Cost-effective decentralization...
... distributed, modular, compact ,and robust design.
The I/O level is directly implemented in the machine, in the immediate proximity of sensors
and actuators, thus eliminating bulky and complex wiring.
Reduced dimensions ensure a compact and space-saving design of the machine.
Maximum flexibility...
... assured by multifunctional I/Os.
i.e. free parameterizability of the two signals per slot, whether input, diagnostic input or output.
"Fault detection instead of troubleshooting" all-round diagnostic.
i.e. detailed information regarding the type and location of failures.
Channel-related diagnostics.
- Short-circuit in sensor power supply.
- DESINA Diagnostics.
- Actuator disable in case of short-circuit to 0 V or overload.
- Actuator warning in case of short-circuit to +24 V.
Graded voltage monitoring with diagnostic function.
Monitoring, cutoff and diagnosis of the Cube67 system connection.
Mount, plug in done!
