Cube67 System Manual
29 V 2.5

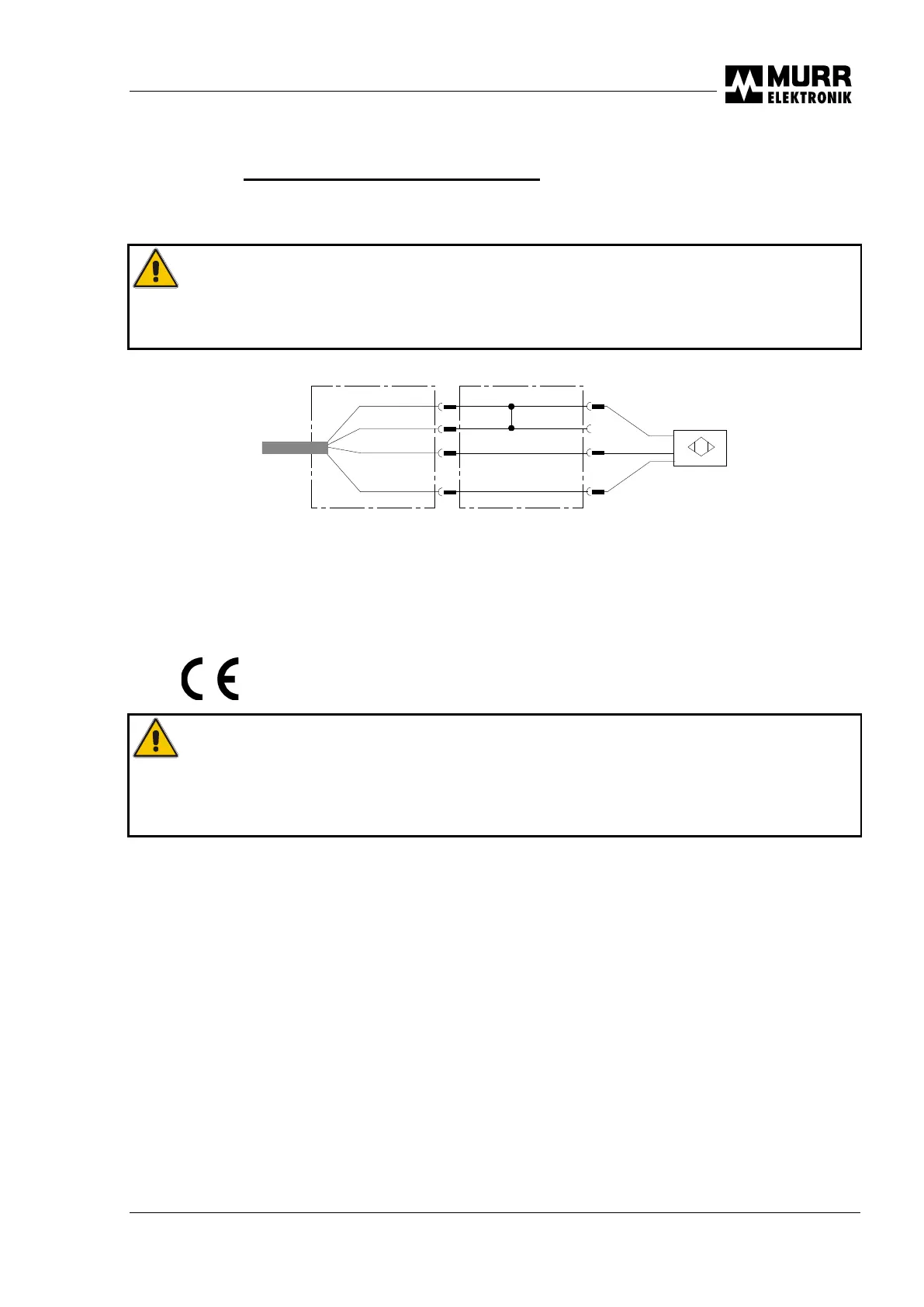

3.4.5.3 Monitoring a Line for Line Breaks
Murrelektronik GmbH supplies the M12 diagnostic adapter with a simple accessory that helps you to
monitor M12 lines to the sensors or actuators of your system for line breaks.
CAUTION:
Do not connect a line with LED in the plug to a Desina sensor; otherwise line break
cannot be detected.
1 (+)
2 Diagnosis
3 (-)
4 (S)
M12 adatpter with strap
1 (+)
3 (-)
4 (S)
M12 socket
Sensor
Fig. 3-7 : Monitoring a line for line breaks
3.5 Electromagnetic Compatibility (EMC)
This device meets the requirements specified in the EC Directive 2004/108/EC
"Electromagnetic Compatibility“
CAUTION:
This is Class A and B equipment. The system producer alone is responsible
for ensuring that the complete system complies with the applicable EMC
requirements.
Each of the devices described in this manual meets the EMC requirements laid down in the relevant
standards. However, this does not guarantee their electromagnetic compatibility when used in a system.
The user is therefore strongly recommended to observe the following information on installation to ensure
EMC protection. Only if these conditions are met and individually CE-labeled components are used may it
be assumed that the complete system meets the applicable EMC requirements.
