MUTOH SC-550 - Sideplate Right (ME-20600)

Maintenance Manual – SC Cutting Plotter
100 AP-74030, Rev / B

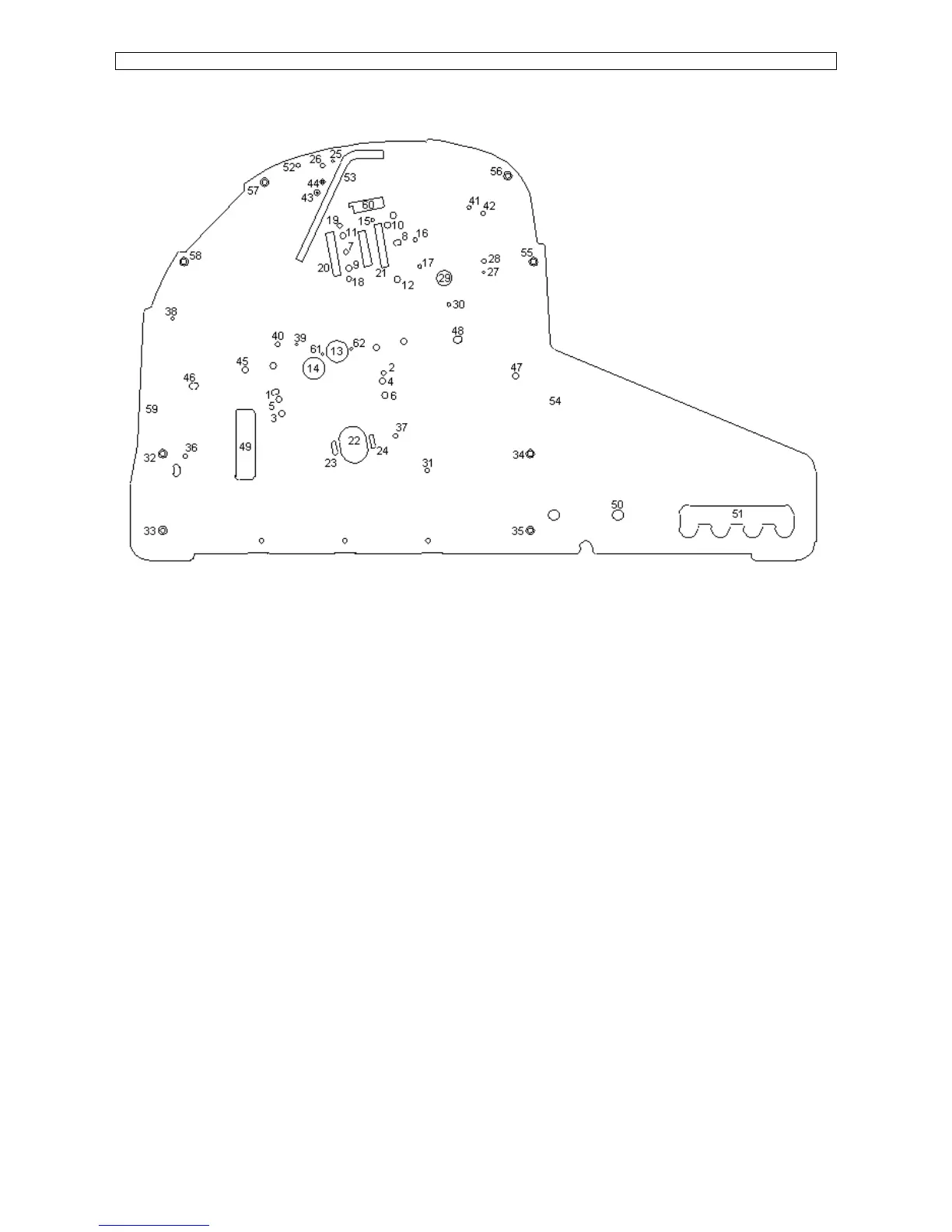

8.18. Sideplate right (ME-20600).
1 – 6 : X-rail
7 – 12 : Y-rail
13 : Grid shaft
14 : Cables paper sensors
15 – 19 : Y-motor bracket
20 – 21 : Y-belt
22 – 24 : X-motor
25 – 28 : L-brackets
29 : Hex shaft
30 : Spacer
31 : Hinge point UP/DOWN mech.
32 – 35 : Right metal box
36 : Hinge point UP/DOWN mech.
37 : Attachment screw for spring
38 : Rubber
39 – 40 : Cable guide
41 – 42 : UP/DOWN sensor bracket
43 – 44 : Cover sensor
45 – 48 : Platen front & rear
49 :
Cables ® PCB box
50 : Fixed conveyor roll
51 : Adjustable conveyor roll
52 : Transparent cover shaft
53 : Cover right
54 – 59 Cover right
60 Cables FFC & cover sensor
61 – 62 Screws for bearing
