Maintenance Manual – SC Cutting Plotter
90 AP-74030, Rev / B

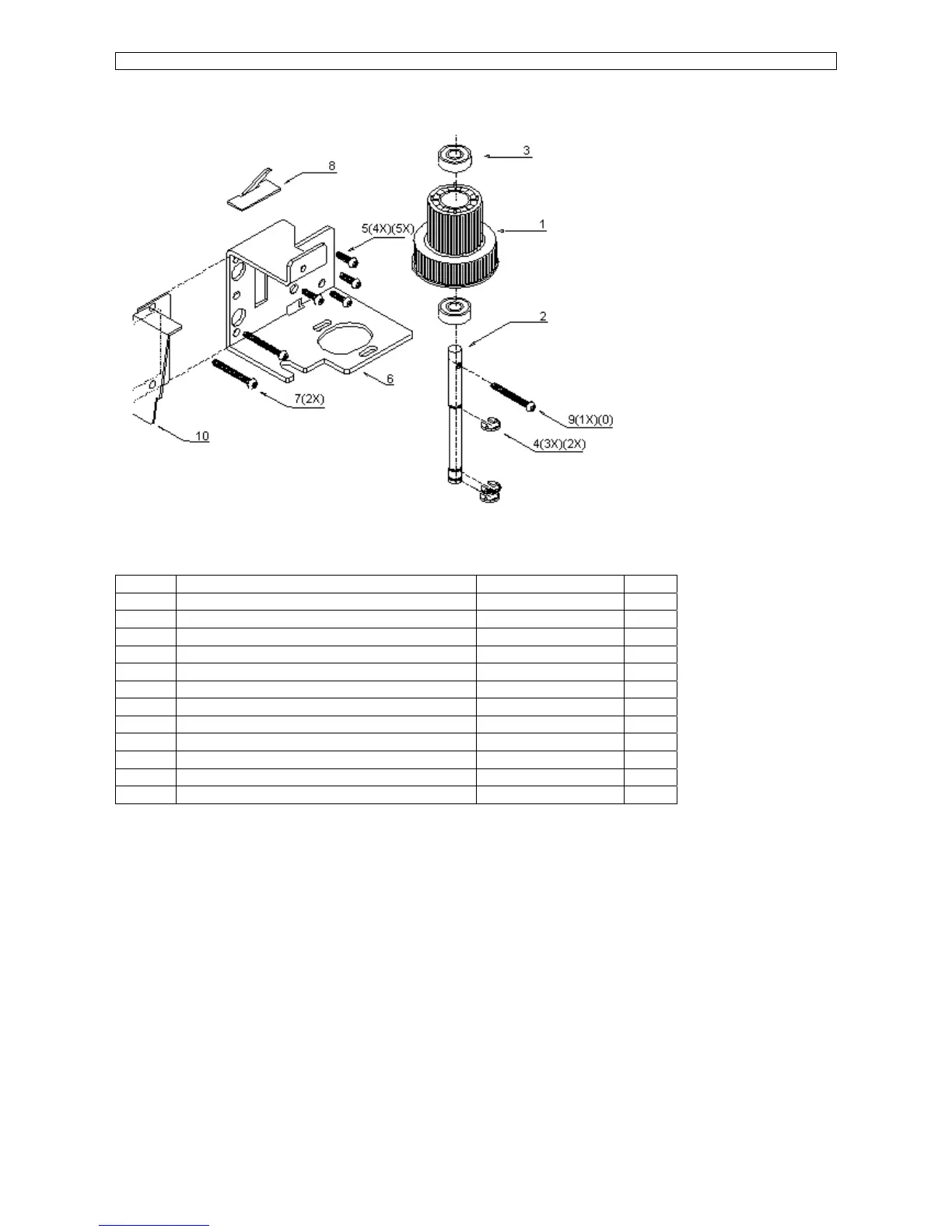

8.13. Y-drive pulley assy + mounting bracket.
Ref. Description Partnumber Qty
# Y-drive pulley assy MY-47657 1
1 Y-drive pulley DE-47057 1
2 Shaft ME-20059 1
3 Bearing DE-47095 2
4 E-ring BR-31050 3 (2)
- ---------------------------------------------------------- --------------------------- -
5 Screw M3x10 DR-4001-43395 4 (5)
6 Y-motor bracket ME-20607 1
7 Screw 3.5x25 BM-2100-135025 2
8 Cable holder AE-91025 1
9 Screw M3x25 DR-4005-44614 1 (0)
10 Cable support plate ME-10109 1
