Maintenance Manual – SC Cutting Plotter
79 AP-74030, Rev / B

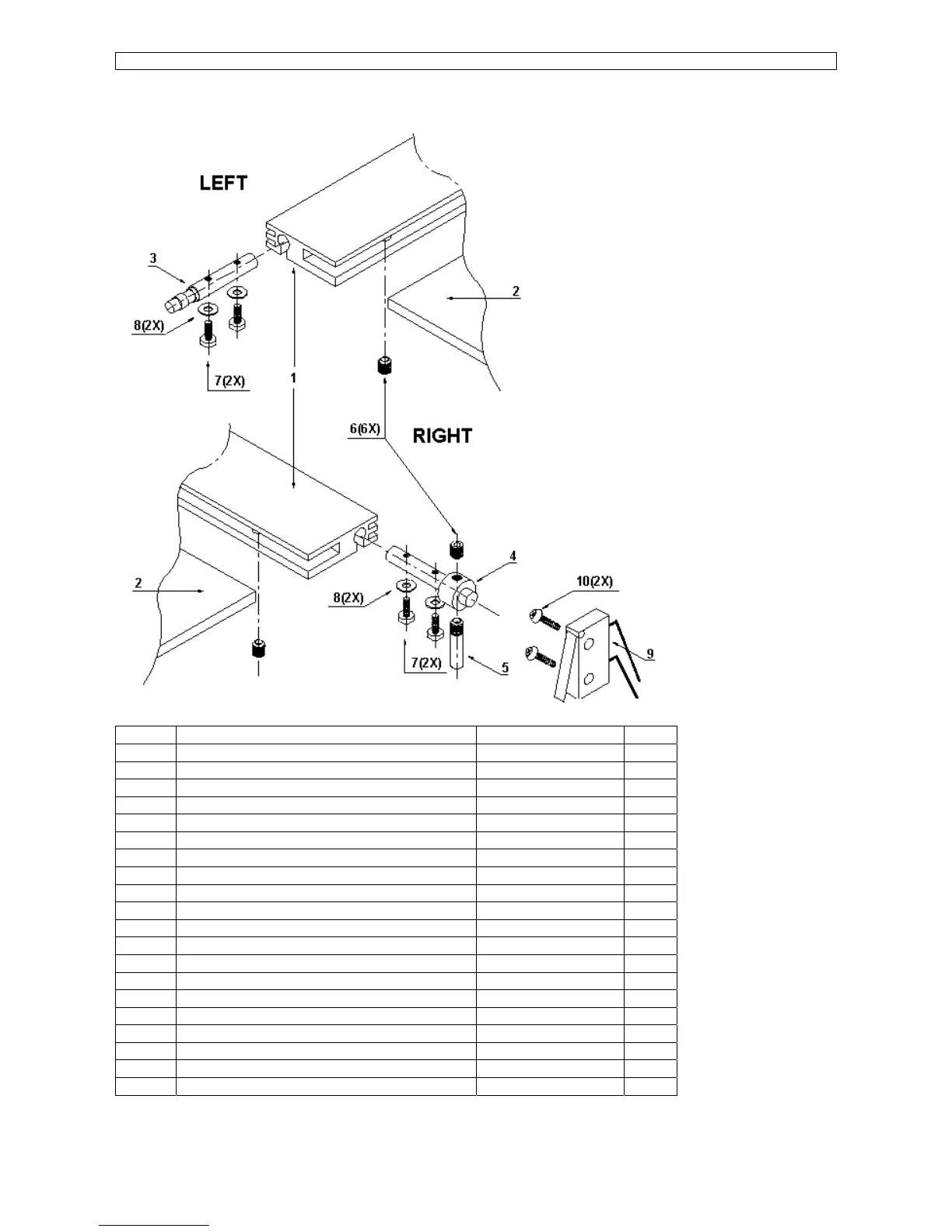

8.4. Transparent cover assy.
Ref. Description Partnumber Qty
# Transparent cover assy SC-650 MY-20631 1
# Transparent cover assy SC-750 MY-20731 1
# Transparent cover assy SC-1000 MY-21631 1
# Transparent cover assy SC-1300 MY-21252 1
1 Cover guide SC-650 ME-20632 1
1 Cover guide SC-750 ME-20732 1
1 Cover guide SC-1000 ME-21632 1
1 Cover guide SC-1300 ME-21253 1
2 Transparent cover SC-650 ME-20631 1
2 Transparent cover SC-750 ME-20731 1
2 Transparent cover SC-1000 ME-21631 1
2 Transparent cover SC-1300 ME-21252 1
3 Shaft left ME-20635 1
4 Shaft right ME-20648 1
5 Switch activator shaft ME-20633 1
6 Set screw M3x3 DR-4007-44579 6
7 Screw M2x5 BM-1400-002005 4
8 Washer M2 BR-11252 4
9 Cover switch EY-41761 1
10 Screw M2x8 BM-1400-002008 2
