MUTOH SC-550 - Head Flex Cable Assy

Maintenance Manual – SC Cutting Plotter
81 AP-74030, Rev / B

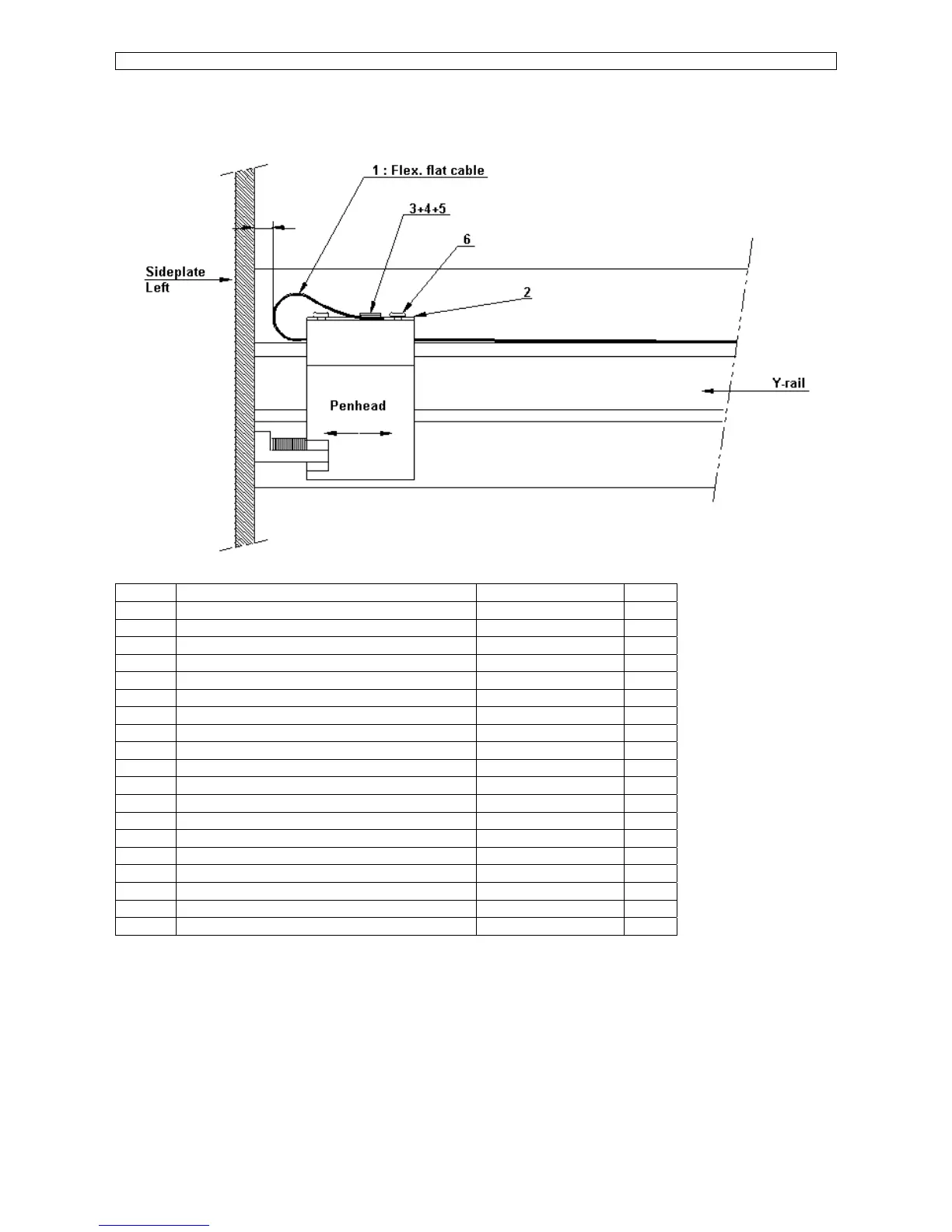

8.6. Head flex cable assy.
Ref. Description Partnumber Qty
# Head FFC cable assy SC-650 MY-20571 1
# Head FFC cable assy SC-750 MY-20572 1
# Head FFC cable assy SC-1000 MY-573 1
# Head FFC cable assy SC-1300 MY-20574 1
1 Head FFC cable SC-650 (1
st
) MK-60867 1
1 Head FFC cable SC-650 (2
nd
) MK-60806 1
1 Head FFC cable SC-650 (1
st
) MK-60868 1
1 Head FFC cable SC-650 (2
nd
) MK-60807 1
1 Head FFC cable SC-650 (1
st
) MK-60869 1
1 Head FFC cable SC-650 (2
nd
) MK-60810 1
1 Head FFC cable SC-650 (1
st
) MK-60863 1
1 Head FFC cable SC-650 (2
nd
) MK-60813 1
2 Head cable PCboard (1
st
version) EY-20571 1
2 Head cable PCboard (2
nd
version) EY-21571T 1
3 Strain relief plate ME-20665 1
4 Strain relief rubber ME-20666 1
5 Screw M3x6 strain relief BM-1400-003006 2
- ---------------------------------------------------------- --------------------------
6 Screw M3x4 DR-4001-43993 2
