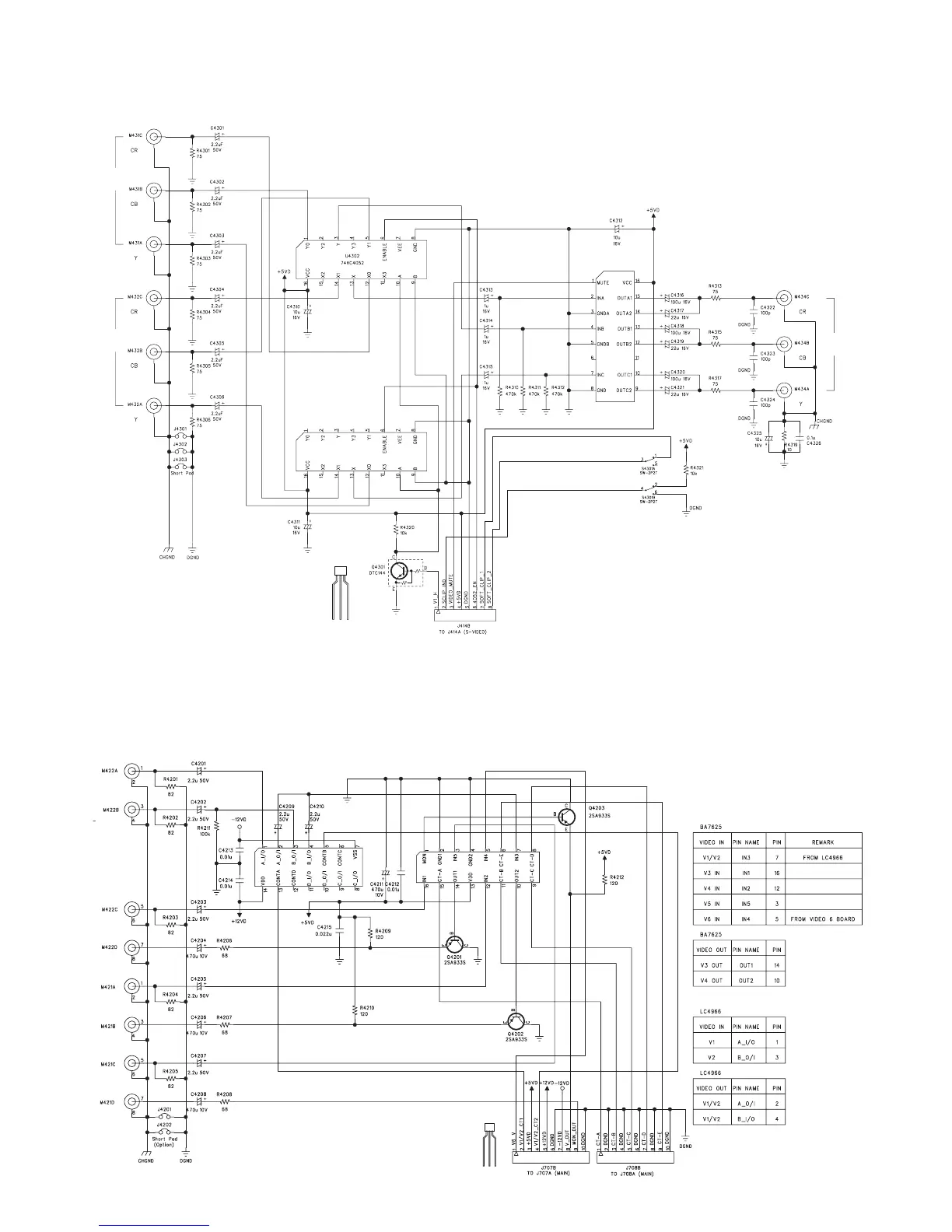

NAD T 752 - SCHEMATIC DIAGRAM; COMPOSITE VIDEO; COMPONENT VIDEO

24
E C B
2SA933
MONITOR OUT
VIDEO 5 IN
VIDEO 4 OUT
VIDEO 3 OUT
VIDEO 4 IN
VIDEO 3 IN
VIDEO 2 IN
U4201
LC4966
U4202
BA7625
VIDEO 1 IN
COMPONENT VIDEO
U4301
BA7760FS
U4302
74HC4052
U4303
74HC4052
DTC144ESA
E C B
COMPONENT
VIDEO 1
COMPONENT
VIDEO 2
COMPONENT
VIDEO OUT
RESISTORS : UNLESS OTHERWISE SPECIFIED ARE CARBON FILM.
NOTE:
1. RESISTORS, UNLESS OTHERWISE SPECIFIED, ARE 1/6W, 5%.
2. ALL CERAMIC CAPACITORS, UNLESS OTHERWISE SPECIFIED, ARE 50V, 10%.
COMPOSITE VIDEO
RESISTORS : UNLESS OTHERWISE SPECIFIED ARE CARBON FILM.
NOTE:
1. RESISTORS, UNLESS OTHERWISE SPECIFIED, ARE 1/6W, 5%.
2. ALL CERAMIC CAPACITORS, UNLESS OTHERWISE SPECIFIED, ARE 50V, 10%.
