NAD T 752 - FRONT; CENTER AMPLIFIER

31
FRONT RIGHT
CHANNEL
FRONT LEFT
CHANNEL
FL SPK FR SPK CENTER SPK
CENTER
CHANNEL
E C B
2SA1016 2SC2362
B C E
2SA1606 2SC4159
B C E
2SA2031 2SC5669
E C B
2SC1740S
E C B
2SB772
E C B
2SD600
DTC123ESA
E C B

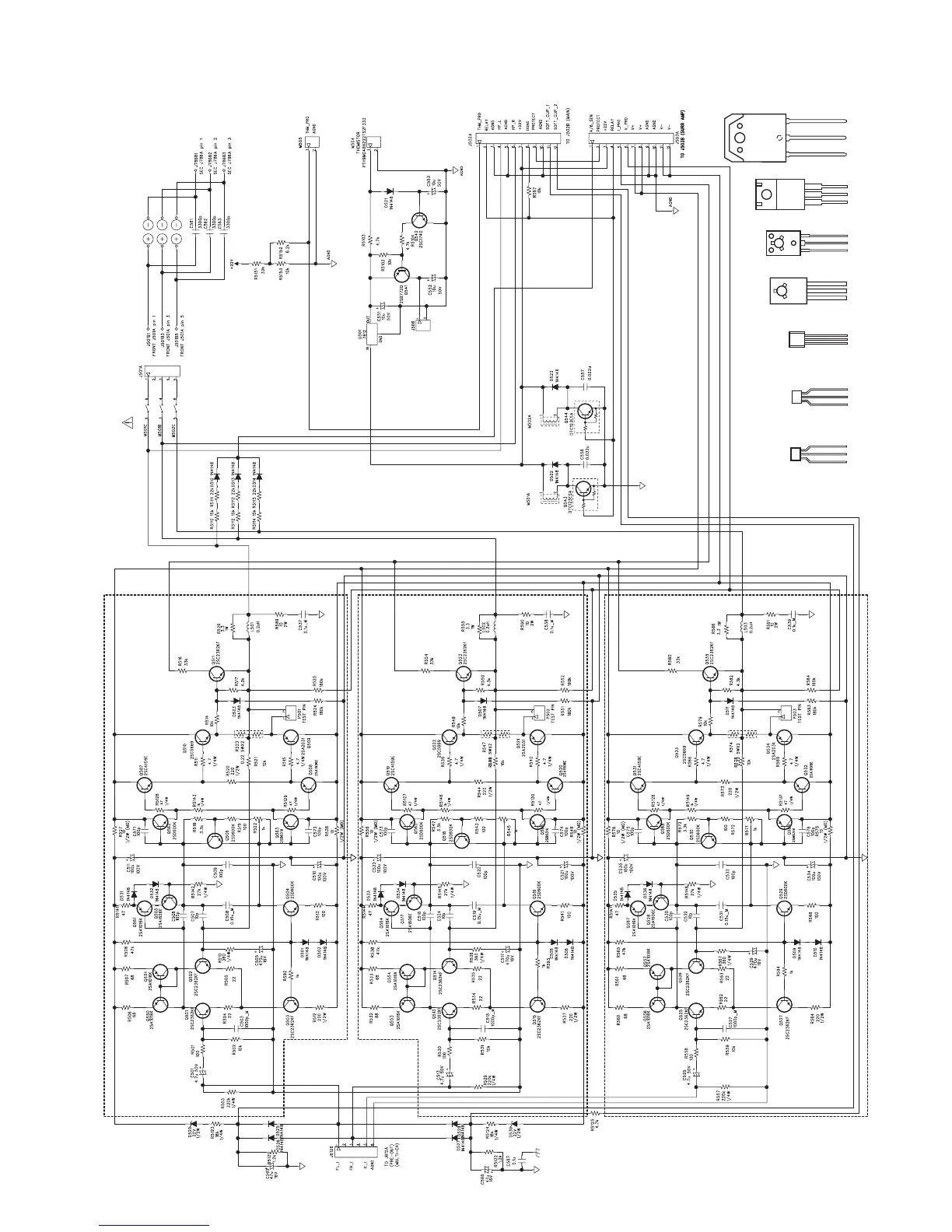

FRONT / CENTER AMPLIFIER
NOTE: 1. RESISTORS, UNLESS OTHERWISE SPECIFIED, ARE 1/6W, 5%. 2. ALL CERAMIC CAPACITORS, UNLESS OTHERWISE SPECIFIED, ARE 50V, 10%. 3. COMPONENTS MARKED “
” ARE SAFETY CRITIAL PARTS.
RESISTORS : CE-CERAMIC CASE, MO-METAL OXIDE, UNLESS OTHERWISE SPECIFIED ARE CARBON FILM.
