NAD T 752 - DSP, DIGITAL IN;OUT

33
Cutting line for folded page!
DIGITAL IN/OUT
U1001
CS49326-CL
U1009
74LVC574
U1008
74LVC574
U1014
74LVC245A
U1017
IC-74HC251
8CH
MULTIPLEXER
DIGITAL/AUDIO
INTERFACE RECEIVER
2 I/P SELECTOR
OCTAL BIDIRECTIONAL
TRANSCEIVER
OCTAL BIDIRECTIONAL
TRANSCEIVER
OCTAL
D-FLIP FLOP
OCTAL
D-FLIP FLOP
U1007
W27C020
EEPROM
256 X 8 BYTE
STEREO DAC
SURROUND SOUND CODE
DTS & MPEG
DECODER
U1005
CS8415A
U1004
74HC157
U1002
74HC245A
U1003
74LVC245A
U1022
CS4340
U1021
IC-CS4228
CS4228
E C B
2SC1815
E C B
RN1241
DTA114ESA
E C B

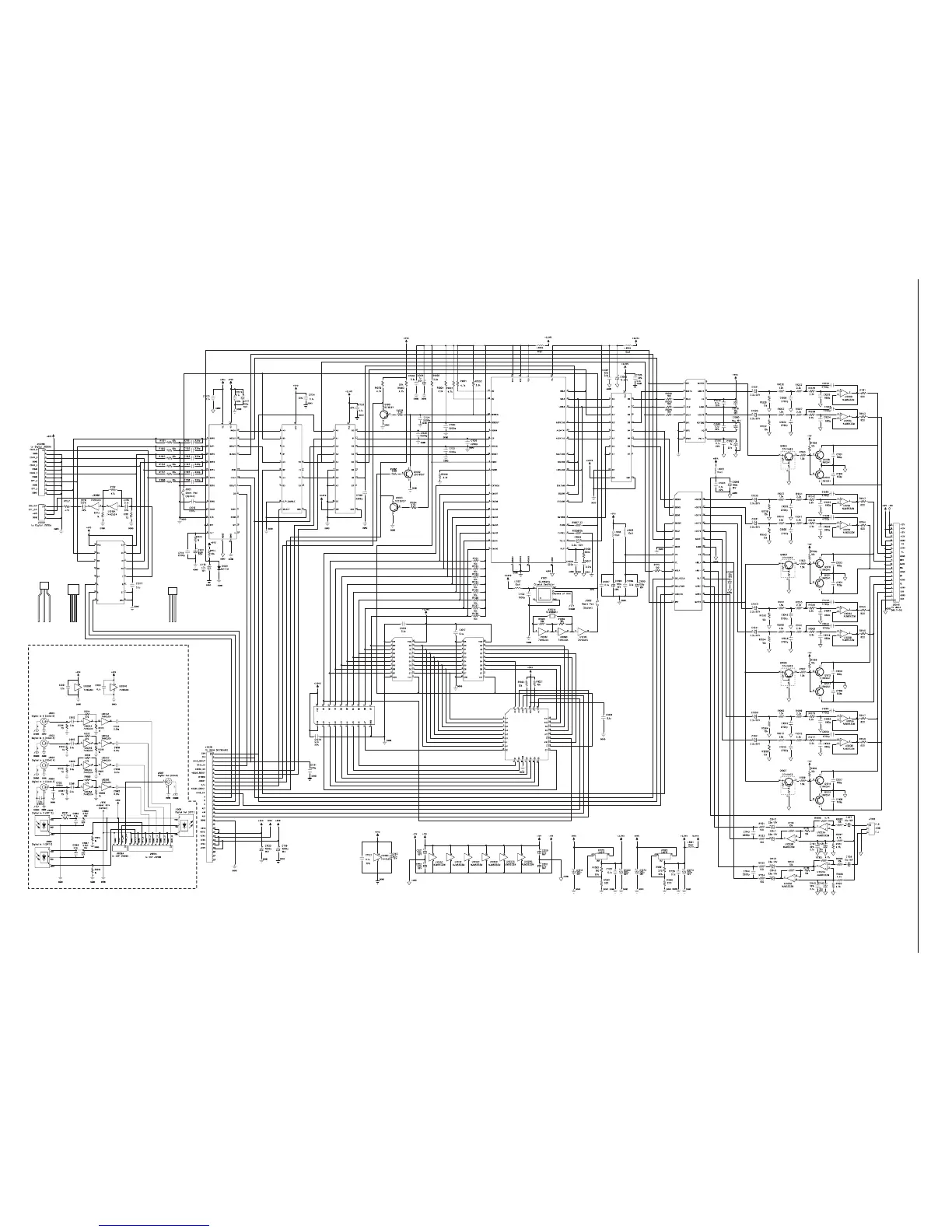

DSP, DIGITAL IN/OUT
NOTE:
1. RESISTORS, UNLESS OTHERWISE SPECIFIED, ARE 1/6W, 5%.
2. ALL CERAMIC CAPACITORS, UNLESS OTHERWISE SPECIFIED, ARE 50V, 10%.
