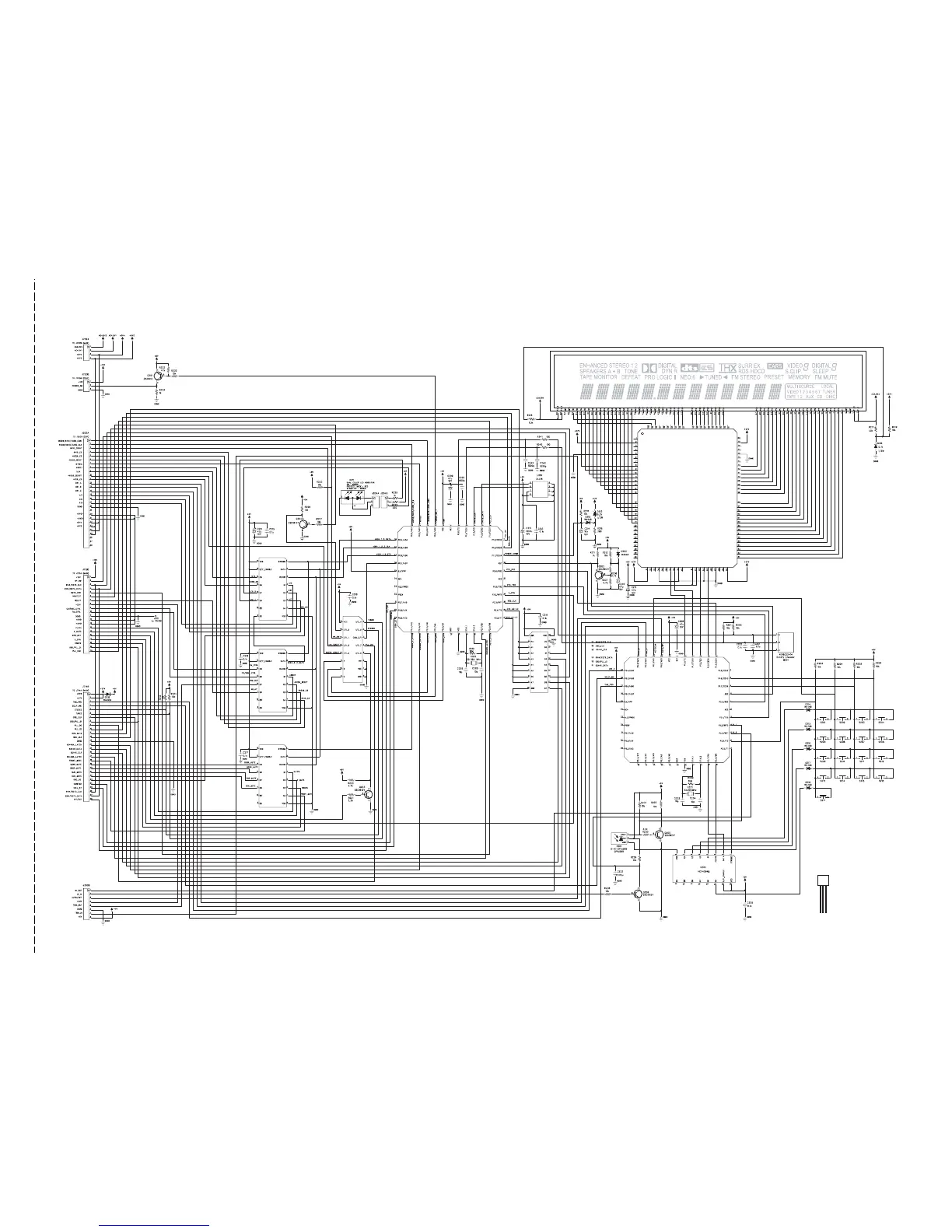

NAD T 752 - Keyboard

34
Cutting line for folded page!
VD201 VACUUM FLORECENT DISPLAY 16-BT-93GNK
E C B
2SC1815
U207
HCF4094B
U206
HCF4094B
U205
HCF4094B
U208
74HC4051
U209
74HC245
U201
8-BIT MICROCONTROLLER PLCC
M6759
EEPROM
2K BYTE
U202
8-BIT MICROCONTROLLER PLCC
M6759
U203
PT6306
64-BITS HIGH VOLTAGE
DISPLAY DRIVER IC
EXT 7 TAPE MON DISPLAY AM/FM
LEVELS VIDEO PRESET - SEARCH -
TONE
CONTROL
P/A
SELECTOR
TONE
DEFEAT
PRESET + SEARCH +
SURR
MODE
AUDIO MEM
FM MUTE/
MODE
KEYBOARD
NOTE:
1. RESISTORS, UNLESS OTHERWISE SPECIFIED, ARE 1/6W, 5%.
2. ALL CERAMIC CAPACITORS, UNLESS OTHERWISE SPECIFIED, ARE 50V, 5%.
