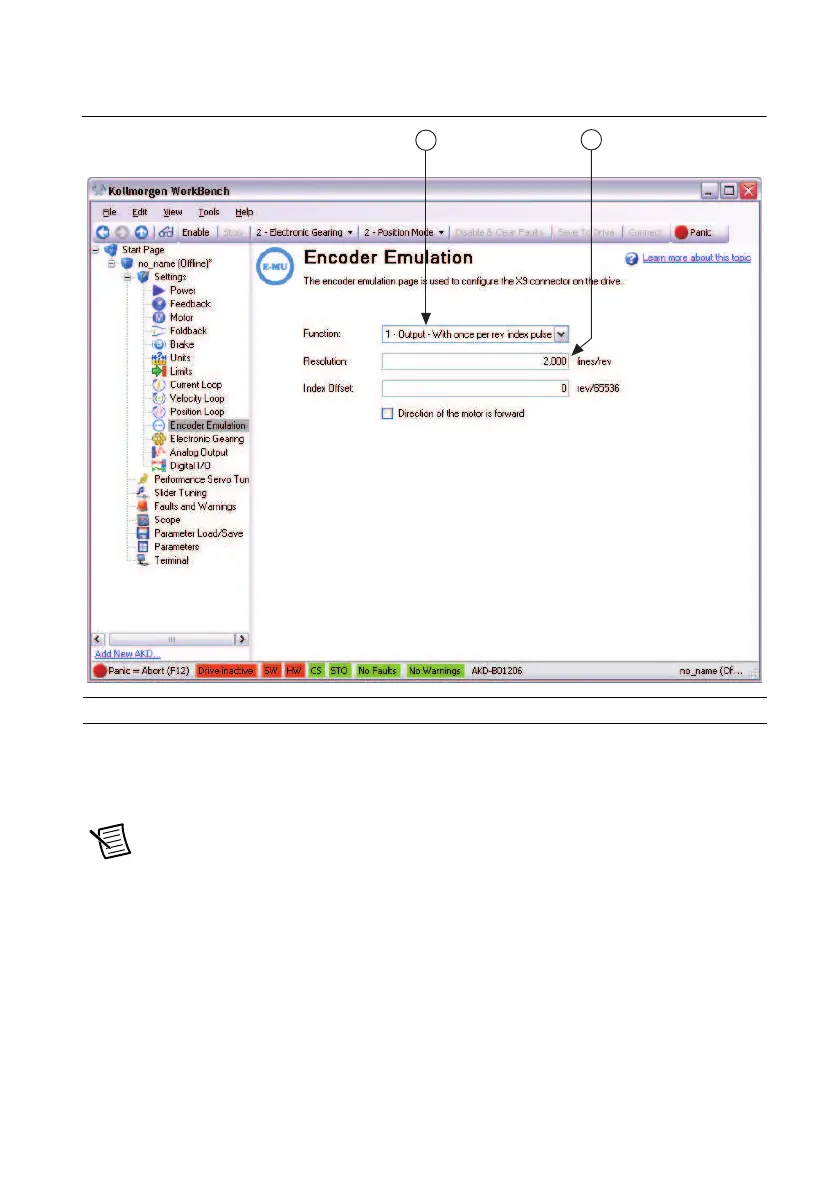

Figure 21 shows the AKD WorkBench Encoder Emulation page.
Figure 21. AKD WorkBench Encoder Emulation Page
6. Configure the analog input command scaling.
a. Expand the Settings tree item and open the Motor page.
b. Write down the motor Continuous Current value.
Note Motor continuous current is in Arms.
1 Function Setting 2 Resolution Setting
1
2
