30 | ni.com | Getting Started with NI 7340/7350 Controllers and AKD Drives

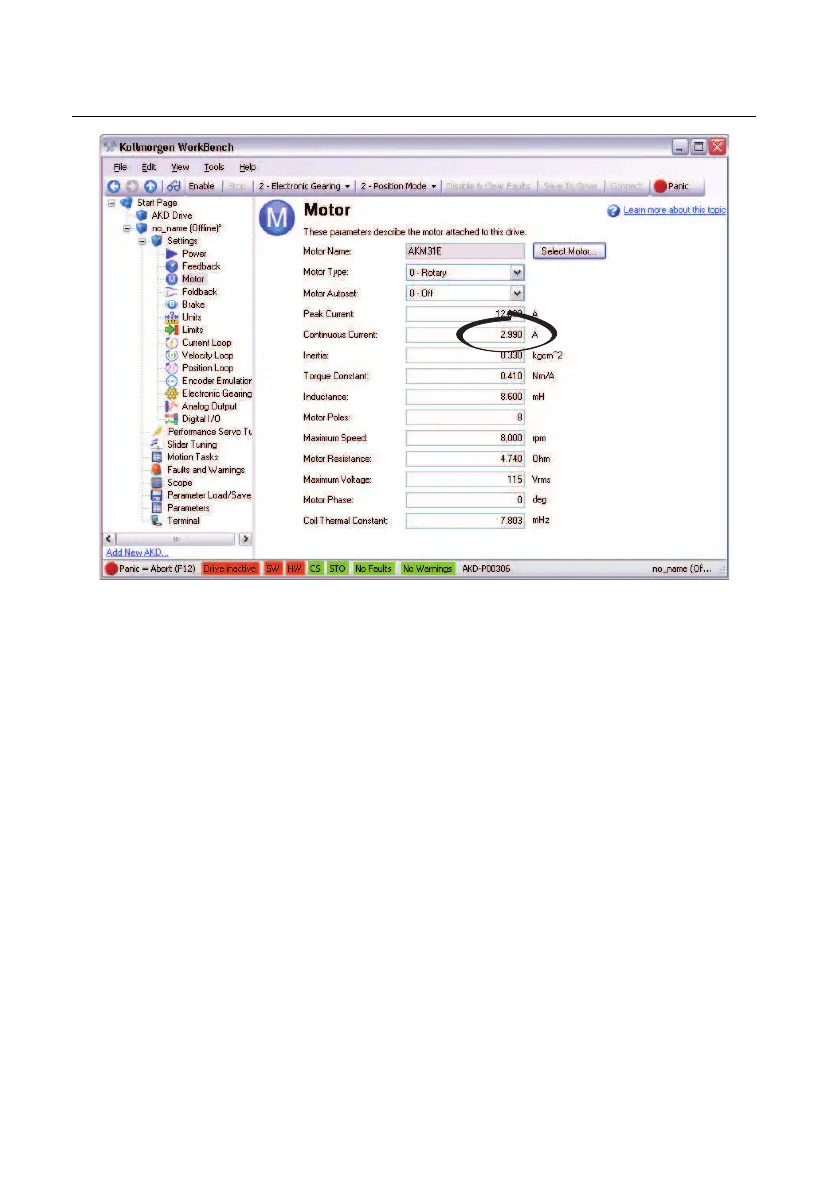

Figure 22 shows the AKD WorkBench Motor page.
Figure 22. AKD WorkBench Motor Page
c. Expand the Settings tree item and open the Analog Input page.
d. Set the Scale to the appropriate Arms/V value based on the following equation:
Scale = Motor continuous current / 10
For example, if you have a motor with a maximum current of 3.00 Arms set Scale to
0.3 Arms/V.
