Chapter 1 Getting Started with the SCB-68A
DIN Rail Mounting
The NI 9913 DIN rail mounting kit (part number 781740-01) contains one clip for mounting
the SCB-68A on a standard 35 mm DIN rail. Fasten the DIN rail clip to the accessory using
two FLH #6-32 × 5/16” screws (included in the kit) with a #2 Phillips screwdriver, as shown in
Figure 1-5.
Note The threaded holes on the SCB-68A for DIN rail mounting should not be used
more than five times. Unscrewing and reinstalling the DIN rail clip will produce a
compromised connection between the DIN rail clip and accessory.

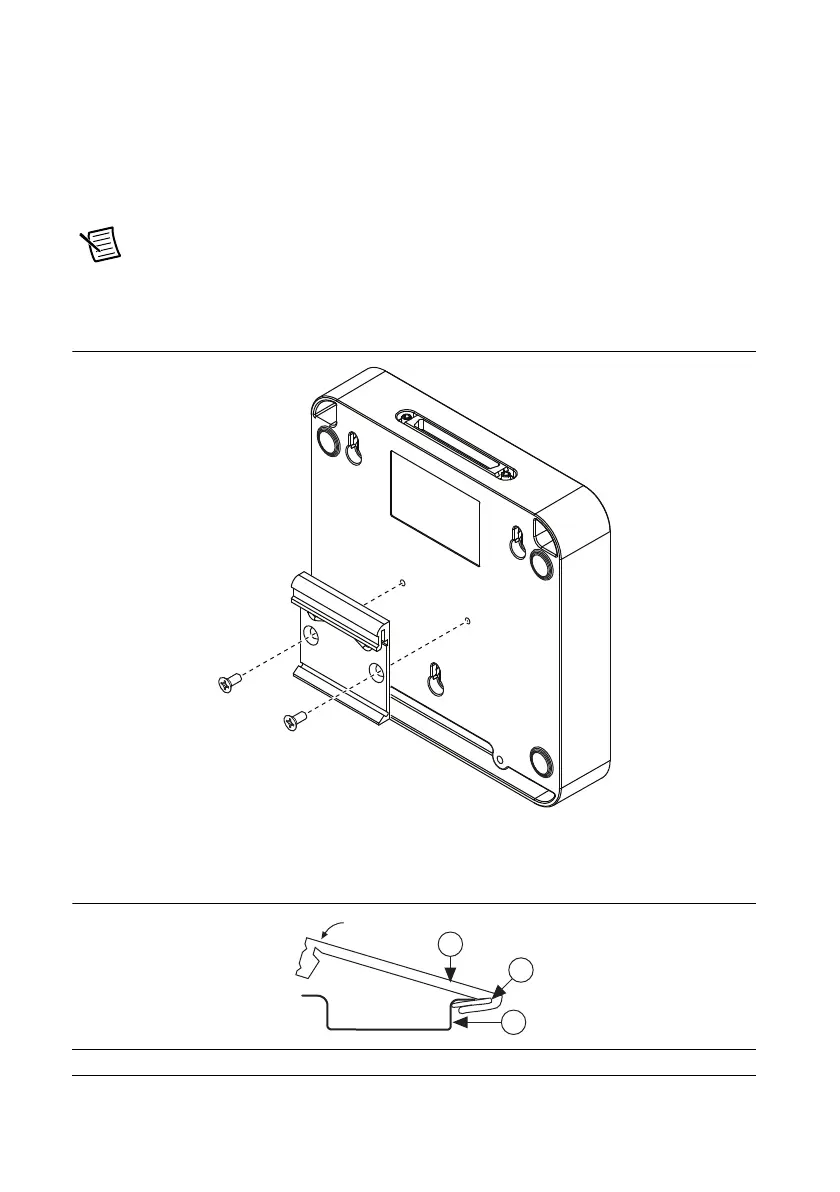

Figure 1-5. SCB-68A DIN Rail Clip Installation
Clip the chassis onto the DIN rail with the larger lip of the DIN rail clip positioned up, as shown
in Figure 1-6.
Figure 1-6. DIN Rail Clip Parts Locator Diagram
1 DIN Rail Clip 2 DIN Rail Spring 3 DIN Rail
1
2
3
