SCXI-1160 Module
This module controls 16 isolated SPDT relays. The module has three
user-configurable jumpers for configuring the type of DAQ device
connected to your module. Leave all other jumpers in the factory-default
positions.
The SCXI-1160 module is shipped configured for use with a DIO device.
Note
If you are not connecting the SCXI-1160 module directly to a DAQ device, you do
not need to change any jumper settings.
If you are connecting the SCXI-1160 directly to a DAQ device, set jumpers
W2, W3, and W4 according to whether the module is connected to an
analog device or a DIO device as shown in Table 3-28.
SCXI-1161 Module
The SCXI-1161 module controls eight SPDT relays. The module has three
user-configurable jumpers for configuring the type of DAQ device
connected to your module. Leave all other jumpers in the factory-default
positions.
The SCXI-1161 module is shipped configured for use with a DIO device.
Note
If you are not connecting the SCXI-1161 module directly to a DAQ device, you do
not need to change any jumper settings.

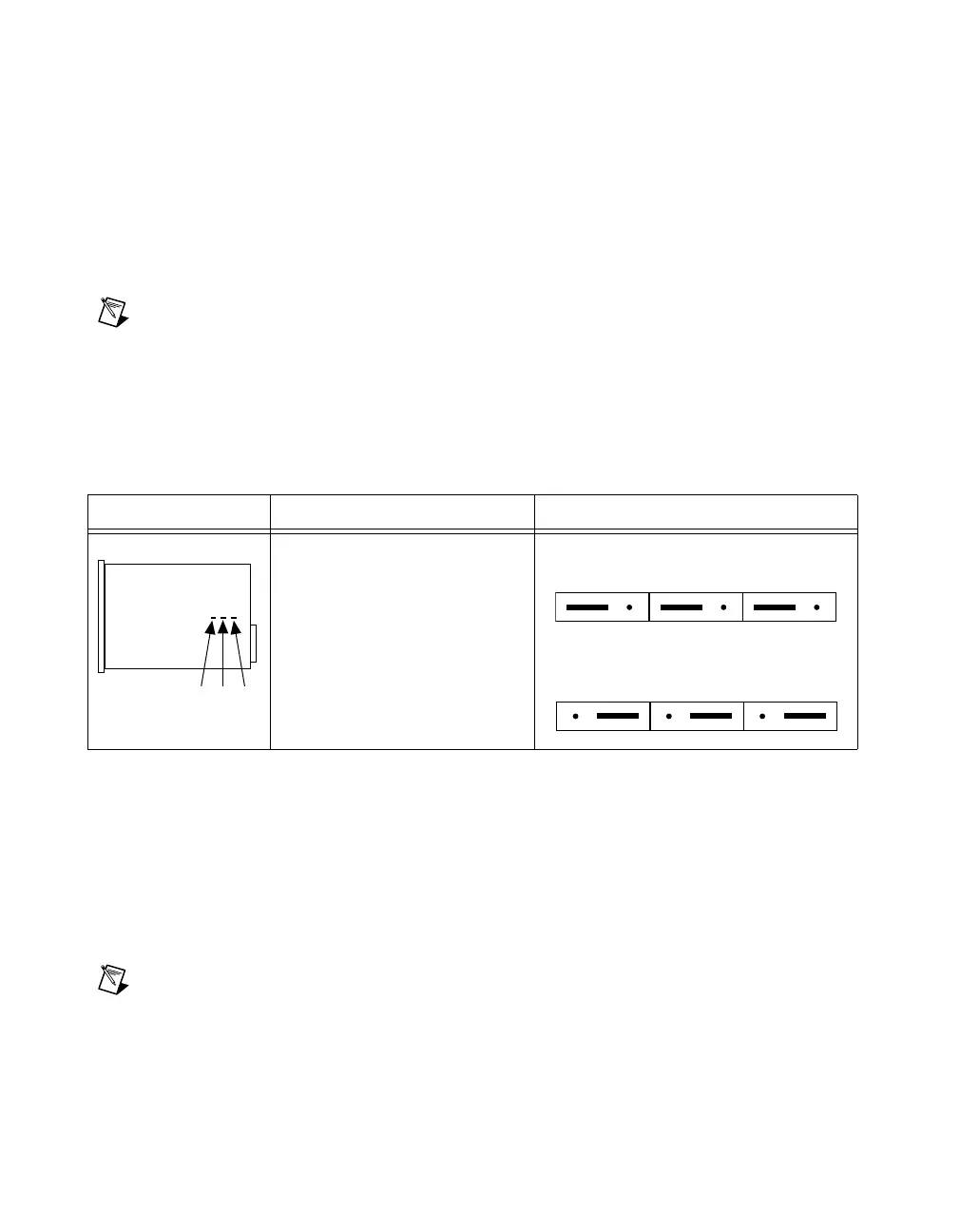

Table 3-28. SCXI-1160 Device-Type Configuration
Jumper Description Configuration
DIO—Use this setting to
connect the SCXI-1160 to a
DIO device (factory-default
position).
MIO—Use this setting if you
connect your SCXI-1160 to an
AI or MIO device, or a
Lab/1200 device.
W3 W4W2
W2
DIO MIO
W3
DIO MIO
W4
DIO MIO
W2
DIO MIO
W3
DIO MIO
W4
DIO MIO
