National Instruments SCXI Series Getting Started

Chapter 3 Configuring Your SCXI Hardware and Software
© National Instruments Corporation 3-39 Getting Started with SCXI
If you are connecting the SCXI-1161 directly to a DAQ device, set jumpers
W3, W4, and W5 according to whether the module is connected to an
analog device or a DIO device as shown in Table 3-29.
SCXI-1162 Module
This module has 32 optically-isolated digital inputchannels.Major features
include 450 V
rms
isolation, 1,900 V
rms
breakdown, TTL and CMOS
compatibility, and high-speed parallel data transfer to digital DAQ devices.
The module has four user-configurable jumpers for configuring the
operating mode and the type of DAQ device connected to your module.
Leave all other jumpers in the factory-default positions.
The SCXI-1162 module is shipped configured for use with a DIO device in
serial mode.
Note
You need to adjust jumpers on this module only if you connect the module directly
to an analog DAQ device or use the module in parallel mode. If either of these conditions
applies to you, read the rest of this section.

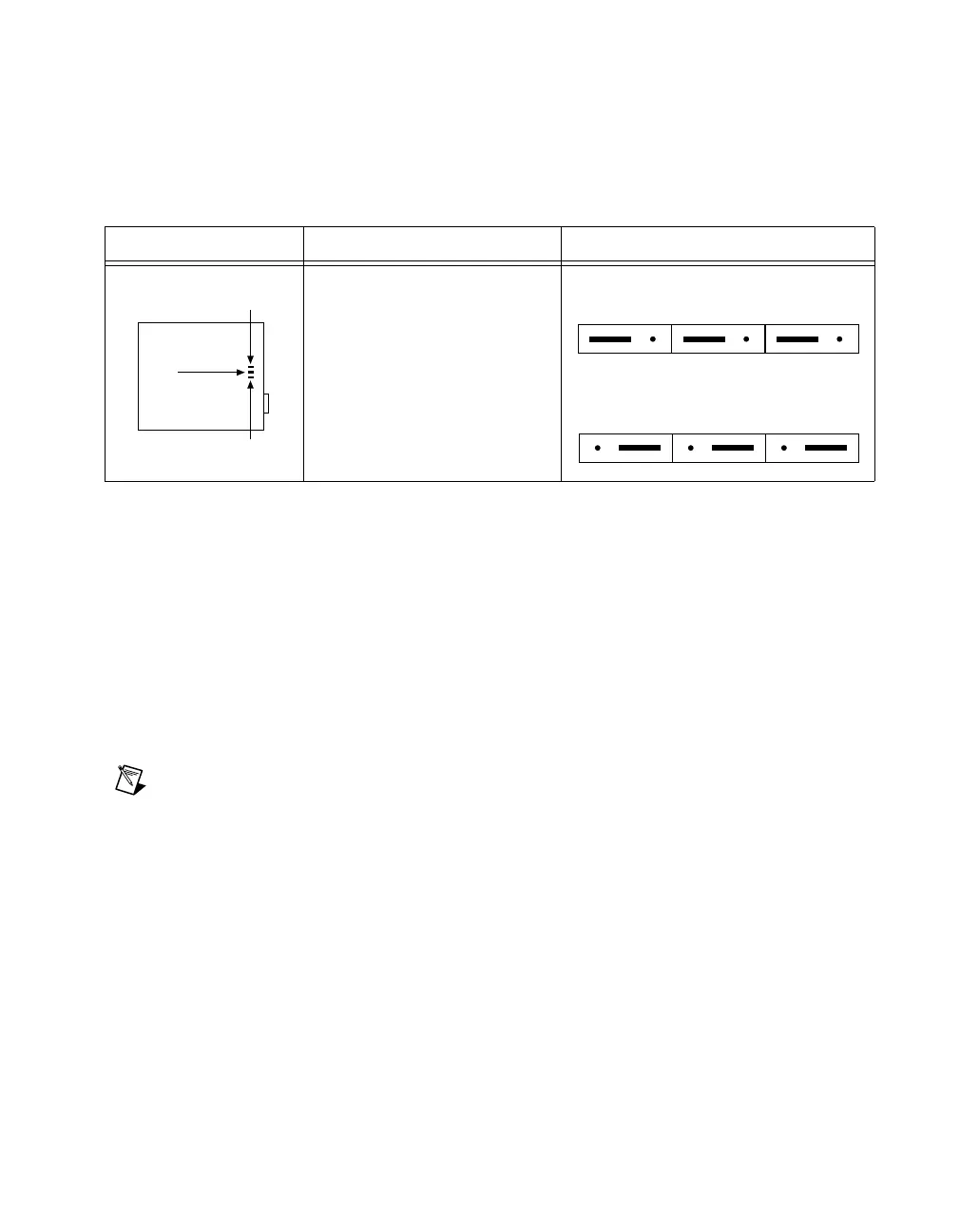

Table 3-29. SCXI-1161 Device-Type Configuration
Jumper Description Configuration
DIO—Use this setting to
connect the SCXI-1161 to a
DIO device (factory-default
position).
MIO—Use this setting if you
connect your SCXI-1160 to an
AI or MIO device or Lab /1200
device.
W3
W4
W5
W3
DIO MIO
W4
DIO MIO
W5
DIO MIO
W3
DIO MIO
W4
DIO MIO
W5
DIO MIO
