National Instruments SCXI Series Getting Started

Chapter 3 Configuring Your SCXI Hardware and Software
© National Instruments Corporation 3-41 Getting Started with SCXI
3. Select your device type—either analog or digital.
If this module is connected directly to a DAQ device, jumpers W3, W4,
and W6 specify to which type of device the module is connected. Set
jumpers W3, W4, and W6 to the DIO position if the module is
connected to a DIO-24, DIO-32, or DIO-96/PnP device. Set the
jumpers to the MIO position if the module is connected to an AI or
MIO device or Lab/1200 device. If you are using the SCXI-1162 in
parallel mode, set jumper W6 to the PAR position. If the module is not
connected directly to a DAQ device, the positions of W3, W4, and W6
are irrelevant.

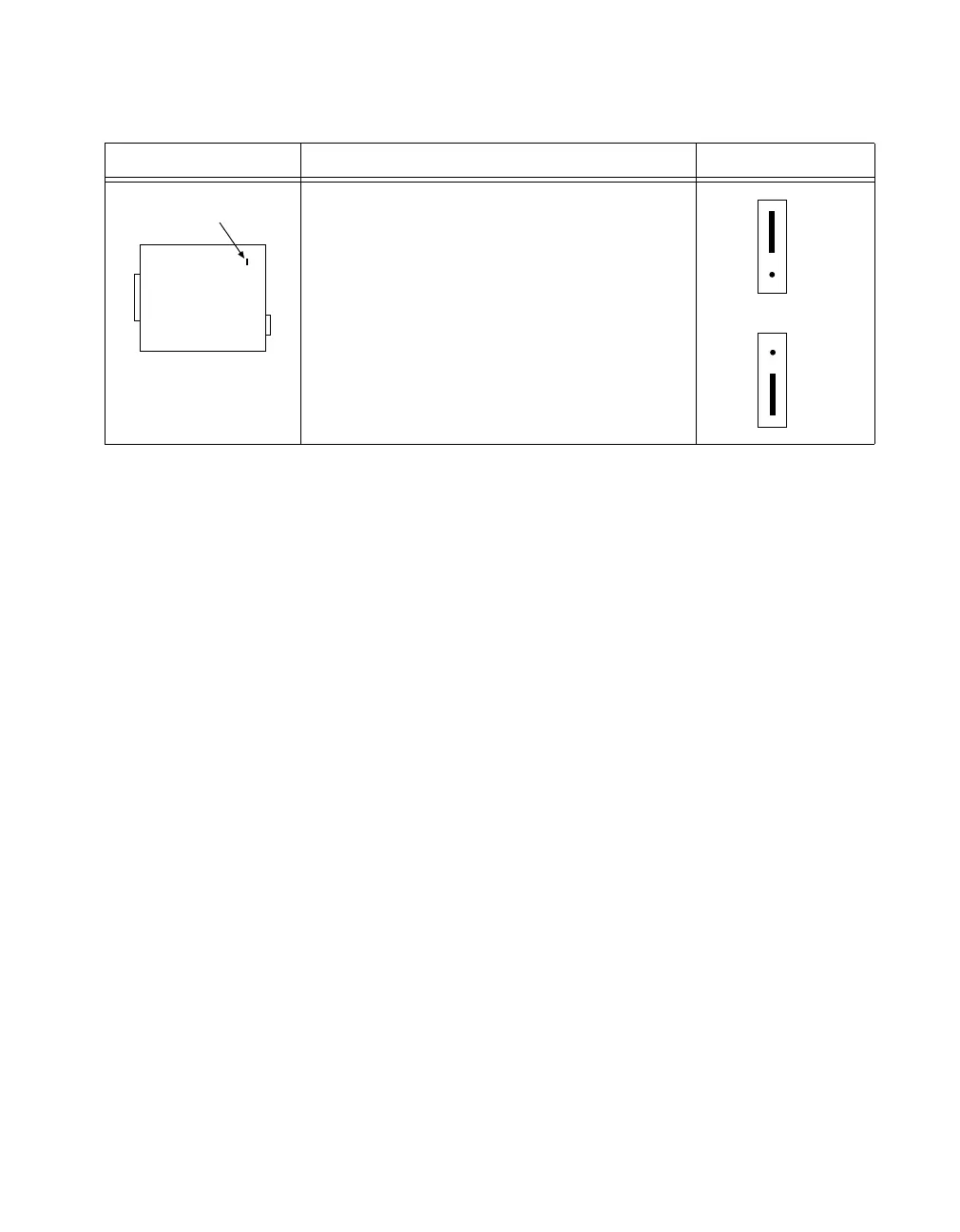

Table 3-31.
SCXI-1162 Parallel Lines Jumper Configuration
Jumper Description Configuration
24—Use this setting to drive only 24 rear
connector data lines when W2 is set to PAR
(factory-default position).
32—Use this setting to drive all 32 rear connector
data lines when W2 is set to PAR.
W1
24
32
24
32
