4.1 Front Panel

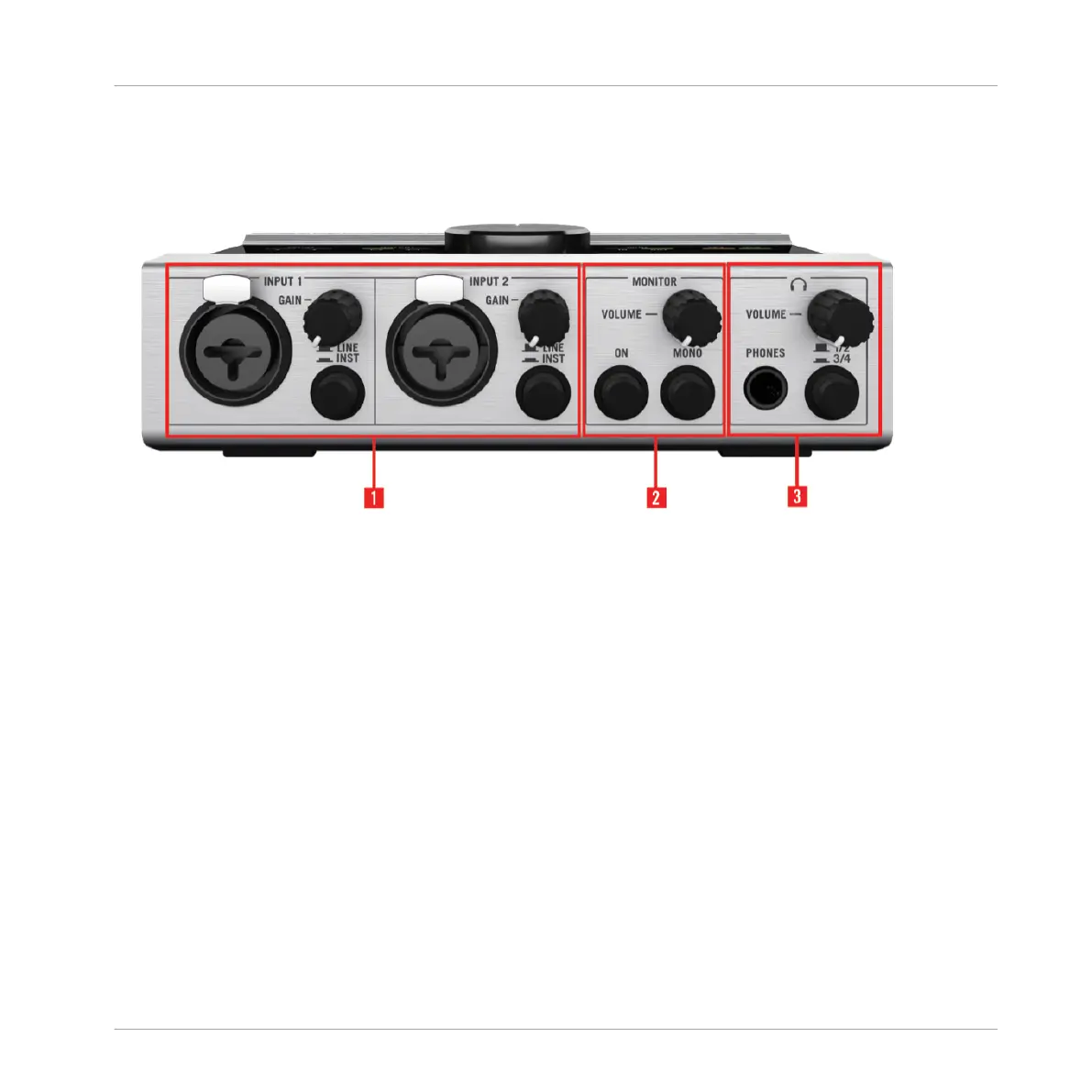

The front panel of the KOMPLETE AUDIO 6.
(1) INPUT 1 and INPUT 2 (Line and Microphone): These inputs have a combination socket for
use with XLR or 1/4" jack connectors. When connecting an XLR connector, an XLR lock latch-
es. You can easily release the connector by pressing the release tab.
The input GAIN knob lowers/raises the amount of signal going into the KOMPLETE AUDIO 6.
The LINE/INST toggle button selects either LINE mode for strong-signaled inputs (like a syn-
thesizer or the output of an electric piano) or INST for weak-signaled inputs (such as a guitar
or a bass guitar). XLR connected gear is not affected by this button.
(2) MONITOR section: The ON switch turns direct monitoring on/off. With direct monitoring ac-
tivated, the unaffected input signal will be heard with zero latency. The ON switch also dou-
bles as a monitor selector switch. When held for one second, it cycles through three monitor
modes: monitor signal to outputs OUT 1/2; monitor signal to outputs OUT 3/4; and monitor
signal to both output pairs OUT 1/2 and OUT 3/4. The LEDs from the MONITOR section on the
device's top panel display which monitoring mode is currently active.
The MONO switch toggles the monitor output selection between a mono signal and a stereo
signal. Switching to a mono setting aids in monitoring a mono signal, such as a guitar’s mono
input.
