Nautel VX150 - Figure MD-3: VX1.5;VX2 Transmitter (top view)

VERSION 2.0 2023-04-20 MD-3

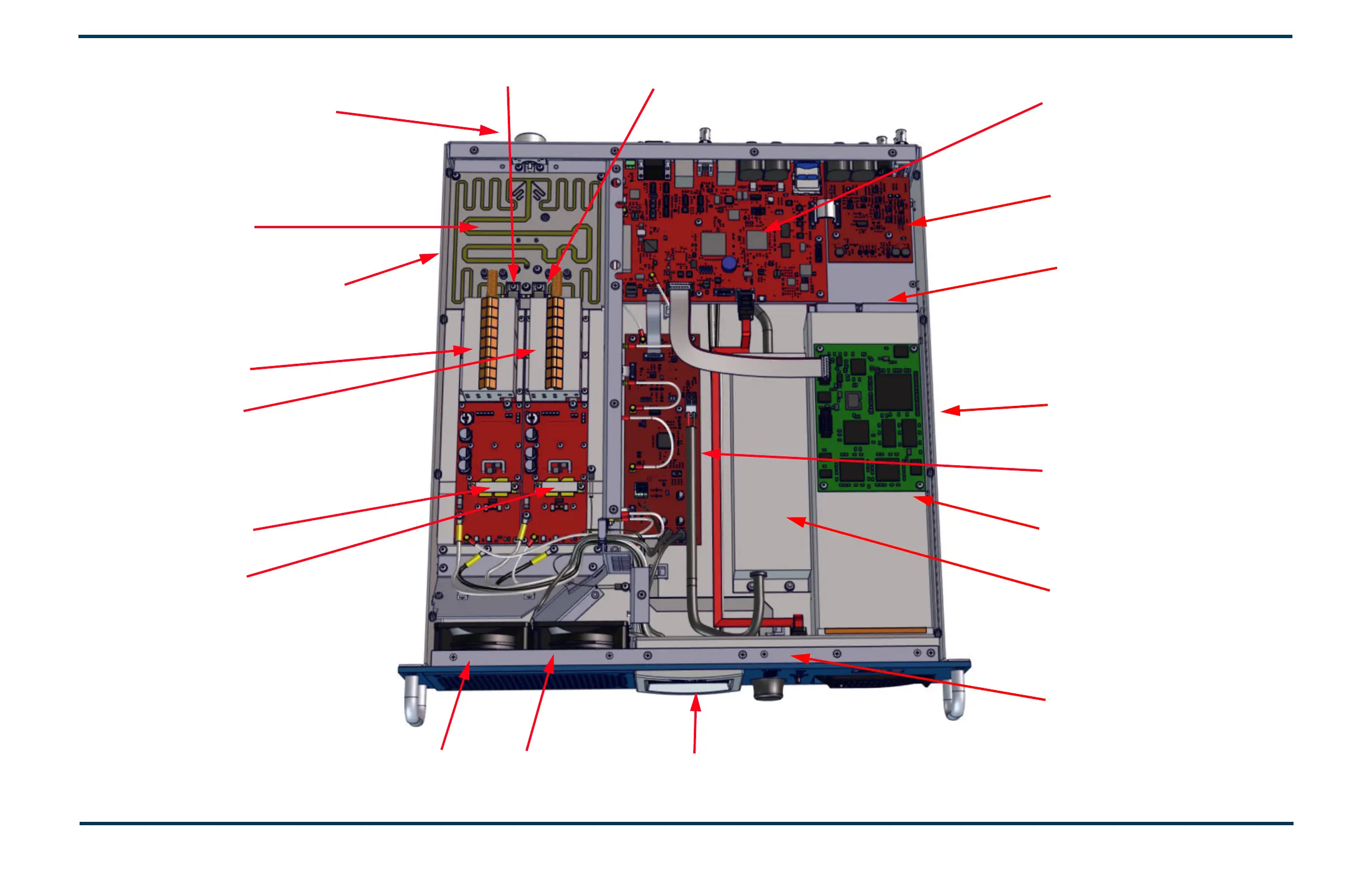

Figure MD-3: VX1.5/VX2 Transmitter (top view)
FRONT PANEL USER
INTERFACE PWB
(A5, located behind front panel)
ANALOG AUDIO PWB
(A2)
POWER SUPPLY INTERFACE PWB
(A4, located under panel)
ORBAN AUDIO PROCESSOR
(A14, optional)
POWER SUPPLY (3.5 kW)
(U3)
SYSTEM INTERFACE PWB
(A3)
EXCITER PWB
(A1)
12V POWER SUPPLY (U2)
(located under cover
PA PWB #1
(A7)
PA LPF PWB
(A9)
(located under shield)
DIRECTIONAL COUPLER BOTTOM PWB
(A11, part of assembly shown
(located underneath 2-Way Combiner PWB)
FRONT PANEL DISPLAY
(U1)
2-WAY COMBINER PWB
(A13)
TOP COVER REMOVED FOR CLARITY
FAN (B1)
FAN (B2)
PA PWB #2
(A8)
PA LPF PWB
(A10)
(located under shield)
REJECT RESISTOR (R2)
REJECT RESISTOR (R1)
RF OUTPUT CONNECTOR
(VX1.5/VX2 uses 7/16 DIN)
