NDC BenchMike Pro 2025 - BenchMike Pro Model 2050 Connector Drawing

2-6 BenchMike Pro Instruction Handbook: Installation

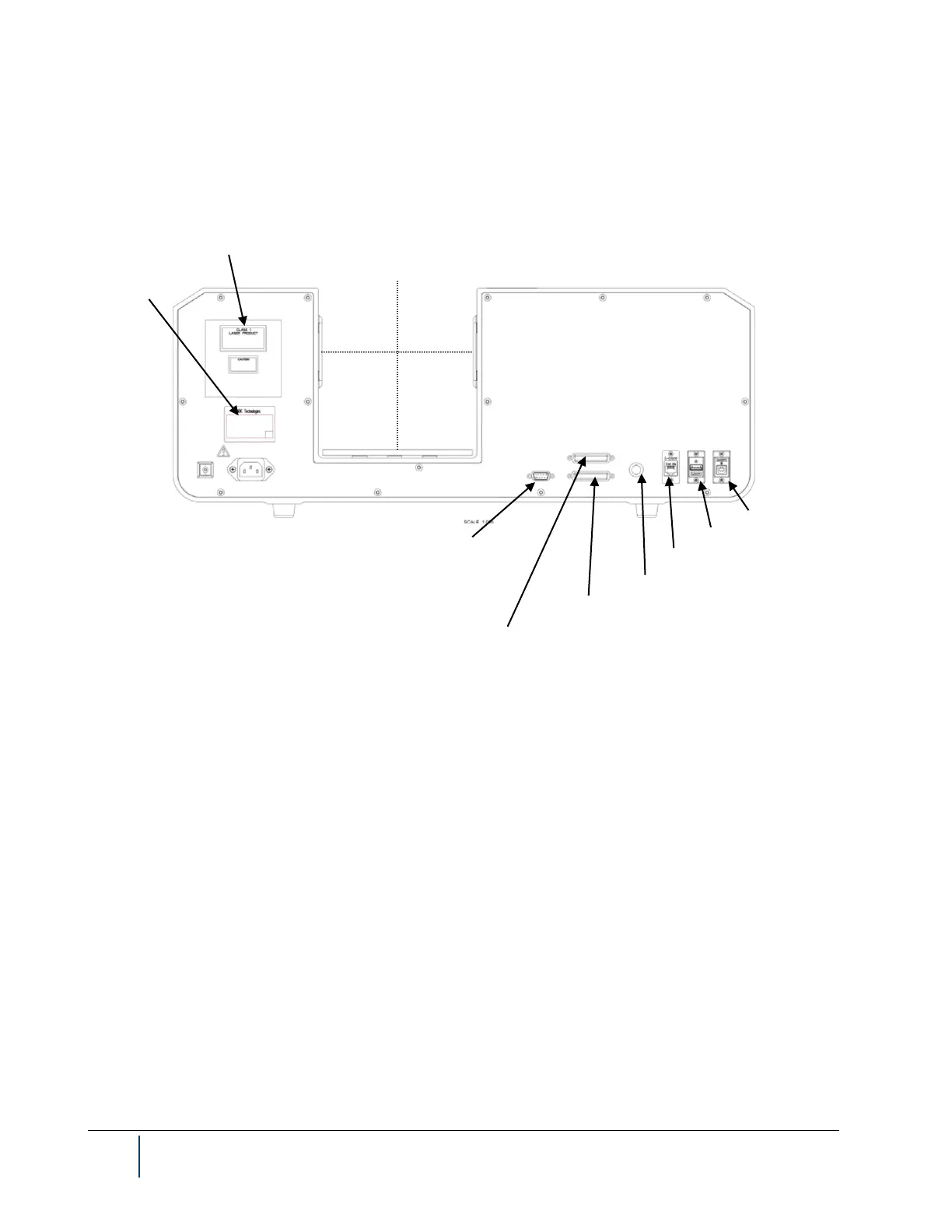

2.2.4 BenchMike Pro Model 2050 Connector Drawing
HEIGHT SCAN CENTER
DB-9 FEMALE
SERIAL 1
USB-B FEMALE SERIAL USB
LASER SAFETY LABEL
SERIAL TAG
PASSLINE
ETHERNET RJ
45 SOCKET
USB-A FEMALE PRINTER
DB-25 MALE I/O
BNC
DB-25 FEMALE FIXTURE
