SSA graphical user interface 37
Partition types, sizes, or layout
Software RAID information
Operating system device names or mount points
Performing a Diagnostics task
Procedure
1. Open SSA.
For more information, see "Using the SSA GUI."
2. Open the Diagnostics panel by doing one of the following:
o Select a device and click Diagnose in the quick navigation menu.
o Select an available device from the Home screen, and then click Diagnose under the available
options.
3. Select a report type.
For this example, use the Array Diagnostic Report selection.

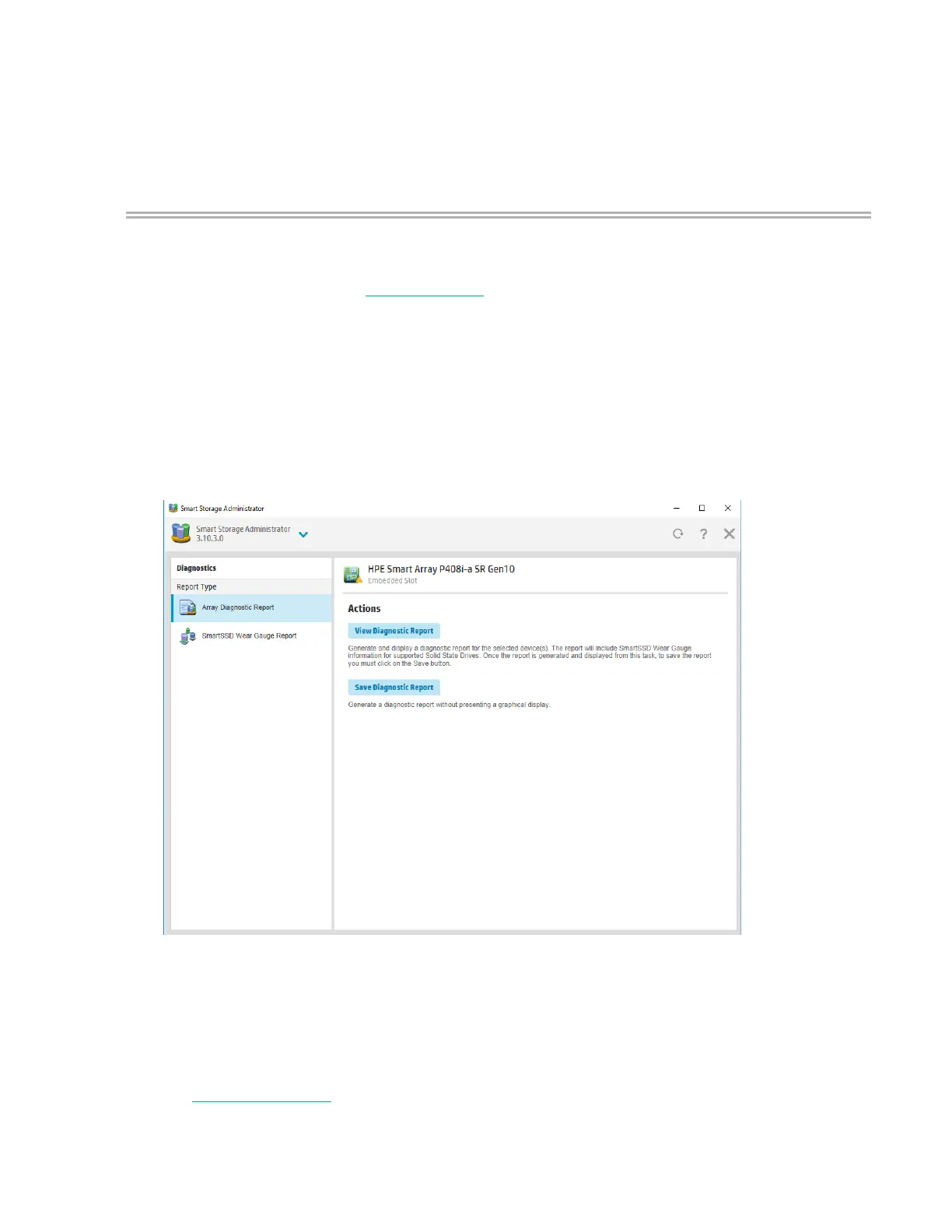

4. Select Array Diagnostic Report.
The Actions panel for Array Diagnostic Report appears.
5. Click one of the task buttons:
o If you click View Diagnostic Report, the report appears. When you are finished viewing the current
report, click Close or Save.
o If you click Save Diagnostic Report, wait for the report to generate, and then click Close Report or
Save Report.
For more information about reports and viewing them in a browser, see the following sections:
"Reported information"
