NEC MC453X User Manual

46
5. Using On-Screen Menu

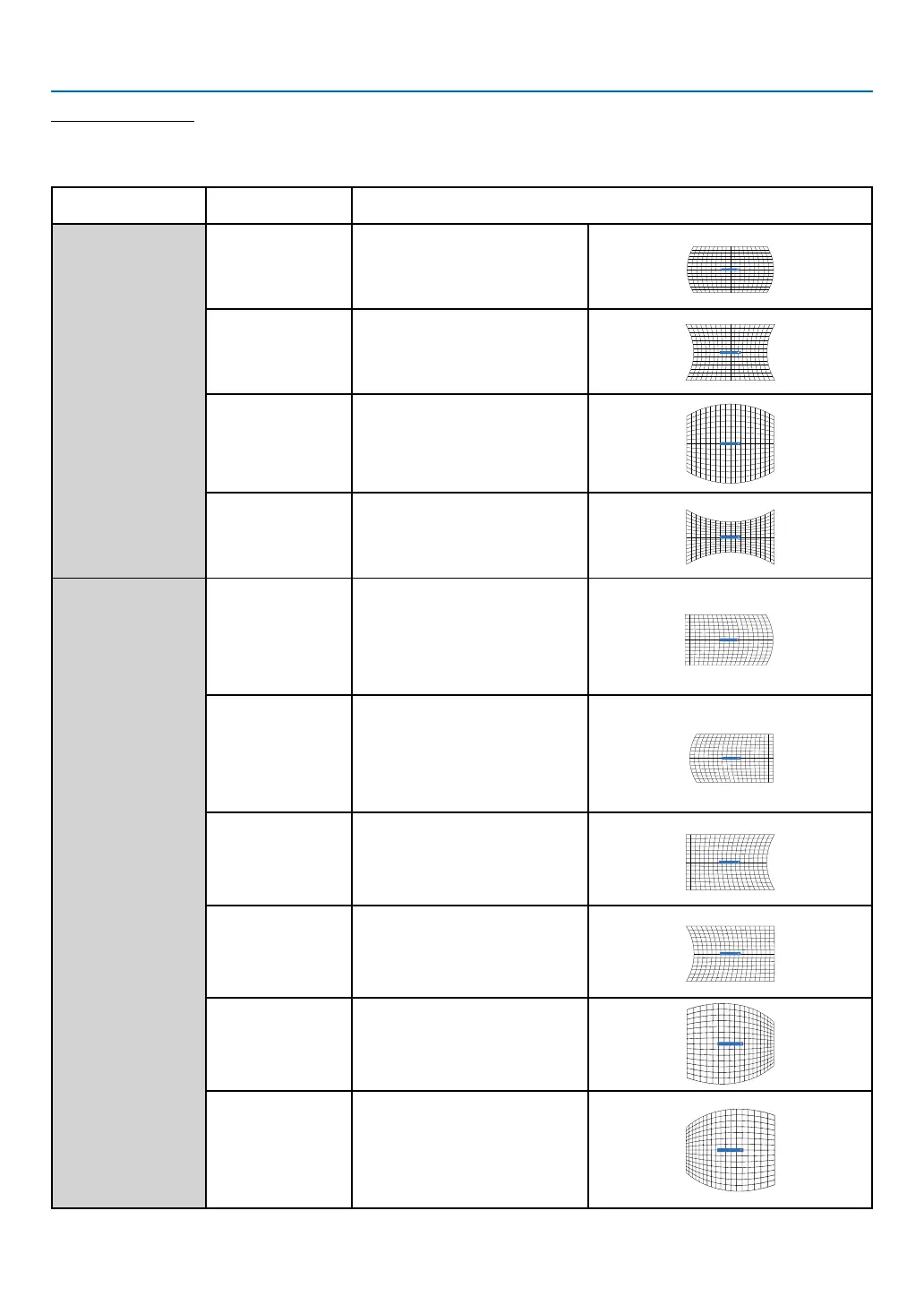

Curved correction
Select this function to correct the projected images with linearity uneven or vertical and horizontal bending deformation.
press ▲ ▼
▶
▶ button to adjust options.
Item Operation Adjustment
Curved correction
X/Y gain
Press

Extend left and right vertically
Curved cerrection X/Y gain
Press

Sag left and right vertically
Curved cerrection X/Y gain
Press

Reach up and down horizontally
Curved cerrection X/Y gain
Press
▼
Sag up and down horizontally
Curved cerrection X/Y gain
Curved correction
X offset
Press

Correct the vertical lins on the
left.
Expand the top an and bottom
while maintaining the central
area
Curved cerrection X Offset
Press

Correct the vertical lins on the
right.
Expand the top an and bottom
while maintaining the central
area
Curved cerrection X Offset
Press

Correct the horizontal line on
the left.
Expand the top and bottom
while maintaining the central
area.
Curved cerrection X Offset
Press

Correct the horizontal line on
the right.
Expand the top and bottom
while maintaining the central
area.
Curved cerrection X Offset
Press

Correct the horizontal line on
the left.
Expand the top and bottom
while maintaining the central
area.
Curved cerrection X Offset
Press

Correct the horizontal line to
the right.
Expand the top and bottom
while maintaining the central
area.
Curved cerrection X Offset

NEC MC453X Specifications

General

Native aspect ratio	4:3
Projection distance	0.9 - 10.9 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	16 W
Number of built-in speakers	1
Placement	Ceiling, Floor
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	10000 h
Service life of light source (economic mode)	20000 h
Built-in display	-
Focus	Manual
Throw ratio	1.5 - 1.8:1
Focal length range	19.158 - 23.018 mm
Aperture range (F-F)	1.6 - 1.76
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	320 W
Power consumption (standby)	0.5 W
Power consumption (typical)	305 W
Power consumption (economy mode)	215 W
Power consumption (network standby)	2 W
Noise level	37 dB
Certification	UL, FCC Part15 Class B, CAN/CSA, ICES-003 Issue 6
Noise level (economic mode)	29 dB
Full HD	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	Not supported
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	261 mm
Width	345 mm
Height	108.4 mm
Weight	3300 g
Package depth	390 mm
Package width	450 mm
Package height	200 mm
Package weight	4700 g
