NEC MH240 - KEYS AND PARTS

6
o KEYS AND PARTS
The phone has the following keys and parts.
No.
PARTS
REMARK
(1)
Info LED
Display charging status
and receiving a call
(2)
Ear Speaker
-
(3)
USB Connector
Charge the power via AC
adapter
(4)
Display
Monochrome LCD,
120×90 pixels
(5)
Soft Keys
Display soft keys depend
on the phone status
(6)
Multi Function Keys
Assign various function
by System
(7)
OK Key *Note
Select Middle soft key
(8)
UP Key
Select a value from the
list and move the cursor
in edit mode
(9)
DOWN Key
(10)
LEFT Key
(11)
RIGHT Key
(12)
TRANSFER Key
*Note
Transfer the ongoing call
or select Left soft key
(13)
HOLD/CLEAR Key
*Note
Place the ongoing call in
hold, return to the
previous screen, delete
input character/digit or
select Right soft key
(14)
CONFERENCE Key
*Note
Enter the conference
mode (3-way call)
(15)
MENU Key *Note
Display Menu screen
(16)
OFF HOOK Key
*Note
Make/answer a call
(17)
POWER/ON HOOK
Key
Terminate an active call,
power on/off the phone or
exit a menu without
making changes
(18)
Headset Connector
Connect headset had
JEITA RC-5240 plug or
conversion cable
(19)
Dial Pad *Note
Input dial number or
characters
(20)
Microphone
-
(21)
Strap Hole
Attach hand strap
(22)
Speaker
Ring when receiving a
call or listen to voice
when speaker monitor
(23)
Battery Cover
-
* Note In case that key touch tone is
enabled, you hear key touch tone
twice when you press and hold the
key for about 2 seconds.

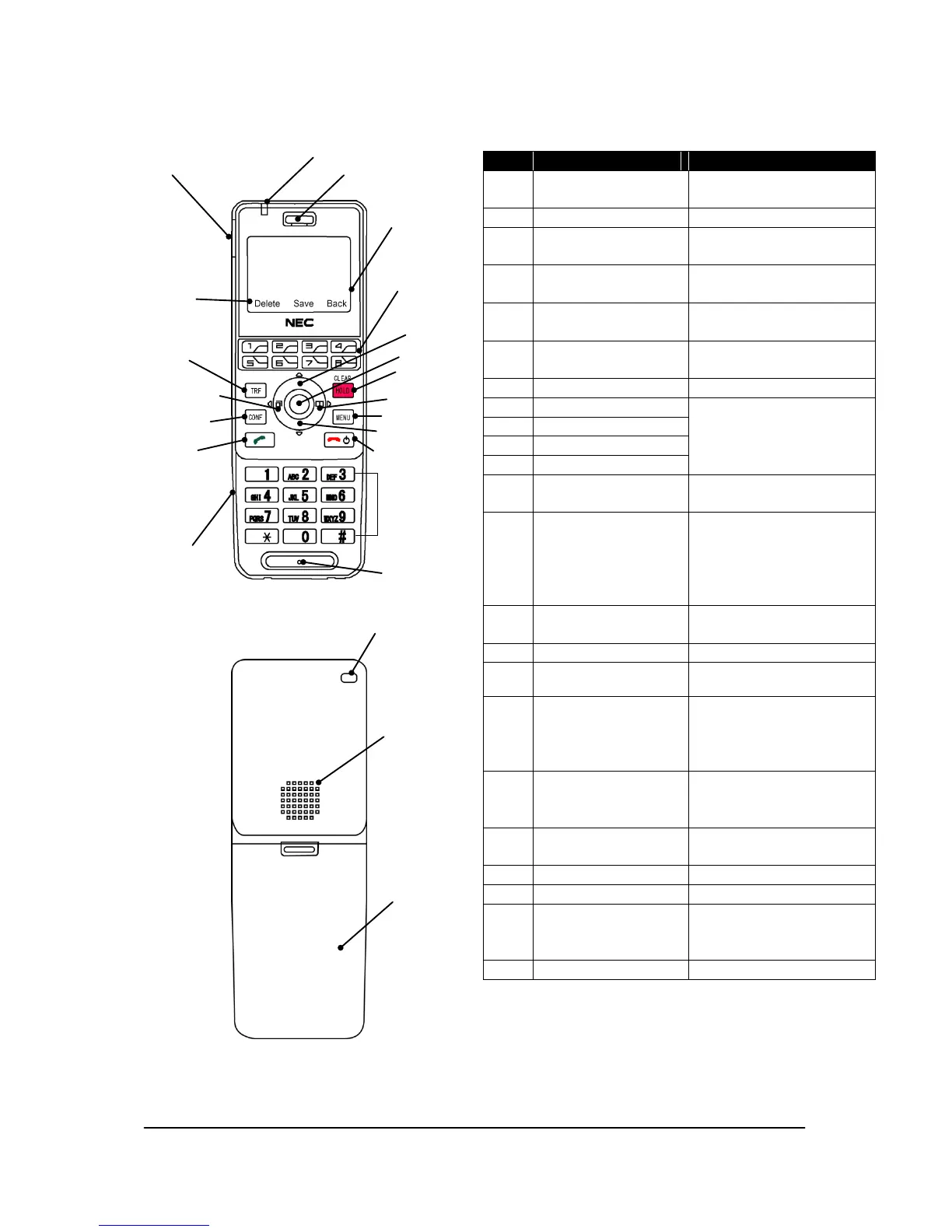

(1)Info LED
(2)Ear Speaker
(3)USB Connector
(4)Display
(6)Multi Function Keys
(7)OK Key
(8)UP Key
(13)HOLD/
CLEAR Key
(12)TRANSFER Key
(11)RIGHT Key
(10)LEFT Key
(15)MENU Key
(9)DOWN Key
(14)CONFERENCE Key
(16)OFF HOOK Key
(17)POWER/
ON HOOK Key
(19)Dial Pad
(18)Headset Connector
(20)Microphone
(21)Strap Hole
(22)Speaker
(23)Battery Cover
(5)Soft Keys
