Controlling the Monitor via RS-232C
This LCD monitor can be controlled by connecting a personal computer with an RS-232C terminal.
Functions that can be controlled by a personal computer are:
• Power ON or standby.
• Switching between input signals.
• Sound Mute ON or OFF.
Connection

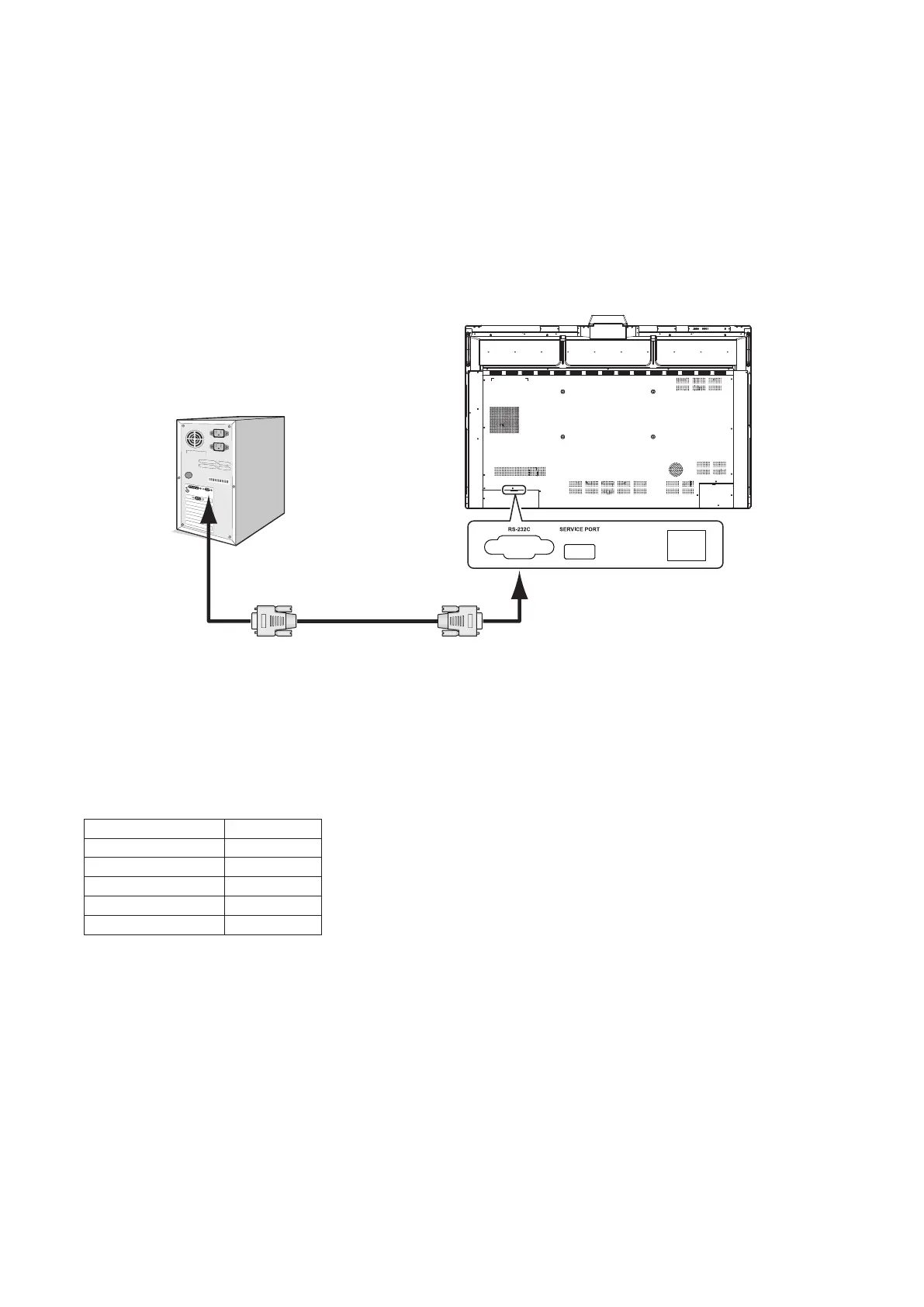

LCD Monitor + computer.
• Please turn off the monitor’s main power when connecting a computer to the monitor.
• Please turn on the connecting computer rst then turn on the monitor’s main power.
If you turn on the computer and monitor in reverse order, the com port may not work.
RS-232C Cable
Computer
NOTE:
• If your computer is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required. Contact your
supplier for details.
• For the pin assignment, please see “2) RS-232C input/output” on page 33.
To control the monitor via commands sent from a computer connected with an RS-232C cable, please use the control
command. Instructions for the control command can be found in the Control Command Diagram (see on the next page).
1) Interface
PROTOCOL RS-232C
BAUD RATE 9600 [bps]
DATA LENGTH 8 [bits]
PARITY NONE
STOP BIT 1 [bit]
FLOW CONTROL NONE
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
The reverse type cable (null modem cable) (not included) should be used for RS-232C control.
