English-33
English

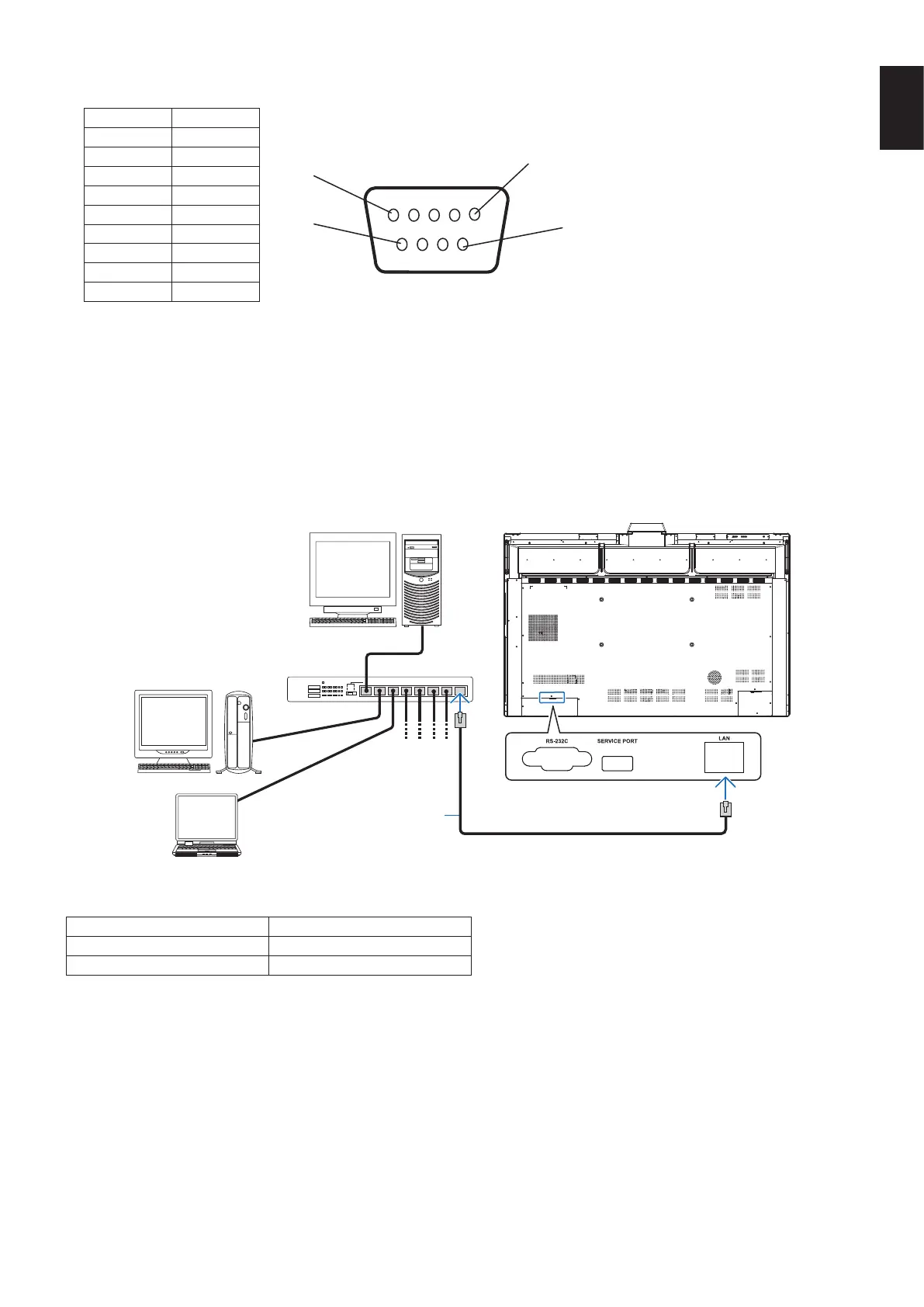

2) PIN ASSIGNMENT
RS-232C input/output
Pin No Name
1
6
5
9
D-Sub 9-pin (Monitor side)
1 NC
2 RXD
3 TXD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
Controlling the Monitor via LAN
Connecting to a Network
This LCD monitor can be controlled by connecting a personal computer with a LAN port.
To use a LAN connection, you are required to assign an IP address. The monitor will obtain an IP address automatically when
connected to a DHCP network.
Example of LAN connection:
Server
Hub
LAN cable (not supplied)
NOTE: Use a category 5 or higher LAN cable.
Interface
PROTOCOL TCP
PORT NUMBER 7142
COMMUNICATION SPEED AUTO setting (10/100Mbps)
To Next Page
