Projector Adjustment and Connecting
3-9. Connecting the Various Control Terminal
For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).
PC control terminal (RS-232) Use this terminal when controlling the projector in serial connection from a PC. Use a retail
RS-232C straight cable for the connection between the projector and the computer.
Ethernet port (LAN) Use this port when controlling the projector in LAN connection from a PC or a cinema
server. Use a retail LAN cable (10/100Base-T) for the connection between the projector and
the computer after checking with your network administrator.

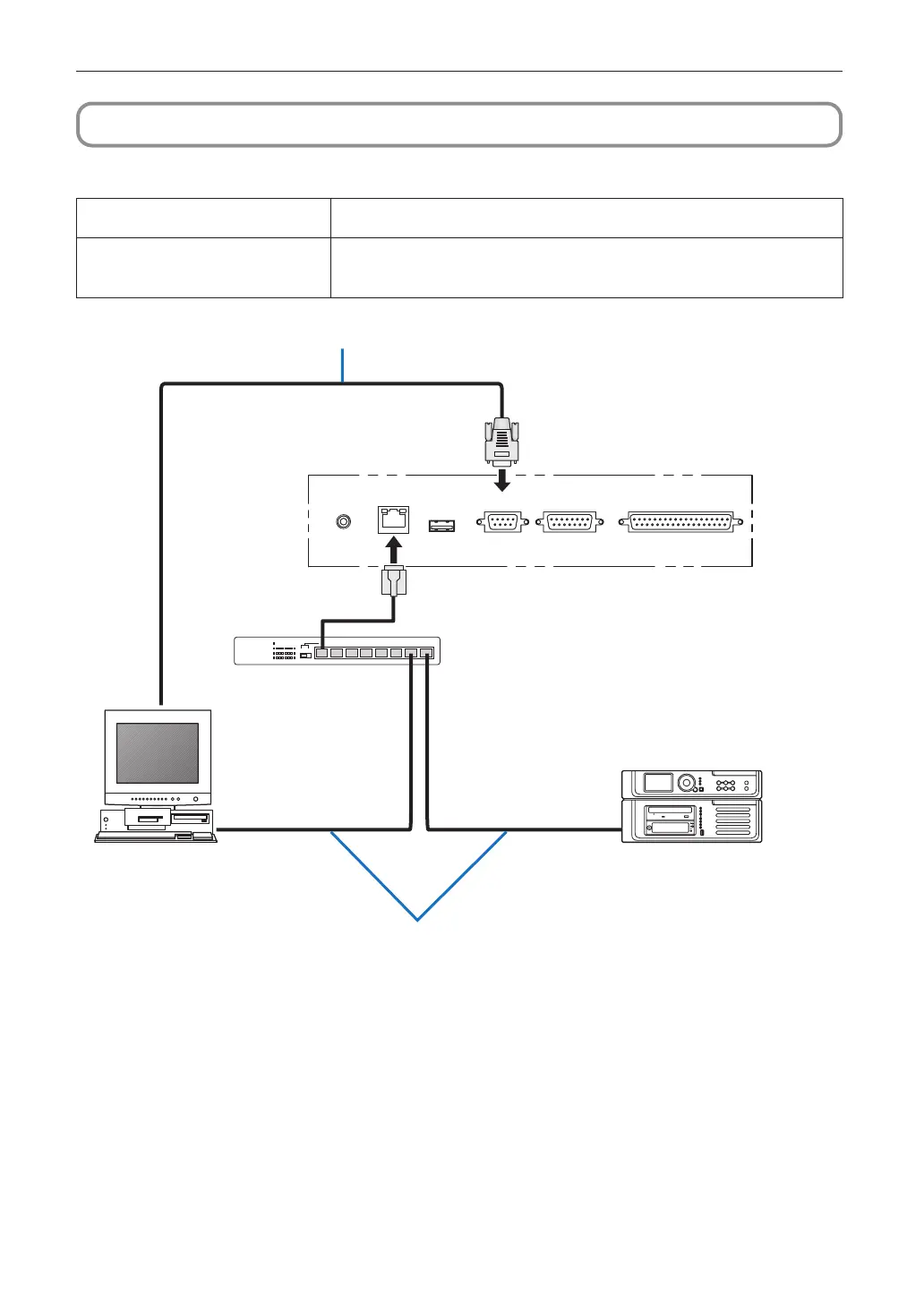

GP I/O3DRS-232
USB
REMOTE
LAN
RS-232C
PC
Cinema server
LAN cable
Network hub/Router
This completes the adjustment and connection of the projector. Next, set up the projector from the DCC. Refer to the “Digital Cin-
ema Communicator Installation Manual” for the procedure.
